16
Spot centering adjustment
Adjust the light spot to the horizontal center position of the nozzle.
Adjustment method: power on the HWS980 galvanometer handheld welding system
and then set the "Width" to 0mm on touch screen → click "advanced parameters"
→ enter the password "2000" → click "ENTER" → set the "optical core offset"
parameter. When the "optical core offset" parameter is set to be small, the
optical core is shifted to the right; when the "optical core offset" parameter
is set to be large, the optical core is shifted to the left; set appropriate
parameters so that the optical core is in the center.

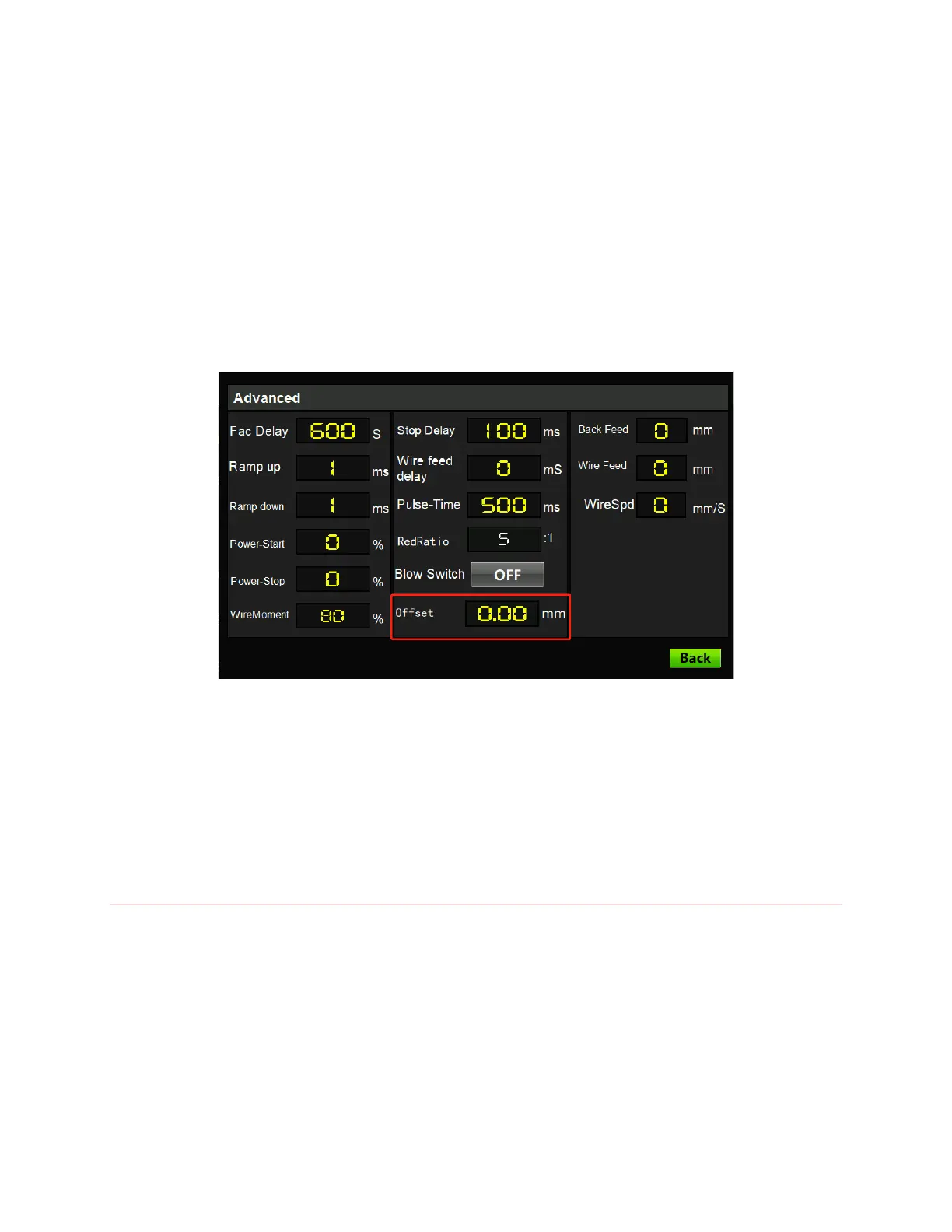

Figure 8 Adjusting the optical core offset parameters
Cleaning and maintenance
Welding head cleaning and maintenance
When the welding head is used, a layer of black ash is attached to the
copper nozzle. This is the spark sputtering after the metal is heated, and
then attaches to the nozzle. There is also some dust in the air. After use,
