34
and the welding workpiece must be in contact, and the light can be emitted after
pressing the light switch of the hand-held welding head.

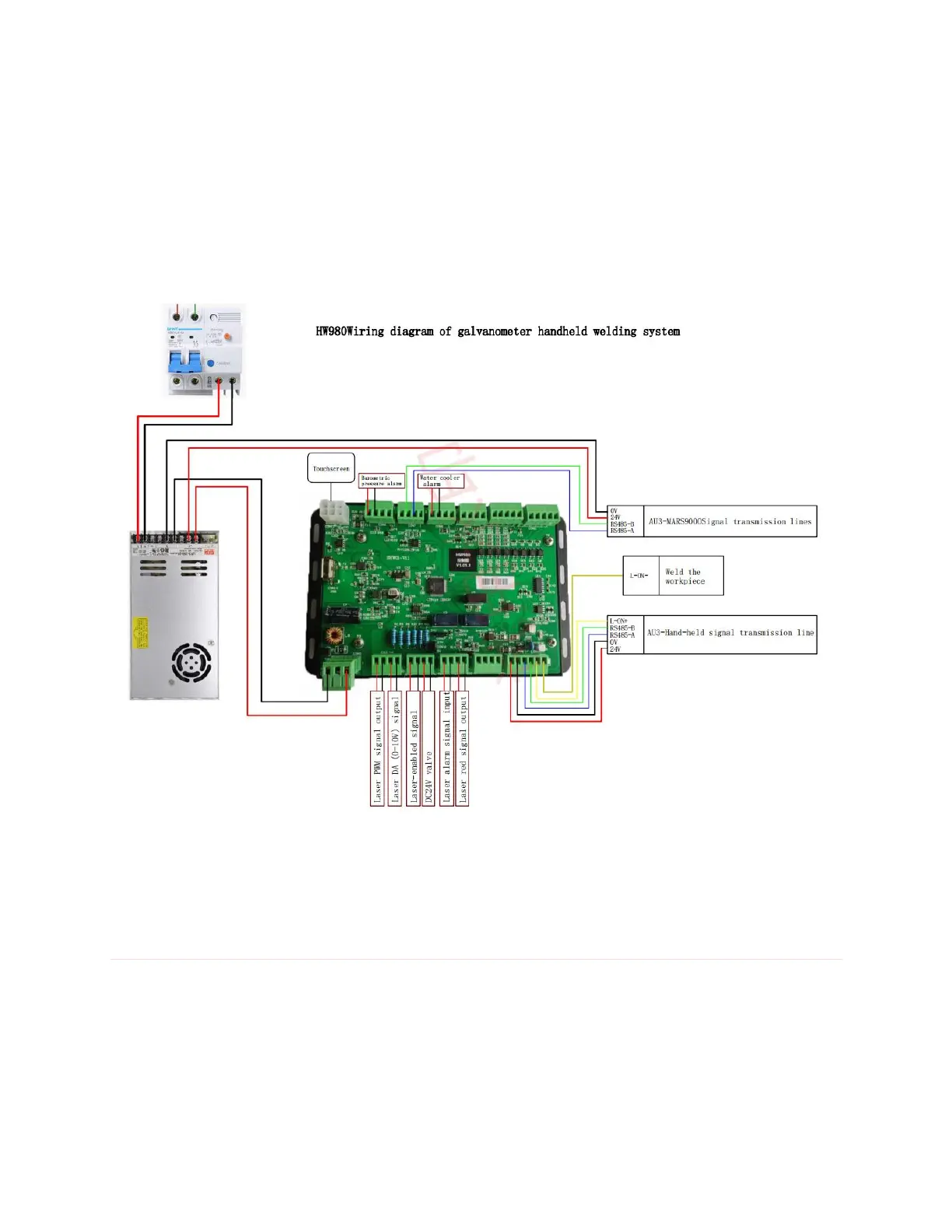

1.3 Controller wiring diagram
System wiring diagram
2、Main interface description
2.1Homepage
After the system is powered on and initialized, the welding work
interface is entered by default. Click the "Home" button to enter the home
