Aube Technologies TH141A-HC-28 User Manual

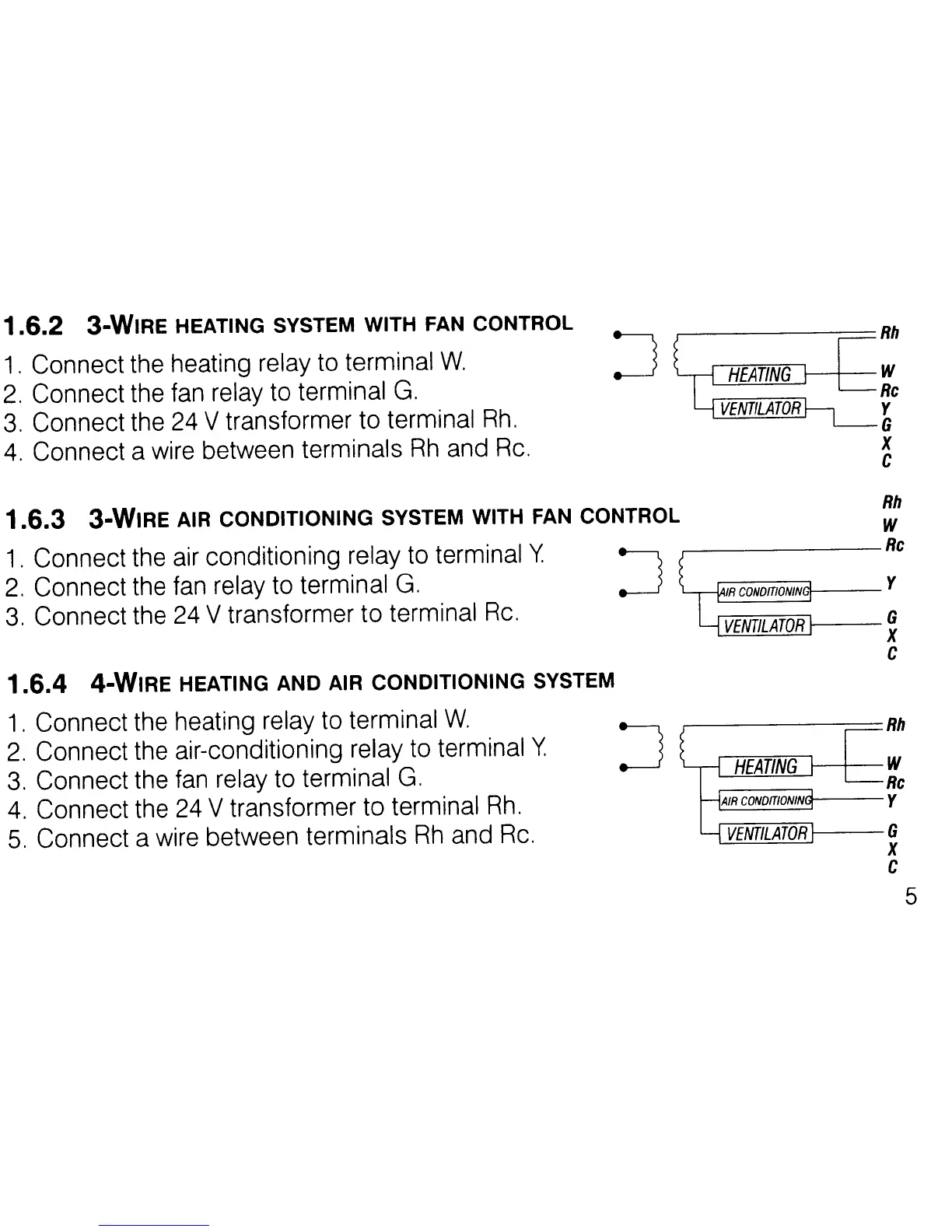

1.6.2 3·WIRE HEATING SYSTEM WITH FAN CONTROL
1. Connect the heating relay to terminal W.
2. Connect the fan relay to terminal G.
3. Connect the 24 V transformer to terminal Rh.
4. Connect a wire between terminals Rh and Rc.
r------;:::=:== Rh
'-r---I HEATING 1----+-W
'---Rc
VENTILATOR y
'---G
X
C
r------;:::=:== Rh
'-r---I: HEATING :1----+- W
'---Rc
-1AIR CONDfTlONIN'UJ~.J -- y
-l VENTILATOR 11---- G
X
c
5
1.6.3 3·WIRE AIR CONDITIONING SYSTEM WITH FAN CONTROL
1. Connect the air conditioning relay to terminal Y l
2. Connect the fan relay to terminal G. .-J
3. Connect the 24 V transformer to terminal Rc.
1.6.4 4·WIRE HEATING AND AIR CONDITIONING SYSTEM
1. Connect the heating relay to terminal W.
2. Connect the air-conditioning relay to terminal Y. :J
3. Connect the fan relay to terminal G.
4. Connect the 24 V transformer to terminal Rh.
5. Connect a wire between terminals Rh and Rc.
Rh
W
,..-------- Rc
~/R CONDfTlONINbl--- Y
VENTILATOR 1---- ~
C

Aube Technologies TH141A-HC-28 Specifications

General

Brand	Aube Technologies
Model	TH141A-HC-28
Category	Thermostat
Language	English
