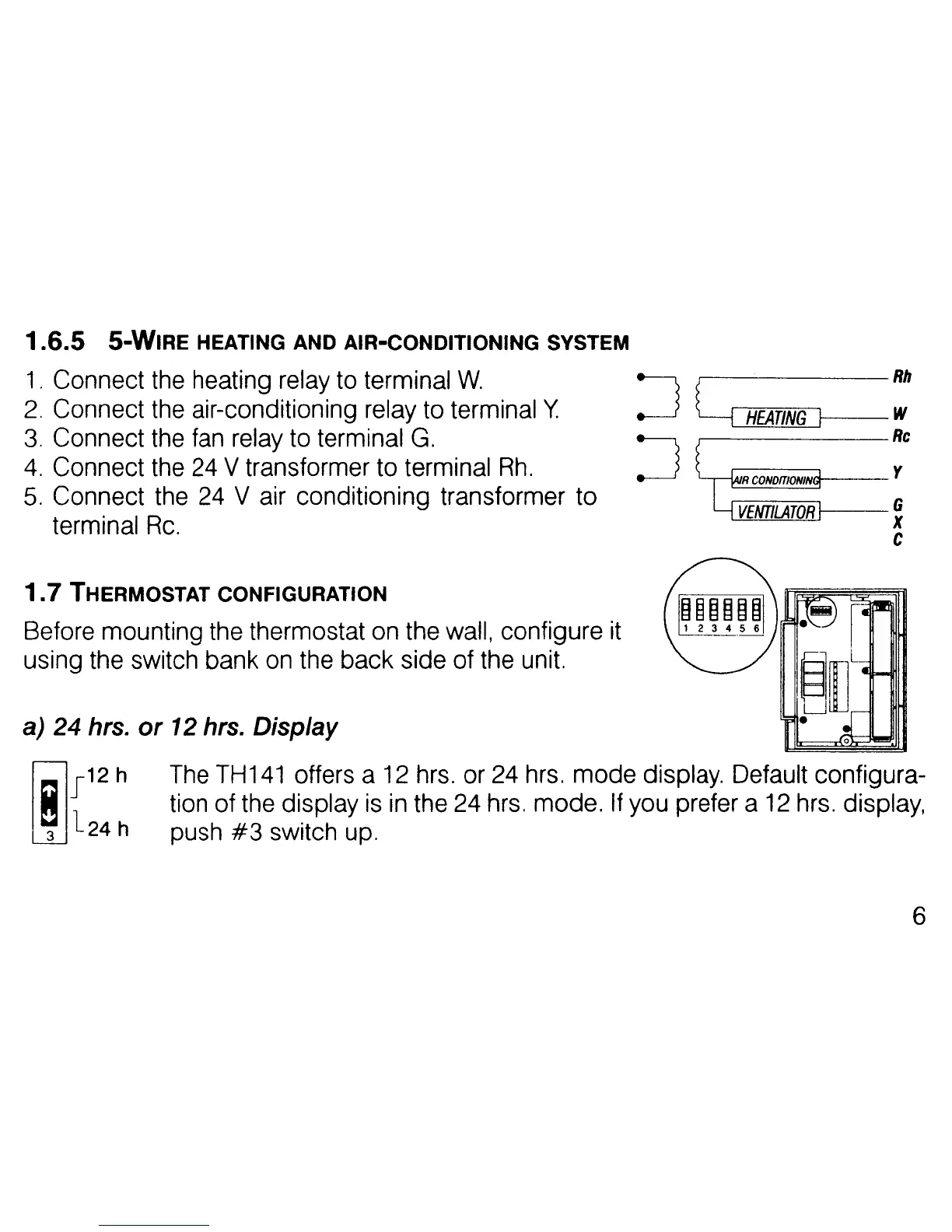

1.6.5 5-WIRE HEATING AND AIR-CONDITIONING SYSTEM
1. Connect the heating relay to terminal W.
2. Connect the air-conditioning relay to terminal Y
3. Connect the fan relay to terminal G.
4. Connect the 24 V transformer to terminal Rh.
5. Connect the 24 V air conditioning transformer to
terminal
Rc.
r--~----Rh
~ HEATING 1-- w
r-------Rc
1.7 THERMOSTAT CONFIGURATION
Before mounting the thermostat on the wall, configure it
using the switch bank on the back side of the unit.
a) 24 hrs. or 12 hrs. Display
o
H J12 h
3 1
24
h
The TH141 offers a 12 hrs. or 24 hrs. mode display. Default configura-
tion of the display is in the 24 hrs. mode. If you prefer a 12 hrs. display,
push
#3 switch up.
6
