Installation Manual 10 Document #: LTRT-70113
Mediant 2000
Item # Label Component Description
6
- Reset button.
Note: This button is currently reserved for future use.
7 T1/E1 STATUS
E1/T1 Trunk Status LEDs (for each of the 9-16 trunks).
8
PWR and
SWAP READY
Blade slot status LEDs.
9
- Power and Fan LEDs.
10
- Blade latches.
11 -
1610-Series blade (e.g., 16-trunk configuration) in Slot #1.
12
- Available slot (Slot #2) for an optional, third-party CPU blade. This blade
can be used for general applications such as a gatekeeper, softswitch,
and application server. The following CPU blades are compliant with the
chassis:
Sun™: CP2080, PMC-233 (Ramix™ on-board disk), and Rear
Transition Module (RTM)
Intel™ ZT5515B-1A with 40 GB on-board disk and RTM (ZT4807)
For removing and inserting the optional CPU blade, refer to the
directions accompanying it.
2.1.2 Rear Panel
The device houses a single Rear Transition Module (RTM-1610) in Slot #1 (the lower slot)
on the rear panel. The RTM provides I/O configuration, where both PSTN trunks and
Ethernet interfaces are located on a passive rear I/O module.
Note: The RS-232 interface port is available only for blades supporting 1-, 2-, and 4-
span configurations.

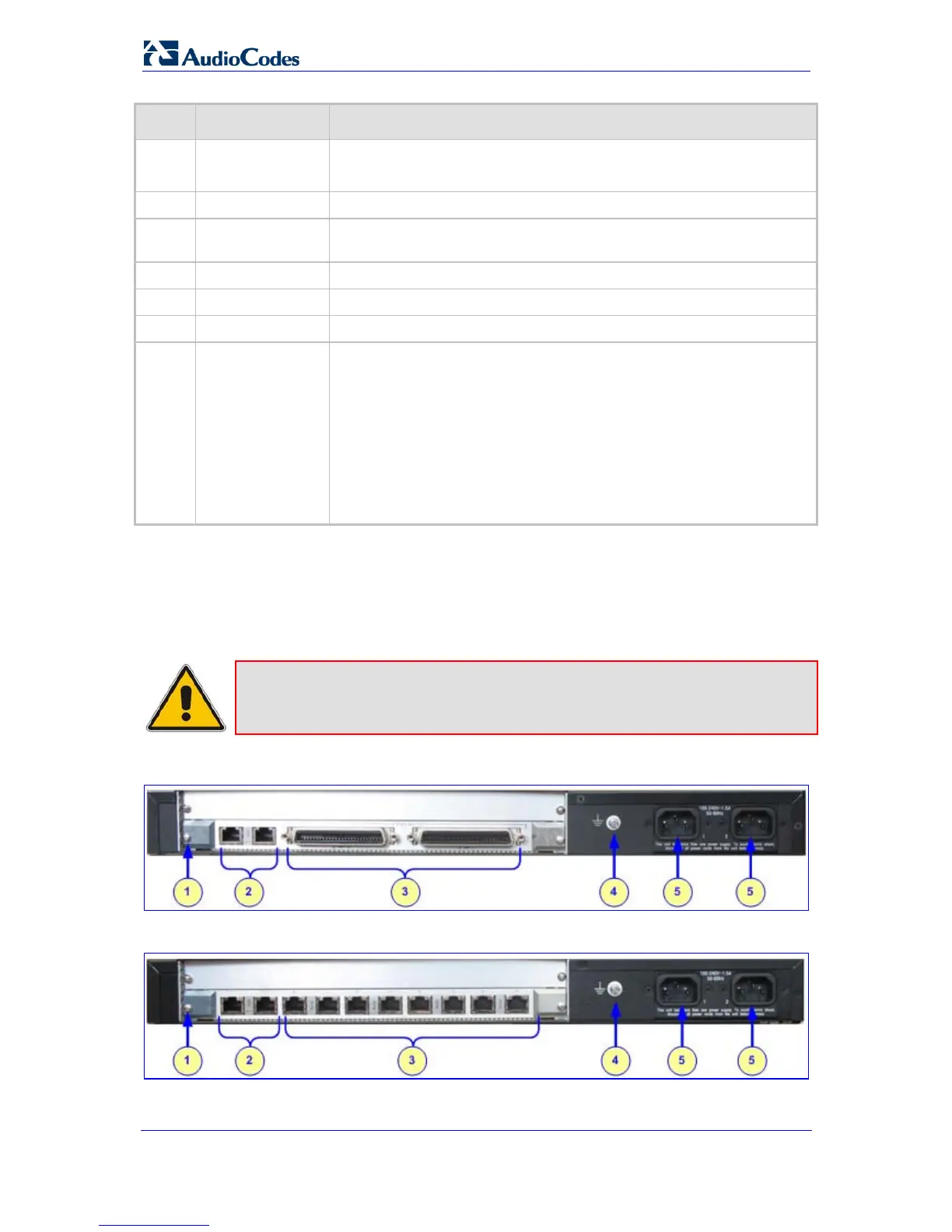

Figure 2-2: Rear Panel of RTM-1610 Supporting 16 Trunks and Dual AC Power
Figure 2-3: Rear Panel of RTM-1610 Supporting 8 Trunks and Dual AC Power H/W Configuration
