Installation Manual 20 Document #: LTRT-70113
Mediant 2000
¾ To connect power using a DC terminal block screw connector:
1. Create a DC cable by inserting two 14-16 AWG insulated wires into the supplied
terminal block adaptor (refer to the figure below), and then fasten the two screws, each
one located directly above each wire.
2. Connect the two insulated wires to the correct DC power supply. Ensure that the
connections to the DC power supply maintain the correct polarity.
3. Insert the terminal block into the DC inlet located on the device's rear panel.

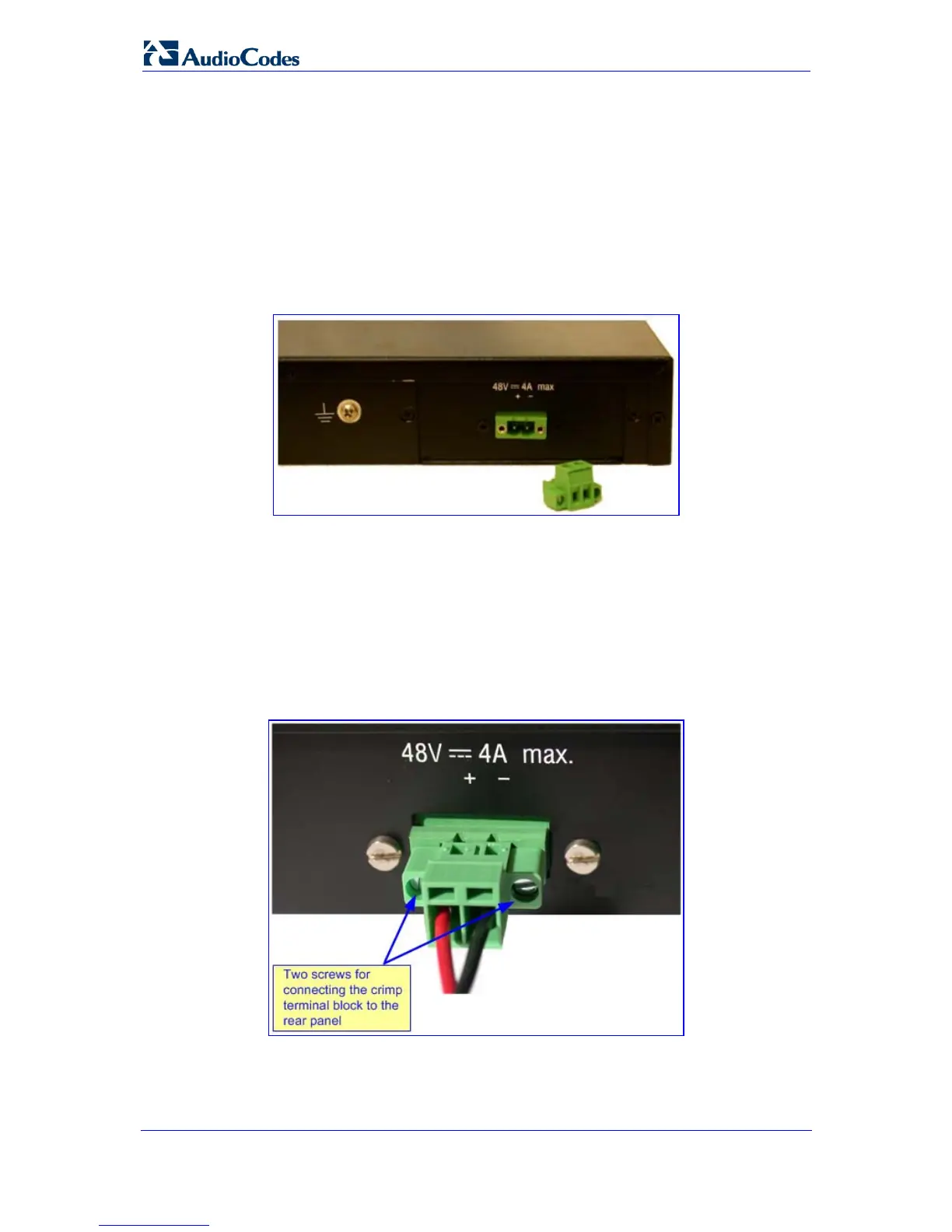

Figure 2-11: DC Power Terminal Block Screw Connector
¾ To connect power using a DC terminal block crimp connector:
1. Remove the DC adaptor (screw connection type) that is attached to the device's rear
panel.
2. Connect the two insulated wires to the correct DC power supply. Ensure that the
connections to the DC power supply maintain the correct polarity.
3. Insert the terminal block into the DC inlet located on the device's rear panel.
Figure 2-12: DC Power Terminal Block Crimp Connector
