Hardware Installation Manual 22 Document #: LTRT-70116
Mediant 2000
ļ To connect the 16-span device using 50-pin Telco connectors:
1. On the rear panel, attach the trunk cable (of at least 26 AWG UTP) 50-pin male Telco
connector to the 50-pin female Telco port (labeled TRUNKS 1-8).
2. Connect the other end of the trunk cable to the PBX / PSTN switch.
3. Repeat steps 1 and 2 for the second trunk cable, but this time, connect it to the
connector labeled TRUNKS 9-16.

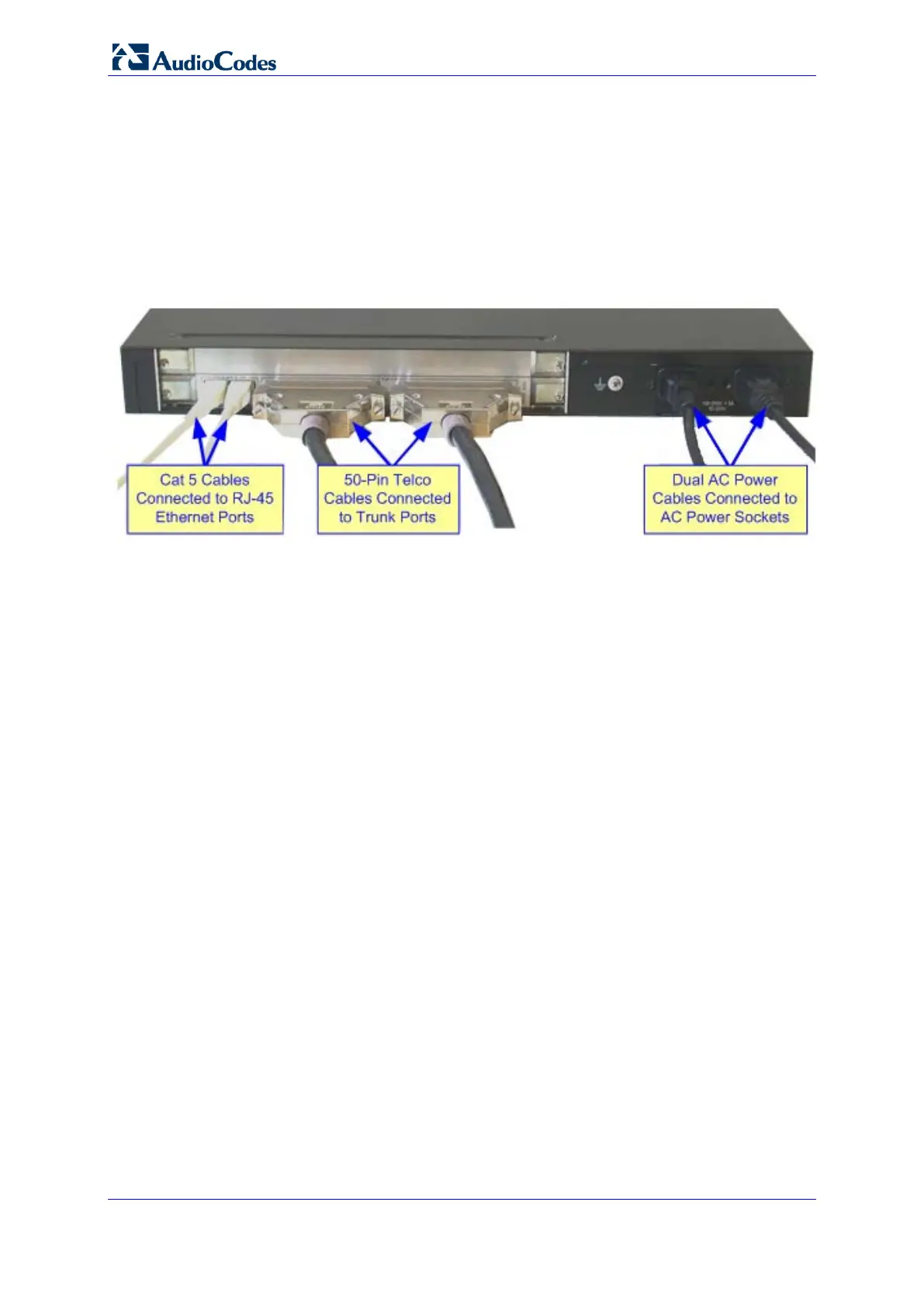

The figure below displays a cabled device for 16 trunks (and dual AC power).
Figure 5-3: Cabling for 16-Span Device using Telco Connectors
