Version 6.4 27 October 2011
Hardware Installation Manual 5. Cabling the Device
5.5.2.2 Connecting to DC Power using the DC Terminal Block Crimp
The procedure below describes how to connect to DC power using the DC terminal block
crimp connector.
ļ To connect DC power using a DC terminal block crimp connector:
1. Remove the DC adaptor (screw connection type) that is attached to the device's rear
panel.
2. Connect the two insulated wires to the correct DC power supply. Ensure that the
connections to the DC power supply maintain the correct polarity.
3. Insert the terminal block into the DC inlet located on the device's rear panel.

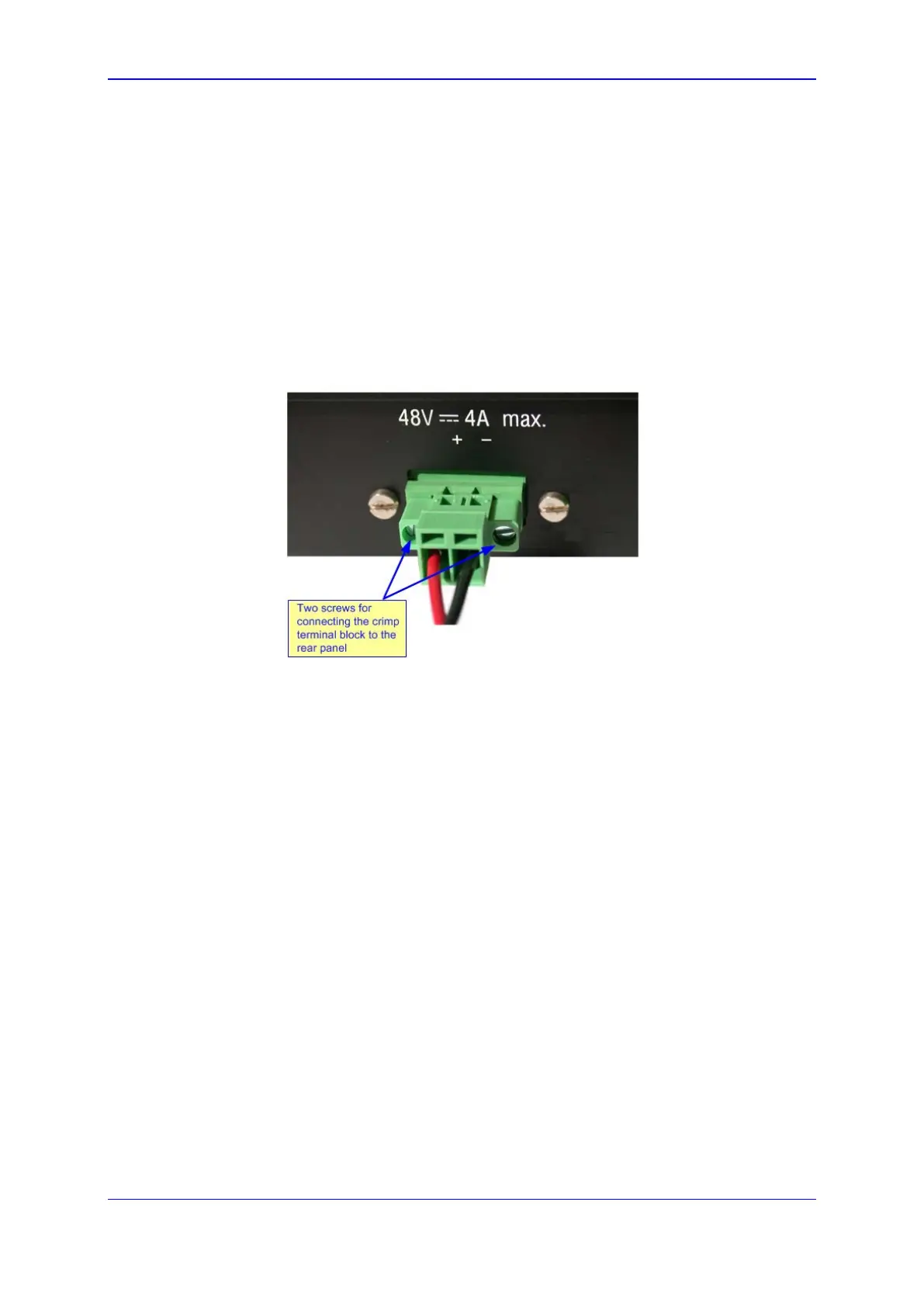

Figure 5-8: DC Power Terminal Block Crimp Connector
