Hardware Installation Manual 18 Document #: LTRT-94720
Mediant 3000
A chassis slot assignment example for Mediant 3000 Simplex with TP-6310 is shown in the
figure below:

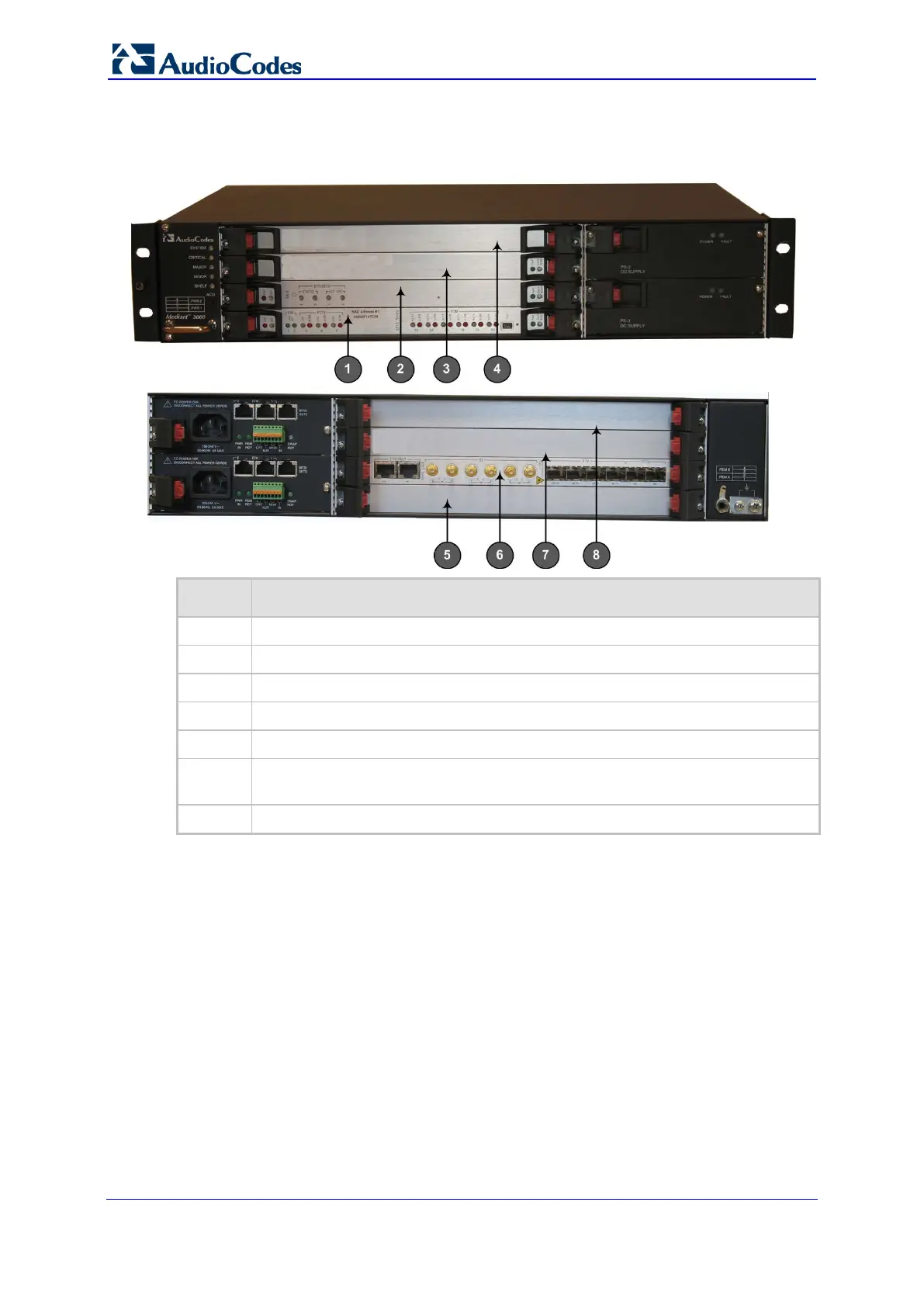

Figure 3-3: Slot Assignment for Mediant 3000 Simplex with TP-6310 Blade
Item # Description
1
Front panel Slot #1 - TP-6310 blade
2
Front panel Slot #2 - SA/M3K blade
3
Front panel Slot #3 - Slot covered with a blank panel
4
Front panel Slot #4 - Slot covered with a blank panel
5, 8
Blank panels covering unoccupied slots
6
Rear panel Slot #2 - RTM-6310 providing STM-1/OC-3 or T3 interfaces and
dual Gigabit Ethernet (GbE) interfaces
7
Rear panel Slot #3 - Slot covered with a blank panel
