5.7.1 Connecting to AC Power Supply
The device is supplied with two PEM modules. Each PEM module is equipped with an AC
power inlet (IEC 60320 type).
Notes:
• For power redundancy, connect each PEM module to a different AC supply circuit.
• For power redundancy, ensure that the two AC power sources have the same ground
potential.
• To power down the device, disconnect both AC power cords from the PEM modules.
To connect the device to an AC power supply:
1. Plug the AC power cord (not supplied) into the AC power inlet located on the PEM
module.
2. Plug the other end of the power cord to an AC electrical outlet.
3. For power redundancy, repeat steps 1 through 2 for the second PEM.

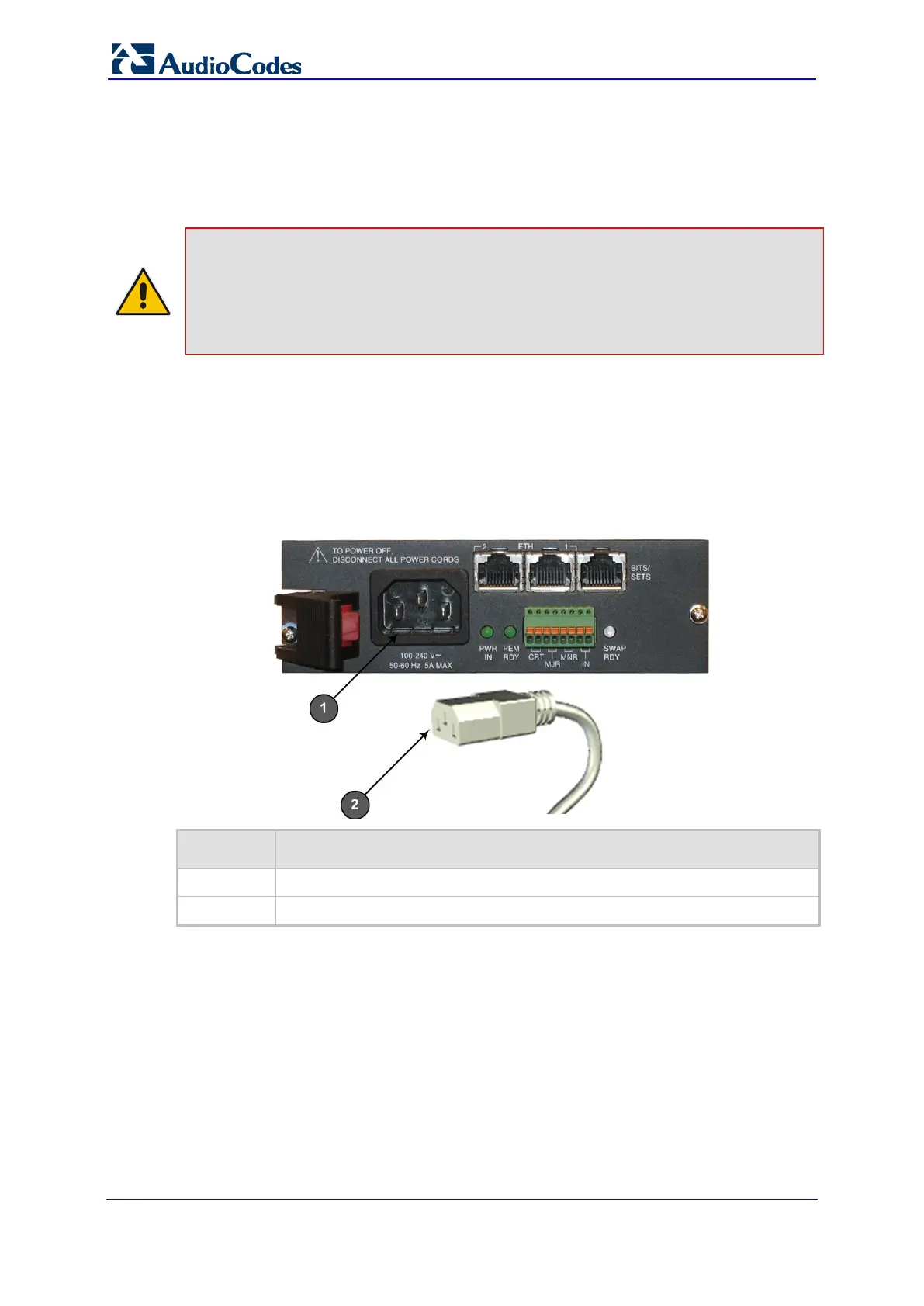

Figure 5-19: Connecting AC Power Cord
Item # Description
1
AC power inlet
2
IEC 60320 Type AC power plug outlet
