AudioCodes Mediant 3000

Version 7.0 73 Mediant 3000
Hardware Installation Manual 5. Cabling the Device
When power is received, the PWR IN LED is lit (green).

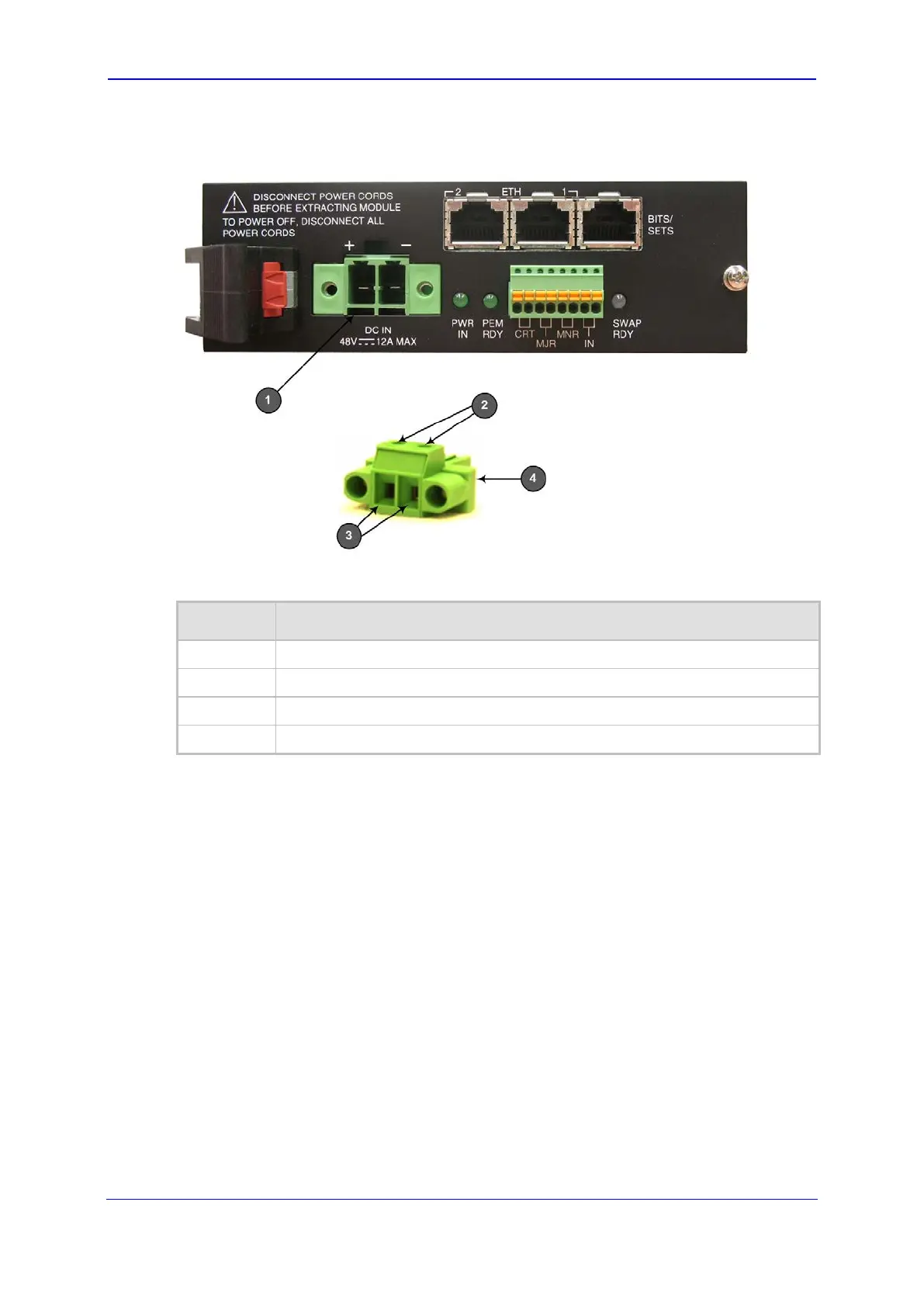

Figure 5-21: DC Power Connector with and without Screw-type Terminal Block Connector
Item # Description
1
PEM power socket (without removed terminal block)
2
Terminal-block screws for clamping wires to terminal
3
Screw terminal plug for DC power wires
4
DC Screw-type terminal block removed from PEM power socket
