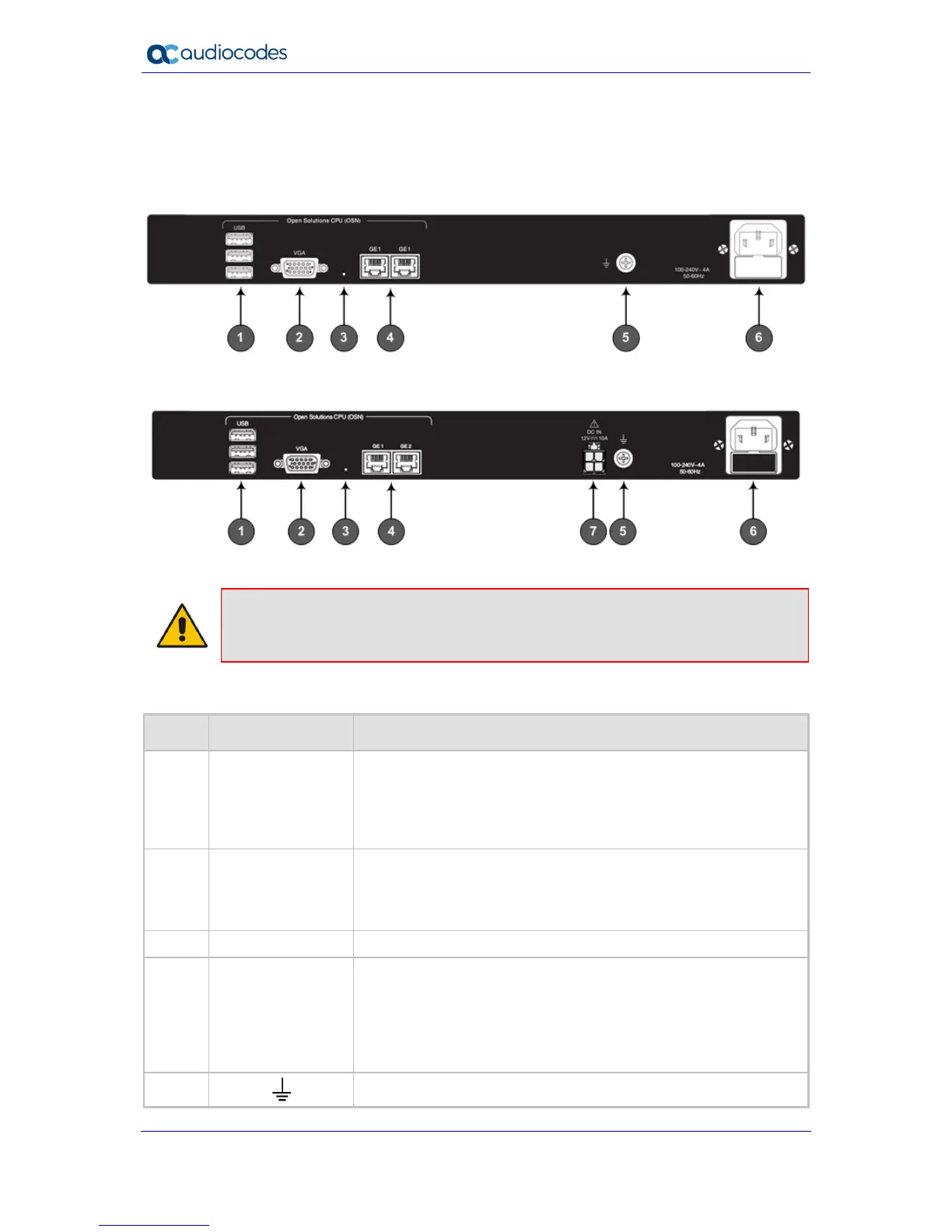

3.3 Rear Panel Description
The device's rear panel is shown in the figure below and described in the subsequent table.
Figure 3-3: Mediant 800B Rear Panel
Figure 3-4: Mediant 800C Rear Panel
Note: The figures above are used only as an example. The Open Network Solution
(OSN) server ports are a customer ordered item and depend on the ordered OSN server
platform.
Table 3-12: Rear Panel Description
Item # Label Description
1 OSN USB Three USB ports (Standard-A type) for connecting computer
peripherals (e.g., mouse and keyboard). These are used when
implementing the OSN.
Note: These ports are available only if the device is equipped with
the OSN server (customer ordered).
2 OSN VGA 15-Pin DB-type female VGA port for connecting to a monitor
(screen). This port is used when implementing the OSN.
Note: This port is available only if the device is equipped with the
OSN server (customer ordered).
3 - Reset button for resetting the OSN server.
4 GE 1
GE 2
10/100/1000Base-T Ethernet ports (RJ-45) for connecting directly
to the OSN server. For example, one port can be connected to the
LAN (to IP Phones) and the second port to the WAN interface (to
an IP PBX).
Note: the number of ports depends on ordered OSN server
platform (see Section 5.7 on page 46).
5
