5.6 Connecting to a Computer for Serial Communication
The device provides an RS-232 serial interface port on its front panel for serial
communication with a PC.
Cable specifications:
Connector Type: RJ-45
Cable: RJ-45 to DB-9 cable adaptor
To connect the device's serial interface to a computer:
1. Connect the RJ-45 cable connector to the device's serial port, labeled CONSOLE.
2. Connect the other end of the cable to the COM1 or COM2 RS-232 communication port
on your PC.

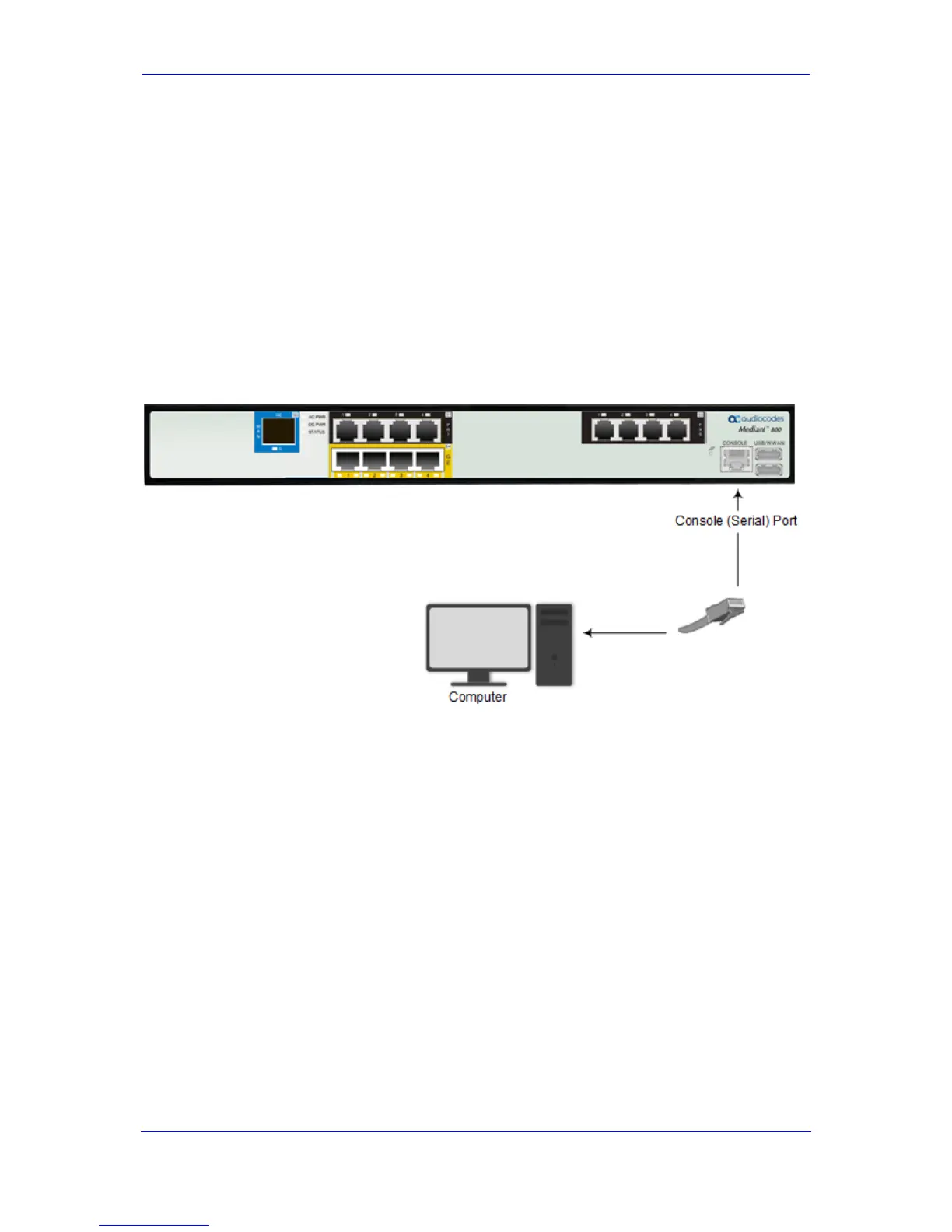

Figure 5-18: Cabling Serial Interface
