To connect to the OSN server:
1. Perform the following cabling procedures on the OSN server, located on the rear panel:
a. Connect computer peripherals (e.g., mouse and keyboard) to the USB ports
(Standard-A type) labeled USB.
b. Connect the USB storage device containing the operating system installation files
(Linux or Microsoft Windows) to one of the USB ports, labeled USB.
c. Connect a monitor using a 15-Pin D-type male connector to the VGA female port,
labeled VGA.
d. Connect to the network using an RJ-45 Ethernet cable connector to the Gigabit
Ethernet port/s (labeled GE 1 and GE 2).

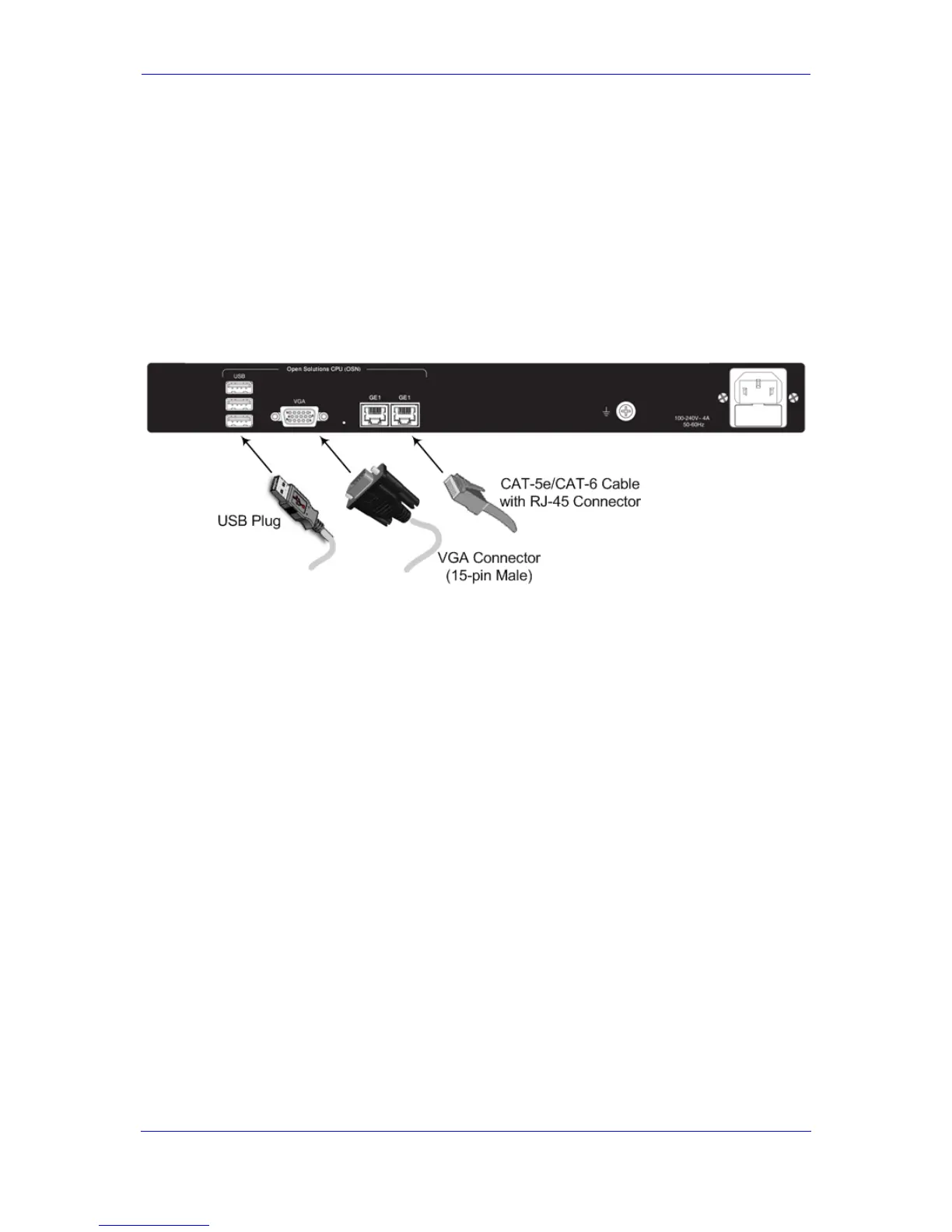

Figure 5-19: Cabling OSN Server Ports
2. Connect the device to power.
3. Follow the operating system's installation instructions to install the operating system.
To reset the OSN server:
Insert a sharp-pointed object (such as a drawing pin) into the Reset pinhole and then
extract it after a second; the OSN server performs a reset.
