AudioCodes Mediant 800C Hardware Installation Manual

Gateway & E-SBC 37 Mediant 800
Hardware Installation Manual 5. Cabling the Device
Cable specifications:
 Cable: 26 AWG min
 Connector Type: RJ-11
 Connector Pinouts:

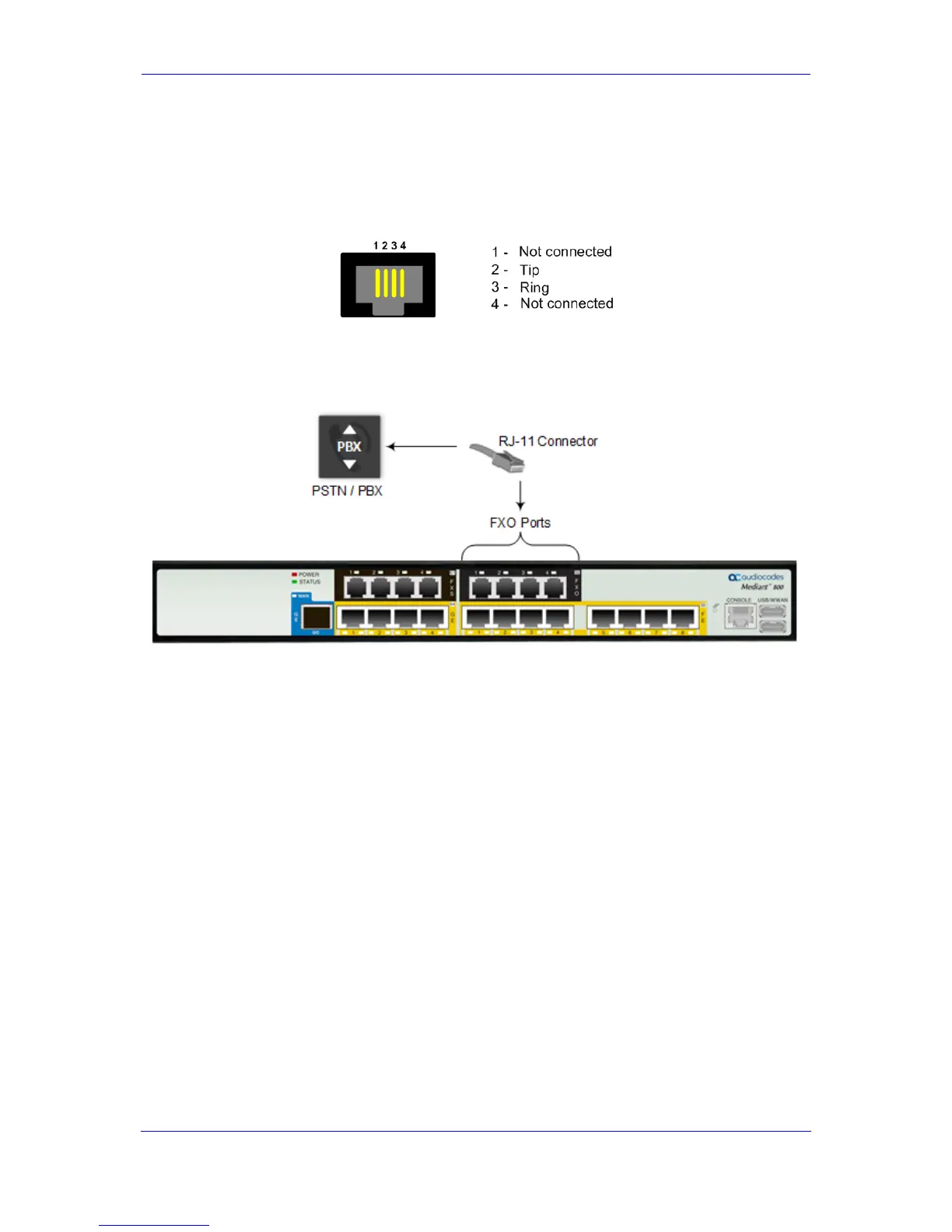

Figure 5-6: RJ-11 Connector Pinouts for FXO Interface
 To connect the FXO interfaces:
1. Connect one end of an RJ-11 cable to the FXO port (labeled FXO).
Figure 5-7: Connecting FXO Interfaces
2. Connect the other end of the cable to the required telephone interface: (e.g., telephone
exchange analog lines or PBX extensions).

AudioCodes Mediant 800C Specifications

General

Brand	AudioCodes
Model	Mediant 800C
Category	Gateway
Language	English
