3 Physical Description
This chapter provides a physical description of the device.
3.1 Physical Dimensions and Operating Environment
The device's physical dimensions and operating environment are listed in the table below:
Table 3-1: Physical Dimensions and Operating Environment
Physical Specification Description
Dimensions (H x W x D)
44 x 445 x 269 mm (1.73 x 17.5 x 10.6 in.)
Weight
1.8 kg (4 lbs.)
Environmental
Operational: 5 to 40°C (41 to 104°F)
Storage: -25 to 85°C (-13 to 185°F)
Humidity: 10 to 90% non-condensing
3.2 Front Panel
The device's front panel is shown in the figure below and described in the subsequent
subsections.

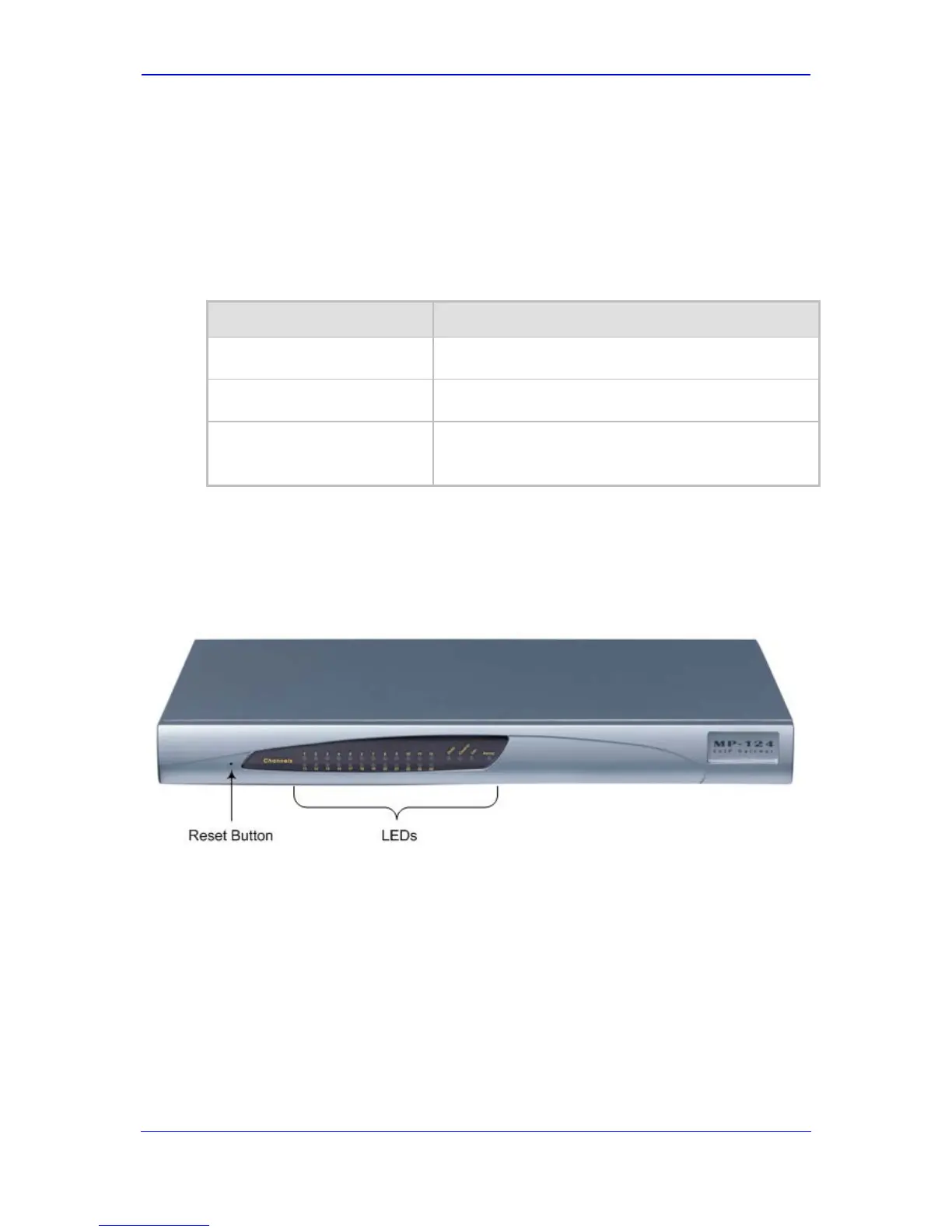

Figure 3-1: Front Panel
3.2.1 Reset Pinhole Button
The reset pinhole button enables you to reset the device or restore the device to factory
default settings. For more information, refer to the User's Manual.
