3.3.2 MP-124 Rev. E
The MP-124 Rev. E rear panel is shown below and described in the subsequent table.

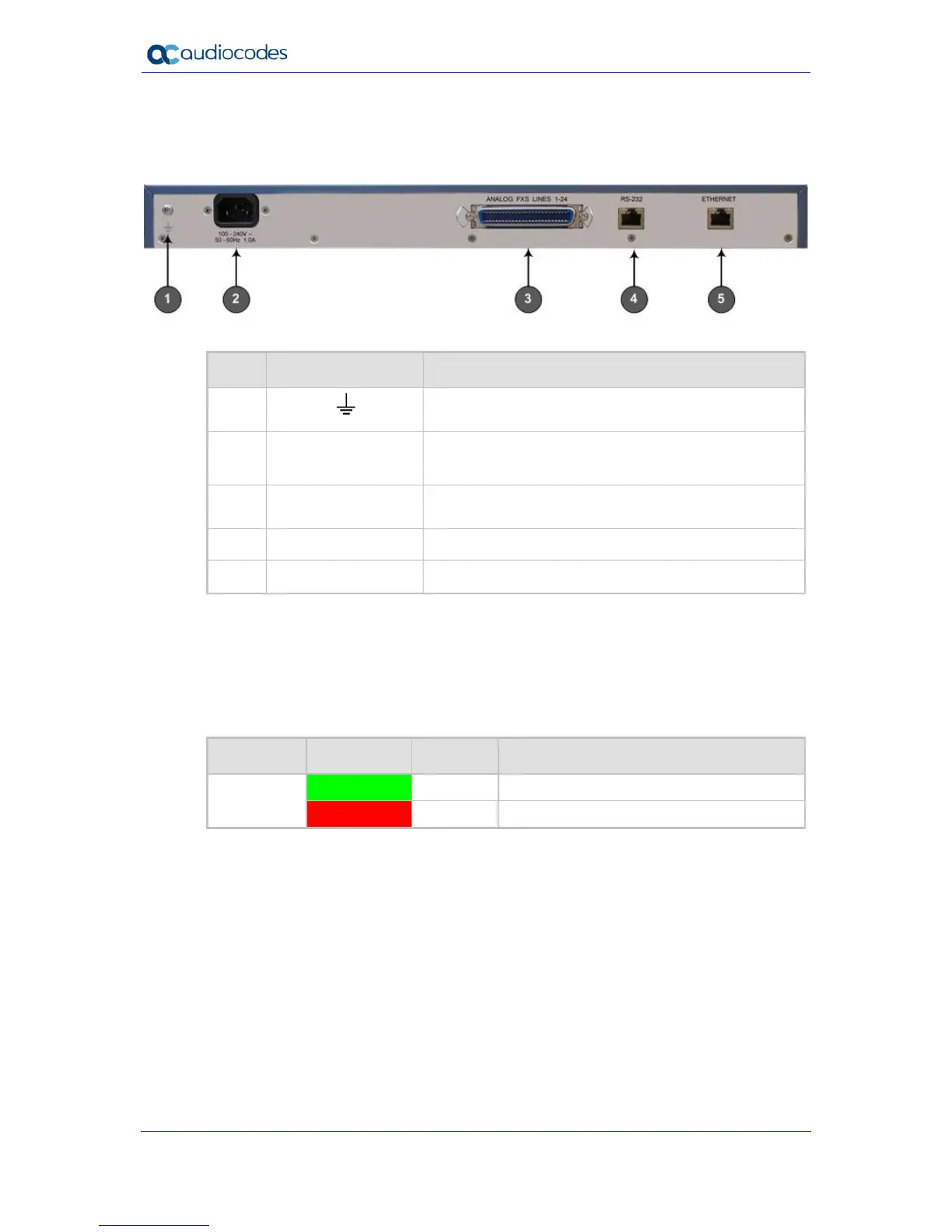

Figure 3-4: Rear Panel of MP-124 Rev. E Model
Table 3-4: MP-124 Rev. E Rear-Panel Description
Item # Label Component Description
1
Protective earthing screw (mandatory for all
installations). Accepts a 6-32 UNC screw.
2
100-240 V~
50 - 60Hz 1A
AC power supply socket.
3
ANALOG FXS
LINES 1–24
50-pin Telco connector, providing up to 24 FXS analog
lines.
4
RS-232
RJ-45 port for serial (RS-232) communication.
5
ETHERNET
RJ-45 port for 10/100Base-TX Ethernet interface.
3.3.3 Ethernet LED Description
The RJ-45 Ethernet port for Ethernet interface (labeled ETHERNET), provides LEDs that
indicate Ethernet status, as described in the table below.
Table 3-5: Rear-Panel Ethernet LEDs Description
Label Color State Function
ETHERNET
Green On Valid 10/100Base-TX Ethernet connection.
Red On Malfunction.
