AudioCodes MediaPack 124 - Figure 5-13: Connecting MP-124 Rev. E Directly to MDF for FXS Cabling

MediaPack Analog Gateways 33 MP-124
Hardware Installation Manual 5. Cabling the Device
• MP-124 Rev. E:

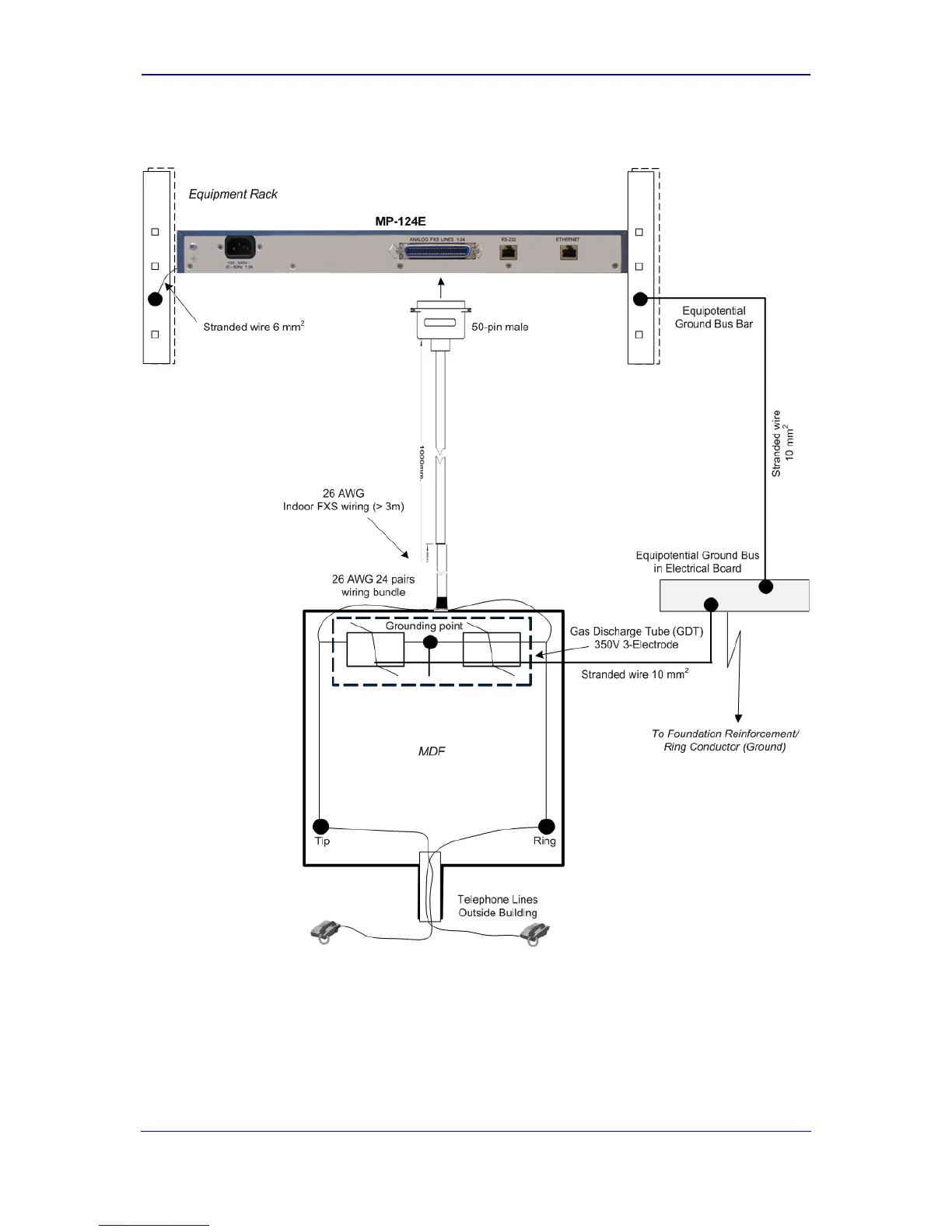

Figure 5-13: Connecting MP-124 Rev. E Directly to MDF for FXS Cabling
