Hardware Installation Manual 38 Document #: LTRT-59847
MP-124

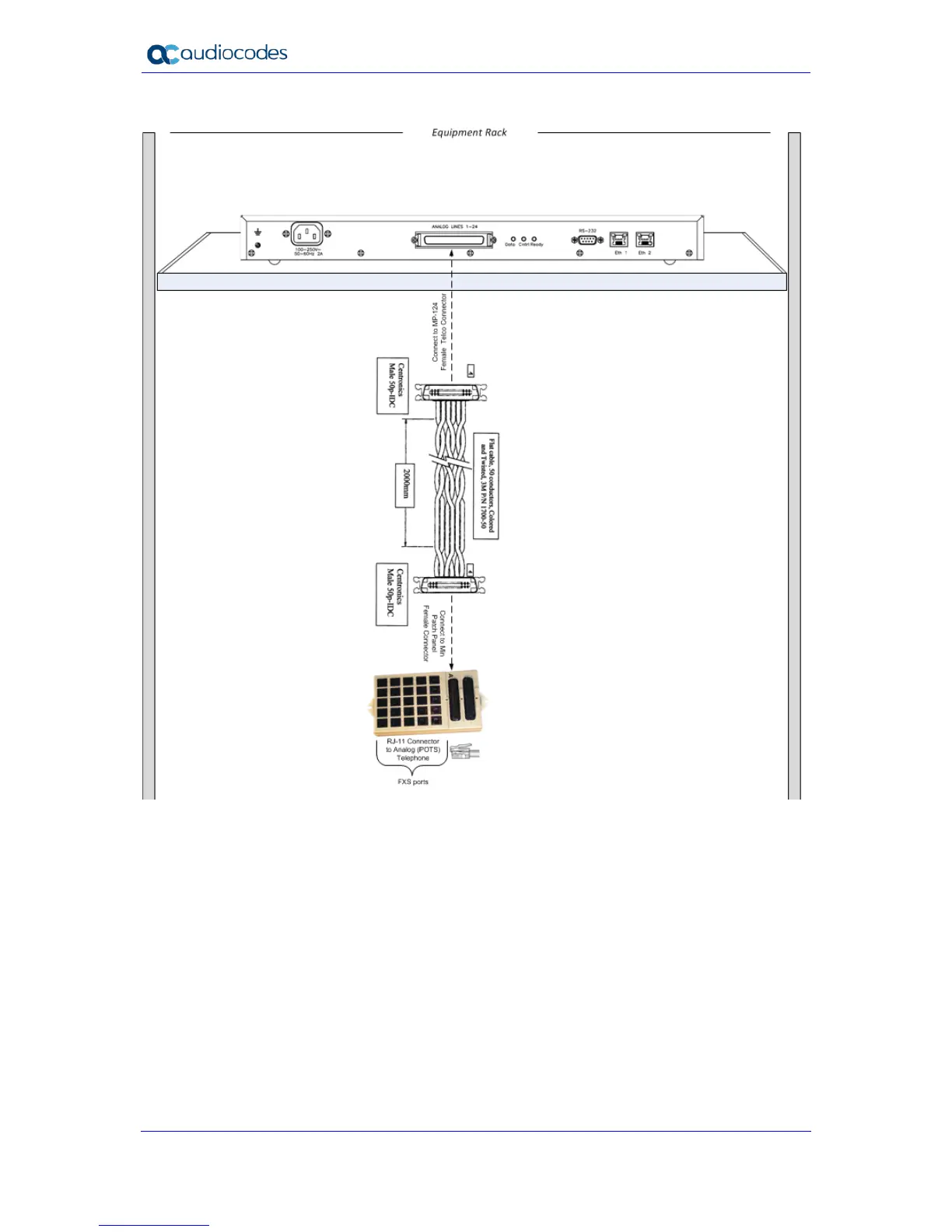

Figure 5-24: Connecting FXS Lines using Mini Patch Panel
4. Secure the Mini Patch Panel using the provided adhesive stickers or rest it on the rack
shelf in a convenient position.
