AudioCodes MediaPack 124 - Figure 5-10: Connecting MP-124 Rev. E to FXS Patch Panel

Hardware Installation Manual 30 Document #: LTRT-59847
MP-124
• MP-124 Rev. E:
Note: The following figure illustrates outdoor FXS cabling installations for MP-124
Rev. E. For indoor FXS cabling installations, there is no need for primary lightning
protection usage.

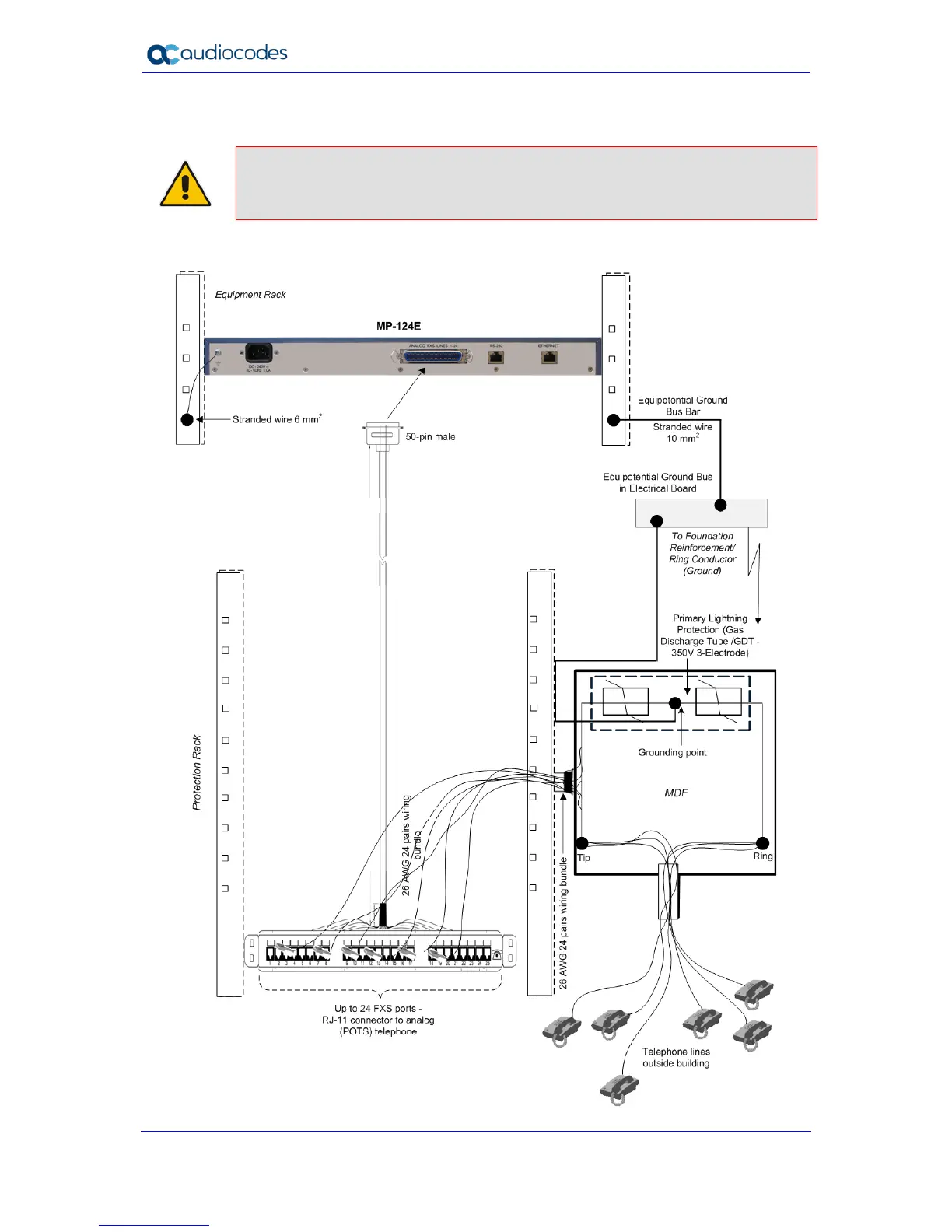

Figure 5-10: Connecting MP-124 Rev. E to FXS Patch Panel
