CHAPTER3 Physical Description
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual
Table 3-8: CRMX Module Port Description
Item # Label Component Description
1 0/I
(LAN),
0/2
(LAN),
0/3
(LAN)
Three 10/100/1000Base-T Gigabit Ethernet LAN ports. The ports can
be configured for 1+1 port redundancy. By default, ports 0/1 and 0/2
are a port pair, where 0/1 is the active port and 0/2 the standby port.
2 IOIO RS-232 serial port for accessing the CLI.
3 // Reset pinhole button for resetting the device and restoring the device
to factory defaults. To restore to defaults, with a paper clip or any
other similar pointed object, press and hold down the Reset button
for at least 15 seconds (but not more than 25 seconds).
4 - Dry-contact relay connector for interfacing with a third-party,
external alarm system.
Note: The dry-contact relay is a separate orderable item.
LED Description

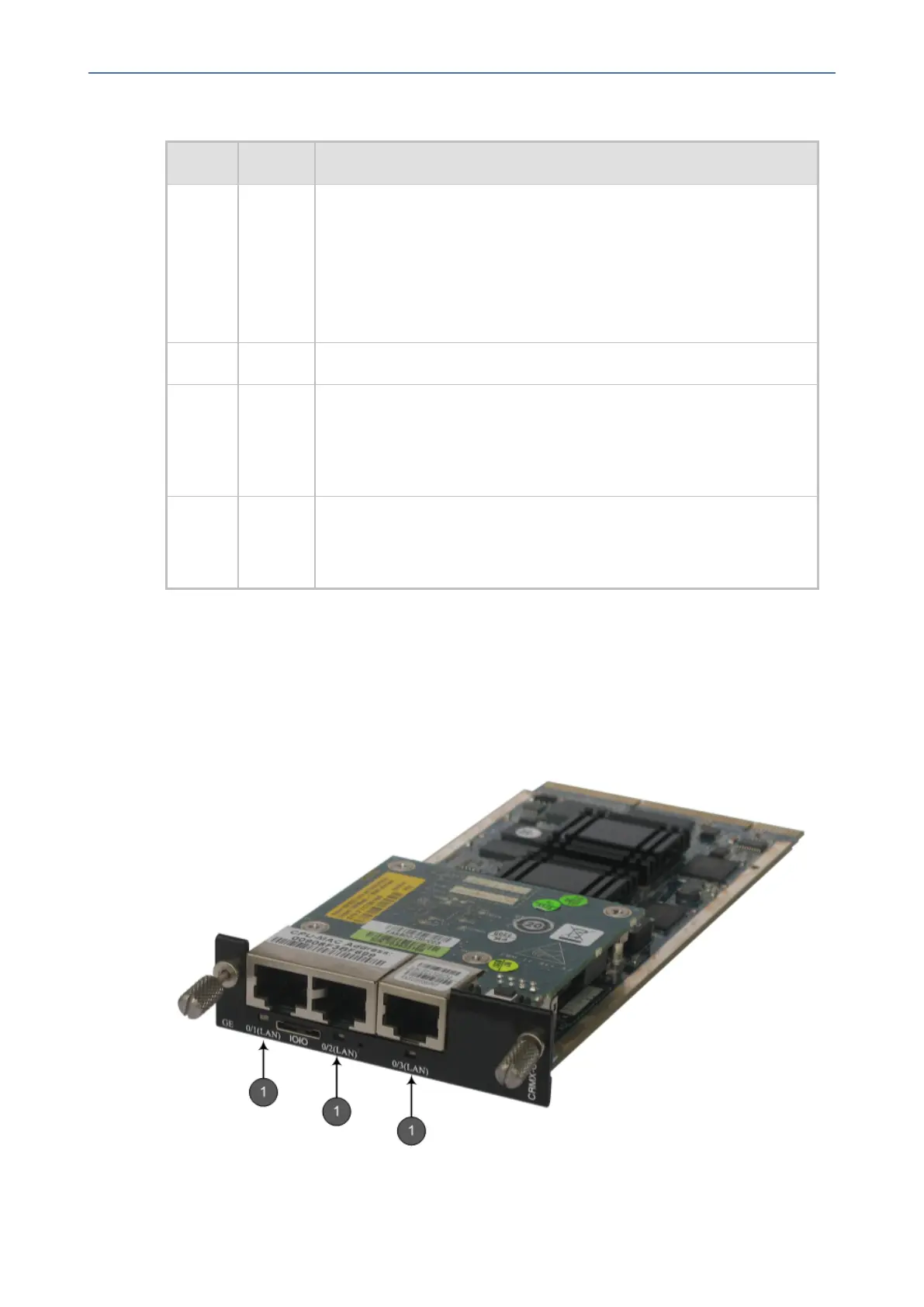

The LAN ports on the CRMX module provide LEDs, as shown in the following figure and
described in the subsequent table:
■ CRMX Module without Dry-Contact Relays:
● New Hardware Revision:
