CHAPTER3 Physical Description
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual

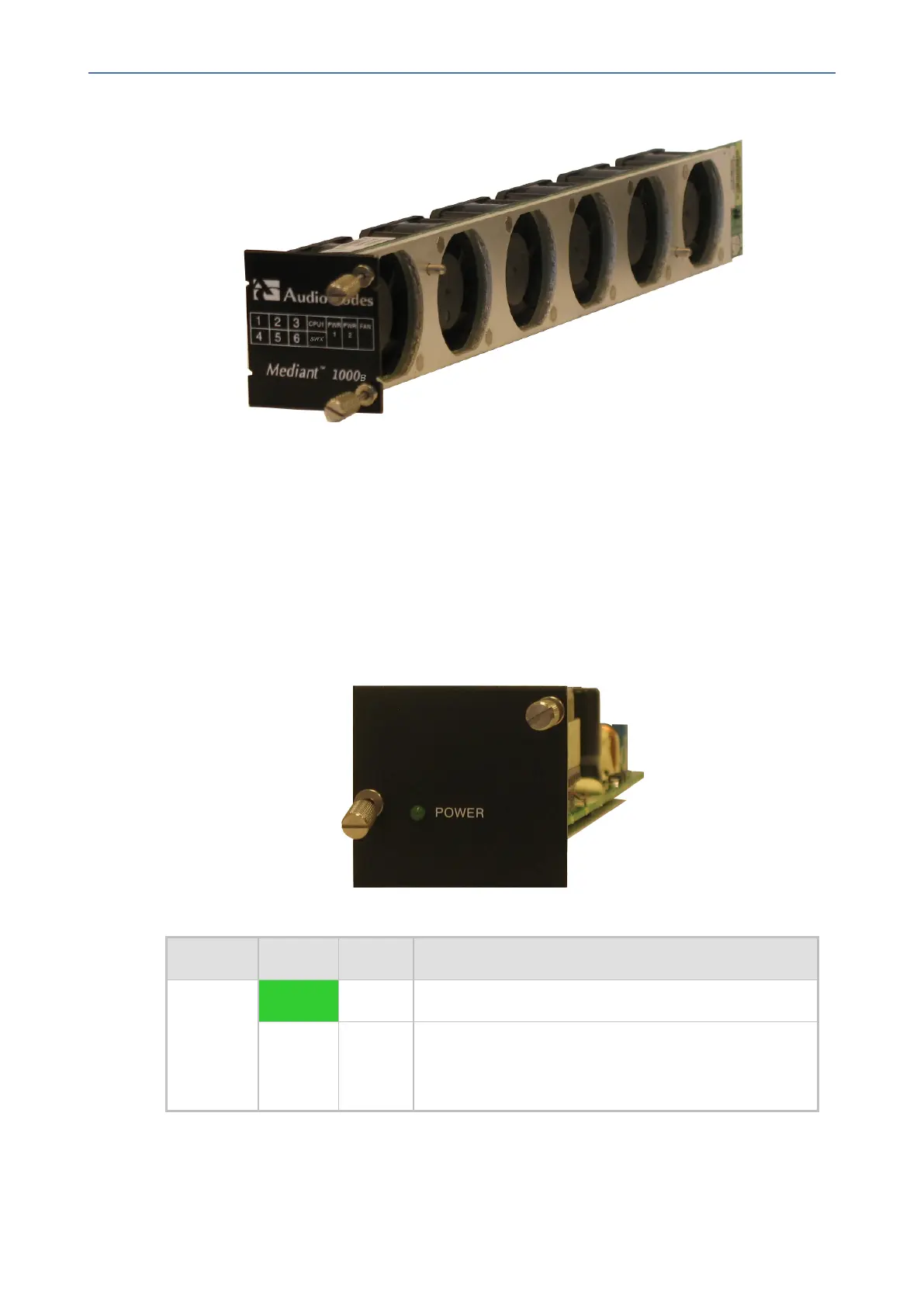

Figure 3-9: Fan Tray Module
For replacing the Fan Tray module, see Replacing the Fan Tray Module.
Power Supply Module and LED Description
The device can house up to two extractable power supply modules (Power 1 and Power 2),
each providing an AC power connector on the device's rear panel. The dual power option
provides the device with load sharing and power redundancy in case of failure in one of the
power sources or modules. When using this feature, you are advised to connect each power
supply unit to a different AC supply circuit.
Figure 3-10: Power Supply Module
Table 3-11: Power Supply Module LED Description
LED Color State Description
POWER Green On Power supply is operating correctly.
- Off Failure / disruption in the AC supply, or the power is
currently not being supplied to the device through the
AC power supply entry.
- 16 -
