CHAPTER4 Mounting the Device
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual
4 Mounting the Device
The device can be mounted in one of the following ways:
■ Placed on a desk top (see 'Desktop Mounting')
■ Installed in a standard 19-inch rack (see ‘19-inch Rack Mounting')
Desktop Mounting
You can mount the device on a desktop by attaching the four anti-slide bumpers (supplied) to
the underside of the device. Once you have attached these bumpers, simply place it on a
desktop in the desired position.
➢ To attach the anti-slide rubber bumpers to the device:
1. Flip the device over so that its underside faces up.
2. Locate the four anti-slide grooves on the underside -- one on each of the four corners.

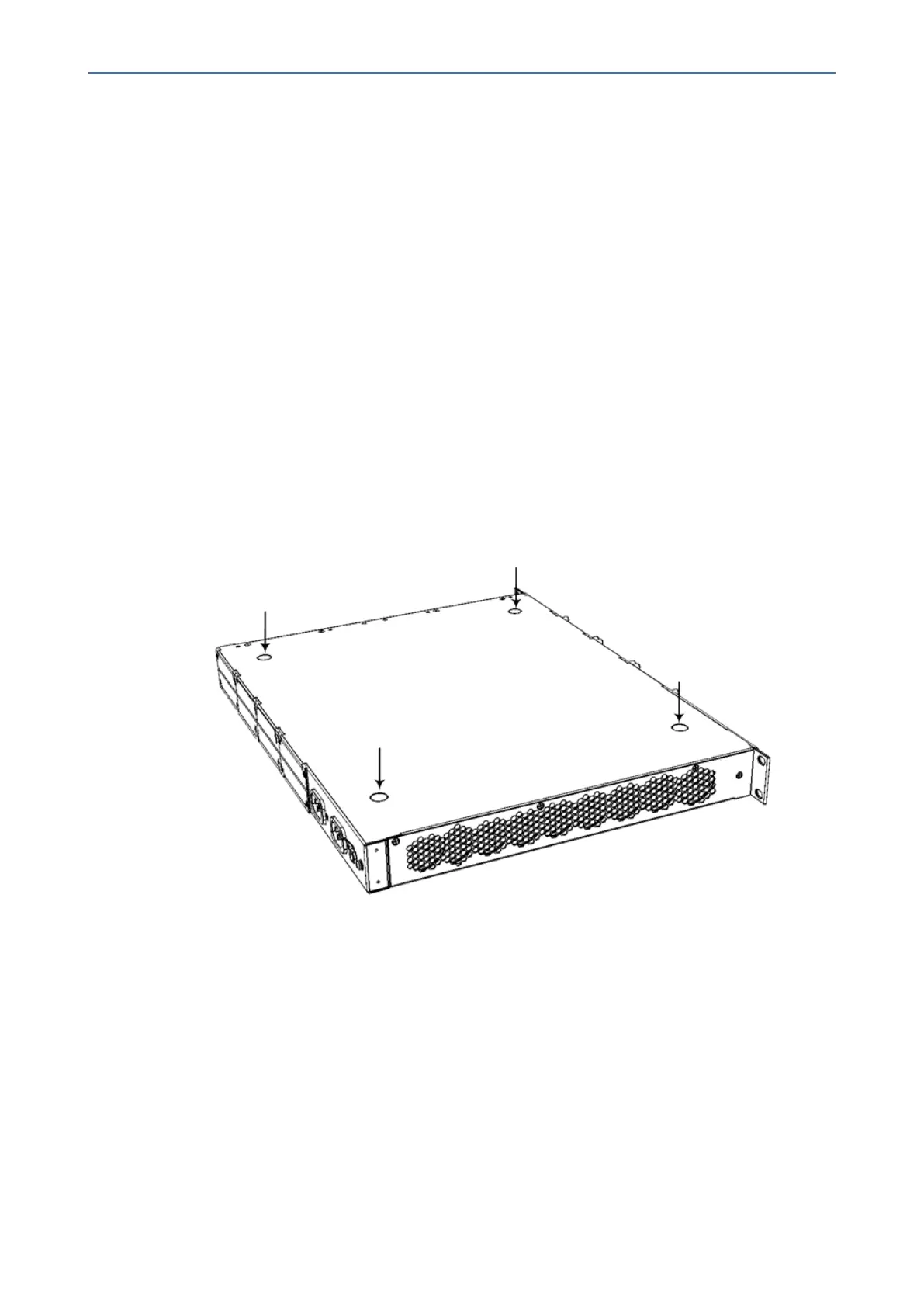

Figure 4-1: Location of Grooves for Rubber Feet
3. Peel off the adhesive, anti-slide rubber feet and stick one in each anti-slide groove.
4. Flip the device over again so that it rests on its underside and place it in the required
position on a desktop.
19-inch Rack Mounting
The device can be installed in a standard 19-inch rack. You can mount it in the rack using any
one of the following mounting options:
■ (Recommended) Mounting the chassis on a pre-installed shelf in a 19-inch rack – see
Mounting in a 19-inch Rack using a Pre-Installed Shelf
- 24 -
