CHAPTER5 Cabling the Device
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual

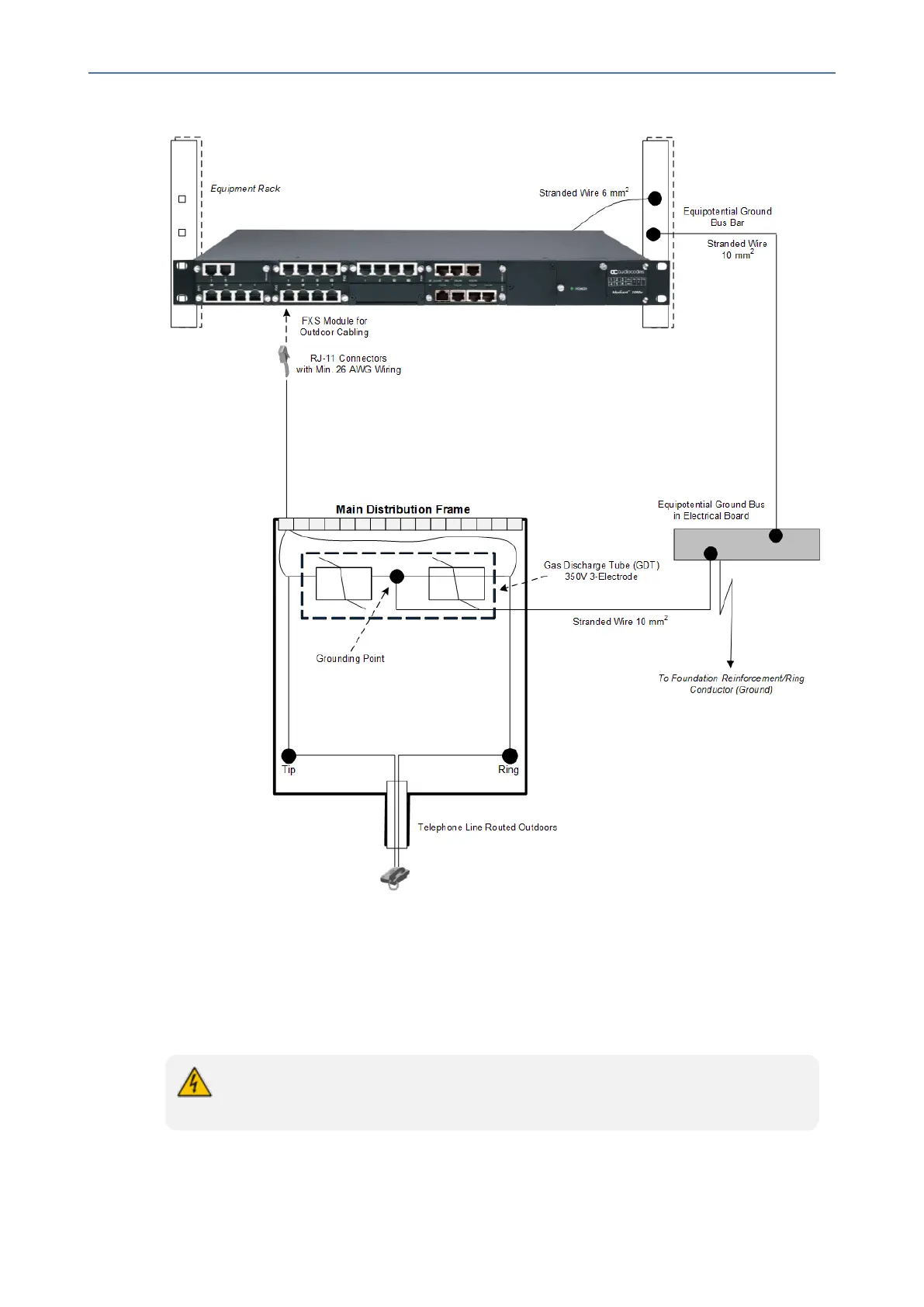

Figure 5-8: FXS Cabling for Outdoor Routing
5. Connect the telephone line from the MDF to your analog equipment.
Connecting to FXO Interfaces
The procedure below describes how to connect the FXO port interfaces to telephone exchange
analog lines or PBX extensions.
● To protect against electrical shock and fire, use a 26 AWG min wire to connect
FXO ports to the PSTN.
