Audison Prima Forza AP F8.9 bit User Manual

10
AP F8.9 bit /
USER’S MANUAL
5. CONNECTIONS
5.1 POWER SUPPLY AND REMOTE TURN ON
AP F8.9 bit is on when the logo is blue. It can be turned on/off using the following methods:
1. By pressing on the main DRC control knob (ON). By holding down the main control knob on the DRC (OFF). In this
case, no other Remote In connections are needed, but they can co-exist.
2. By connecting the REMOTE IN terminal with a Remote Out signal coming from an after market audio source.
3. Through the Hi Level MASTER (FL - FR) input. The AUTO TURN ON (ART) function is activated by connecting the
output of an amplified source to the INPUT FL - FR input channel. This function can be enabled/disabled using
AP F8.9 bit PC software (see sec. 7.3.4.7).
4. Using the Speaker IN input. The AUTO TURN ON (AST) function is activated by connected the outputs
on a amplified source to the input channels to the AP F8.9 bit input channels.
This function can be enabled/disabled using AP F8.9 bit PC Software. This turn on control is available on the
IN 1; IN 2; IN 3; IN 4; IN5; IN6 inputs (see sec. 7.3.4.7).

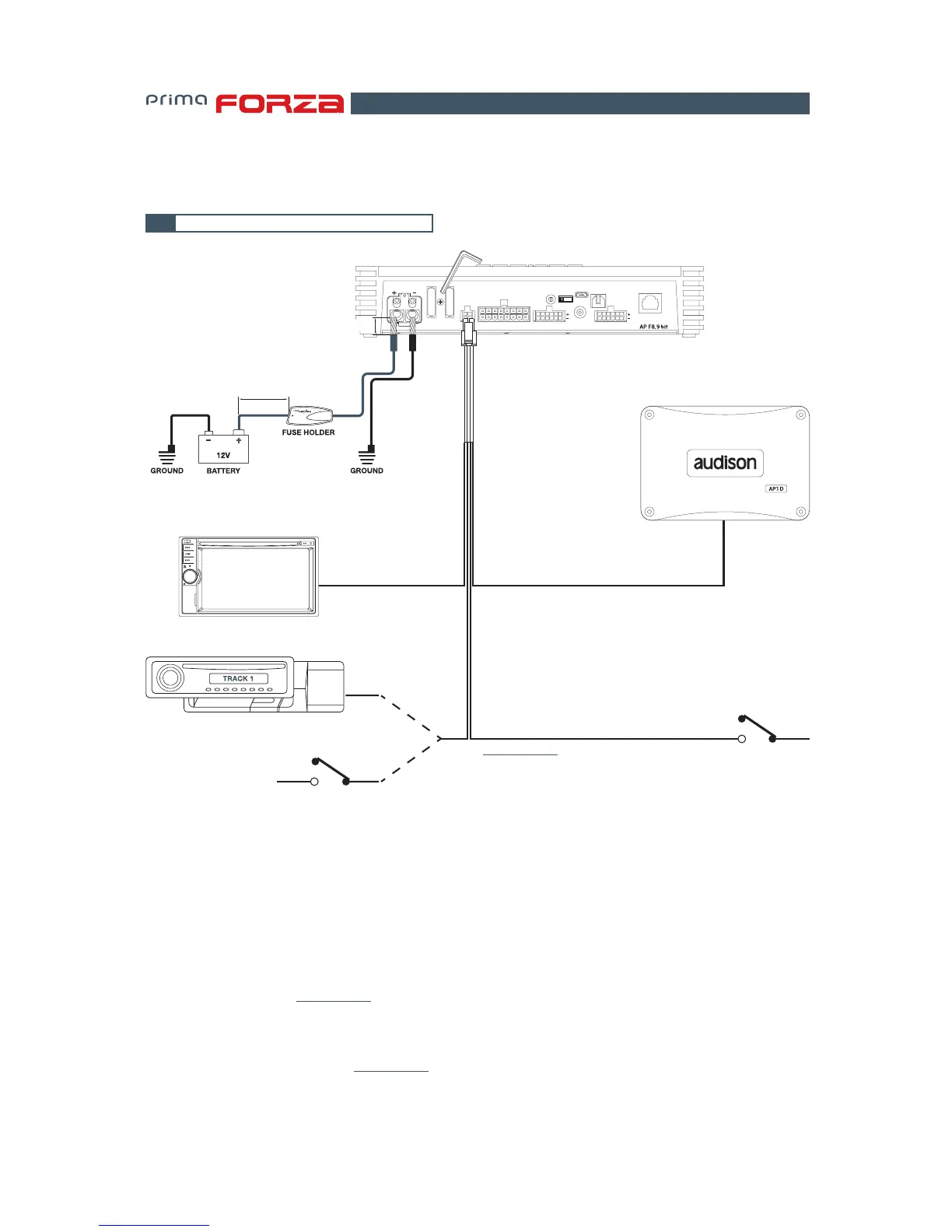

Turn AP F8.9 bit on and off
SD
0
1
2
3
4
5
6
7
USB
PRESETS OPTICAL IN
SUB OUTFUSE 2x30A CTRL SPEAKER IN PRE IN
DRC
UPGRADE
OFF ON
SPEAKER OUT
POWER - 12V
(Not provided.
Suggested Fuse
30 A delayed)
Max 20 cm / 7.9 in.
15 mm / 0.6 in.
8 AWG Max
REMOTE OUT
REMOTE OUT
TO ACTIVE
OPTICAL INPUT
pink OPTICAL/SEL blue REM IN
blue/white REM OUT
REM IN
EXTERNAL SUBWOOFER
AMPLIFIER (Optional)
HEX KEY 2,5 mm
OPTICAL SOURCE
HEAD UNIT
brown MASTER ENABLE + 12 V
+ 12 V
*
(see sec. 7.3.4.7)
5
