6
AP F8.9 bit /
USER’S MANUAL

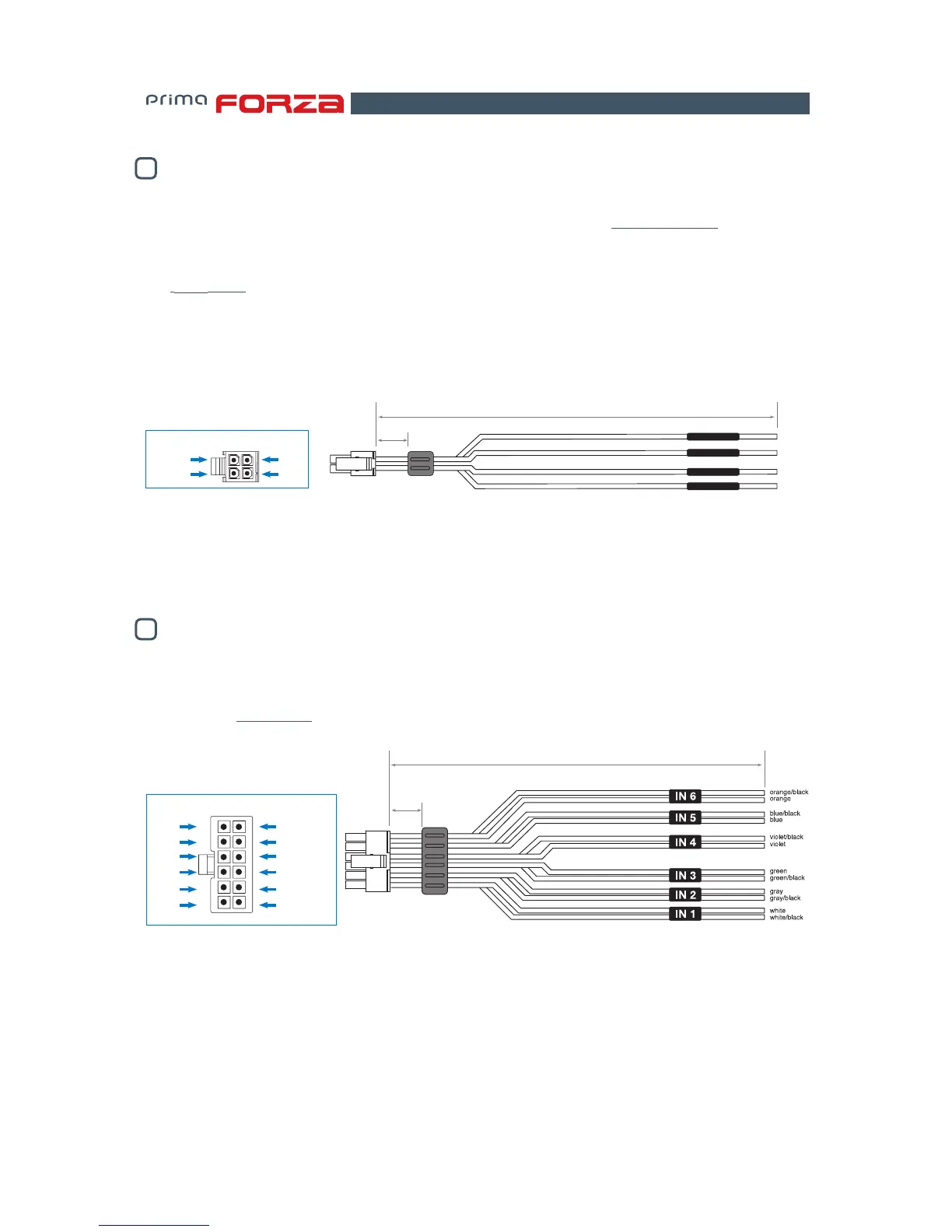

CTRL (REM IN-OUT / CONTROLS): terminals to turn on and control the AP F8.9bit.
- Remote IN. Input to turn on AP F8.9 bit remotely through the audio signal source Remote Out. REM IN can be
connected to the ignition switch terminal (ACC). The voltage must be between 7 and 14.5 VDC. If using a source
with amplified outputs such as BTL, AP F8.9bit can be automatically turned on (see sec. 7.2.5 - 7.3.4.7), so it will not be
necessary to connect the REM IN terminal.
- Remote OUT. Output to turn on other devices/amplifiers connected after the AP F8.9 bit. From the time it is turned
on, it takes 1 second to supply the signal to the REM OUT output, but it will be possible to set this delay via software
(see sec. 7.3.4.7)
The 200 mA output current capability can also drive an automotive relay.
- OPTICAL SEL: it allows the OPTICAL input selection. This control is active bringing the terminal to +12V.
- MASTER EN: it enables the MASTER input selection. This control is active bringing the terminal to +12V. The
control signals are interfaced with the AP F8.9 bit via a wiring featuring a 4 pole multipolar connector, described below.
SPEAKER IN.
AP F8.9 bit is provided with a 12 poles multipolar connector to manage the input signals. Connect up to a
maximum of 6 input channels using the multipolar connector supplied.
By default AP F8.9 bit accepts signals coming from Front Left/ Front Right, Rear Left/ Rear Right, and the signal
to be applied must have a value ranging between 2.2 and 22 V RMS. Such input channels can be then customized
using the PC (see sec. 7.3.4.7).
The channels FL FR RL RR feature the AUTO TURN ON (ART) function, automatic turn on/off, when connected
with the source loudspeakers outputs. This function can be disabled via PC Software.
2
3
4
320 mm / 12.6 in.
Wire Size: AWG 20
10 mm
0.39 in.
brown
blue/black
blue
pink
FRONT VIEW
brownpink
blueblue/black
OPTICAL SEL.
MASTER EN.
REM IN
REM OUT
FRONT VIEW
orange
purple
gray
orange/black
purple/black
gray/black
blue
green
white
blue/black
green/black
white/black
320 mm / 12.6 in.
10 mm
0.39 in.
Wire Size: AWG 20
