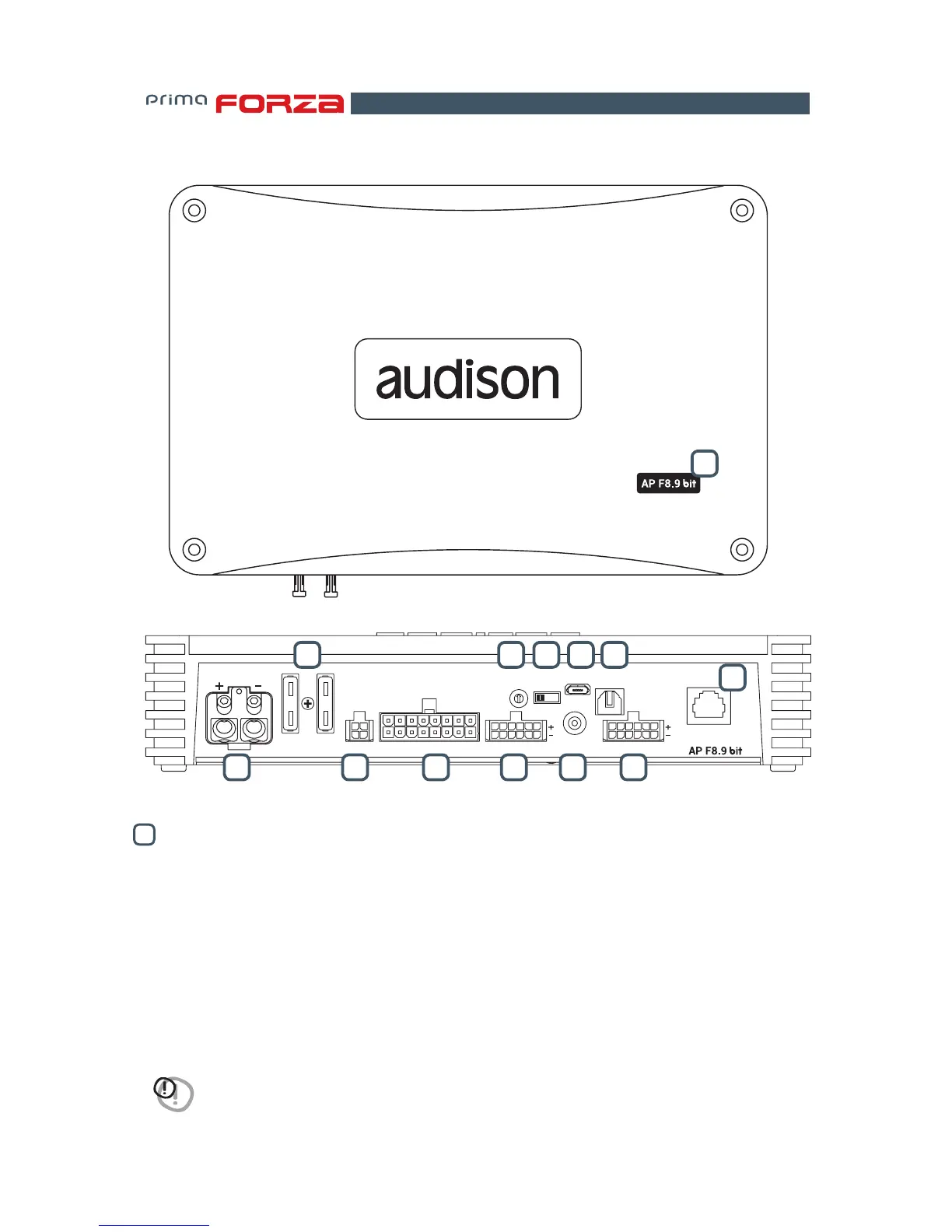

4. CONNECTION PANELS - DESCRIPTION
POWER.
+ Power (11-15 VDC): connection terminal for AP F8.9 bit power supply positive pole. The jack accepts a stripped
cable up to 15mm/0.6” with maximum section of 8 AWG (∅ 3,2mm / 0.12”). For better power transfer we recommend
using cables with the largest possible cross-section and with the same cross-section as the cable connected to the
negative pole.
- Power (Ground): connection terminal for the negative power supply pole of the amplifier. Connect here the negative
battery cable or a cable connected to the vehicle chassis. The soket will take a stripped cable up to 15mm/0.6”
with a maximum section of 8 AWG (∅ 3,2mm / 0.12”). For better power transfer, we recommend using cables with
the largest possible section and with the same section as the cable connected to the positive pole.
In order to correctly connect the ground (-), use a screw that is already present on the metal part of the vehicle; If
necessary, remove any paint residue or grease, using a tester to make sure there is continuity between the negative
terminal (-) on the battery and the mounting point. If possible, connect all of the grounds on the audio components
to the same grounding point. This helps reduce most of the interference than can occur in audio reproduction.
WARNING: make sure the connection polarity is as indicated on the terminals. A misconnection may result in damage to the
AP F8.9 bit. After applying power, wait at least 10 seconds before turning the AP F8.9 bit on.
1
13
0
1
2
3
4
5
6
7
USB
PRESETS OPTICAL IN
SUB OUTFUSE 2x30A CTRL SPEAKER IN PRE IN
DRC
UPGRADE
OFF ON
SPEAKER OUT
POWER - 12V
11 10
21 65 3
7
8
9
12
4
4
