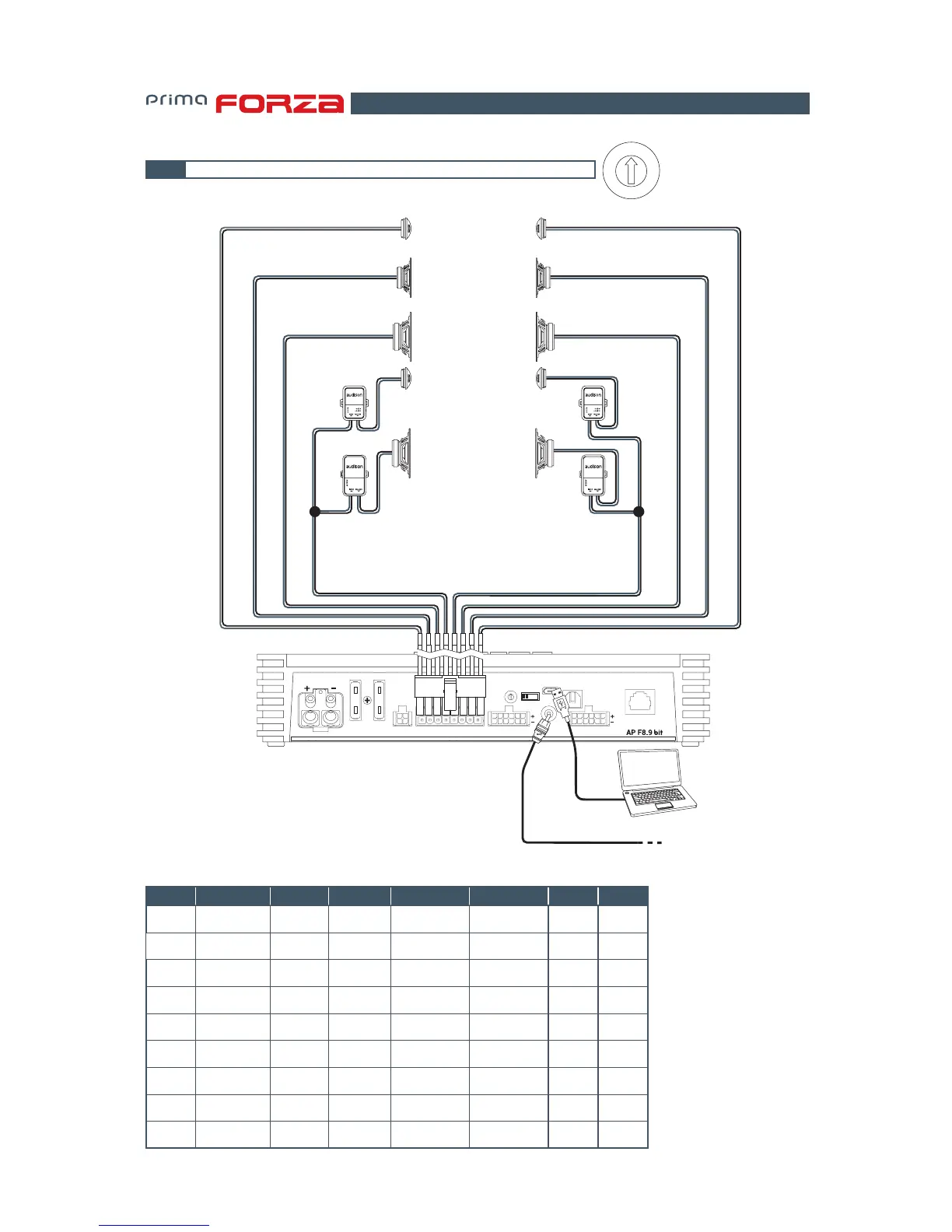

5.4.1 PRESET 0 DEFAULT: 3 WAY ACTIVE FRONT + REAR + EXTERNAL SUBWOOFER
1
2
3
4
5
6
7
0
INPUT CONFIGURATION:
Master input: Front + Rear
Optical: S/P-DIF PCM 192kHz/24 bit max
OUTPUT CONFIGURATION:
0
1
2
3
4
5
6
7
USB
PRESETS OPTICAL IN
SUB OUTFUSE 2x30A CTRL
SPEAKER IN
PRE IN
DRC
UPGRADE
OFF ON
SPEAKER OUT
POWER - 12V
Out 1 (+) Out 8 (+) Out 3 (+) Out 6 (+) Out 5 (+) Out 4 (+) Out 7 (+) Out 2 (+) Out 1 (-) Out 8 (-) Out 3 (-) Out 6 (-) Out 5 (-) Out 4 (-) Out 7 (-) Out 2 (-)
REAR
LEFT
WF
LEFT
FRONT
MD
LEFT
FRONT
TW
LEFT
FRONT
WF
RIGHT
FRONT
MD
RIGHT
FRONT
TW
RIGHT
FRONT
REAR
RIGHT
to SUBWOOFER amplifier
OUTPUT TYPE CUT FILTER FILTER TYPE CUT FREQUENCY TIME ALIGNMENT
*
POWER 4 Ω POWER 2 Ω
OUT 1
FRONT TW LEFT HI PASS Linkwitz 5000 Hz @12 dB 0 85 W 150 W
OUT 2
FRONT TW RIGHT HI PASS Linkwitz 5000 Hz @12 dB 0 85 W 150 W
OUT 3
FRONT MD LEFT BAND PASS Linkwitz
500 Hz @12 dB
3000 HZ @ 12 dB
0 85 W 15 0 W
OUT 4
FRONT MD RIGHT BAND PASS Linkwitz
500 Hz @12 dB
3000 HZ @ 12 dB
0 85 W 15 0 W
OUT 5
FRONT WF LEFT BAND PASS Linkwitz
80 Hz @12 dB
500 HZ @ 12 dB
0 85 W 15 0 W
OUT 6
FRONT WF RIGHT BAND PASS Linkwitz
80 Hz @12 dB
500 HZ @ 12 dB
0 85 W 15 0 W
OUT 7
REAR LEFT FULL HI PASS Linkwitz 80 Hz @12 dB 0 85 W 150 W
OUT 8
REAR RIGHT FULL HI PASS Linkwitz 80 Hz @12 dB 0 85 W 150 W
SUB OUT
SUB WOOFER LO PASS Linkwitz 80 Hz @12 dB 0 - -
