5.4 OUTPUT SIGNALS
1. AP F8.9 bit provides 8 amplified outputs. Through the PC Software, each output channel is provided with the
following (ee sec. 7.2):
- a 10 pole graphic equalizer;
- a 68-frequency electronic crossover and Butterworth or Linkwitz-Riley type filters with 6-24 dB slopes (see sec. 7.3.10);
- a digital time delay line (see sec. 7.3.11);
- phase inversion activation (see sec. 7.3.10.2);
- adjustment of the output level to better align the total system response (see sec. 7.3.13);
2. AP F8.9 bit features a preamplified output (4 V Rms max.) SUB OUT that exclusively controls a mono amplifier
for subwoofer, or one active subwoofer to amplify the sound system. This output can be activated during I/O
Wizard Configuration (see sec. 7.2.9).

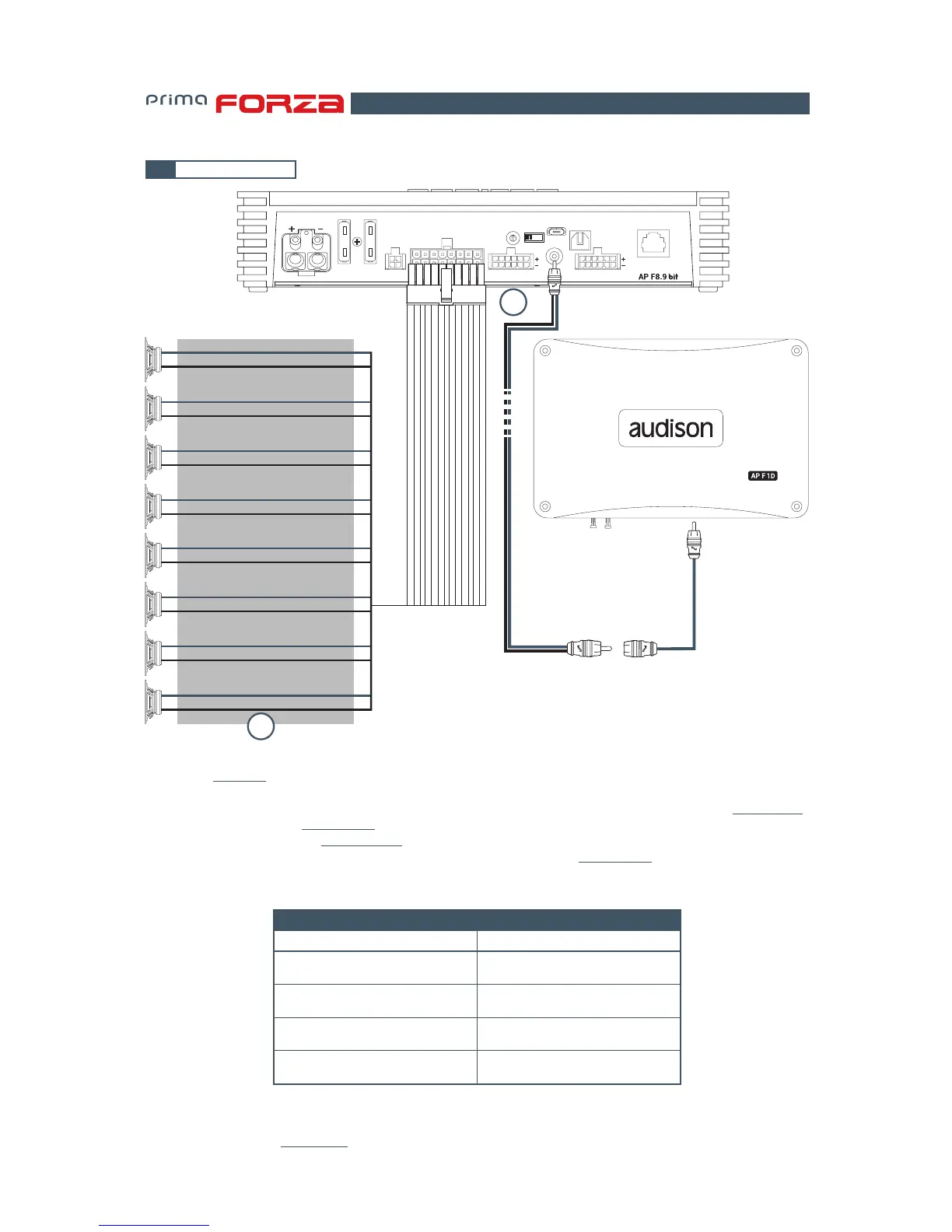

CH 1÷CH 8 AMPLIFIED OUTPUT CHANNELS CONFIGURATION
0
1
2
3
4
5
6
7
USB
PRESETSOPTICAL IN
SUB OUTFUSE 2x30A CTRL
SPEAKER IN
PRE IN
DRC
UPGRADE
OFF ON
SPEAKER OUT
POWER - 12V
16: White OUT 1+
15: White OUT 2+
14: White OUT 3+
13: White OUT 4+
12: White OUT 5+
11: White OUT 6+
10: White OUT 7+
9: White OUT 8+
8: White/Black OUT 1-
7: White/Black OUT 2-
6: White/Black OUT 3-
5: White/Black OUT 4-
4: White/Black OUT 5-
3: White/Black OUT 6-
2: White/Black OUT 7-
1: White/Black OUT 8-
2
1
POWER CHANNEL CONFIG
STEREO MODE BRIDGE MODE
CH1 85 W @ 4 Ohm / 150 W @ 2 Ohm
CH2 85 W @ 4 Ohm / 150 W @ 2 Ohm
CH1+ / CH2 - 300 W @ 4 Ohm
CH3 85 W @ 4 Ohm / 150 W @ 2 Ohm
CH4 85 W @ 4 Ohm / 150 W @ 2 Ohm
CH3+ / CH4 - 300 W @ 4 Ohm
CH5 85 W @ 4 Ohm / 150 W @ 2 Ohm
CH6 85 W @ 4 Ohm / 150 W @ 2 Ohm
CH5+ / CH6 - 300 W @ 4 Ohm
CH7 85 W @ 4 Ohm / 150 W @ 2 Ohm
CH8 85 W @ 4 Ohm / 150 W @ 2 Ohm
CH7+ / CH8 - 300 W @ 4 Ohm
5
