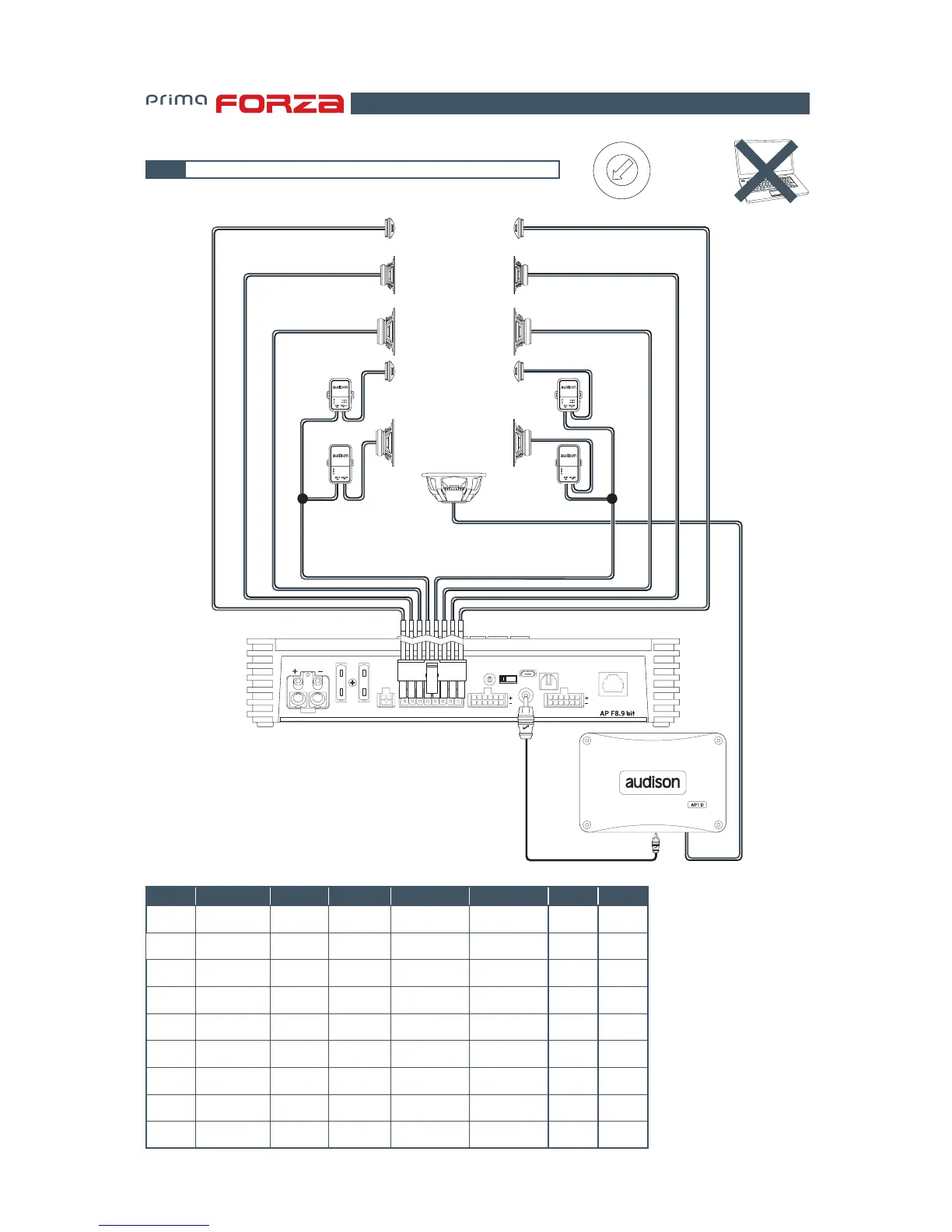

5.4.6 PRESET 5: 3 WAY ACTIVE FRONT + REAR + EXTERNAL AMPLIFIED SUB
1
2
3
4
5
6
7
0
MEMORY CONFIGURATION:
Memory A: Acoustic
Memory B: Rhythm
*Listening Point: Driver
0
1
2
3
4
5
6
7
USB
PRESETS OPTICAL IN
SUB OUTFUSE 2x30A CTRL
SPEAKER IN
PRE IN
DRC
UPGRADE
OFF ON
SPEAKER OUT
POWER - 12V
Out 1 (+) Out 8 (+) Out 3 (+) Out 6 (+) Out 5 (+) Out 4 (+) Out 7 (+) Out 2 (+) Out 1 (-) Out 8 (-) Out 3 (-) Out 6 (-) Out 5 (-) Out 4 (-) Out 7 (-) Out 2 (-)
SUBWOOFER
REAR
LEFT
WF
LEFT
FRONT
MD
LEFT
FRONT
TW
LEFT
FRONT
WF
RIGHT
FRONT
MD
RIGHT
FRONT
TW
RIGHT
FRONT
REAR
RIGHT
INPUT CONFIGURATION:
Master input: Front + Rear
Optical: S/P-DIF PCM 192kHz/24 bit max
OUTPUT CONFIGURATION:
OUTPUT TYPE CUT FILTER FILTER TYPE CUT FREQUENCY TIME ALIGNMENT
*
POWER 4 Ω POWER 2 Ω
OUT 1
FRONT TW LEFT HI PASS Linkwitz 3000 Hz @12 dB 82,2 cm 85 W 150 W
OUT 2
FRONT TW RIGHT HI PASS Linkwitz 3000 Hz @12 dB 116,2 cm 85 W 150 W
OUT 3
FRONT MD LEFT BAND PASS Linkwitz
500 Hz @12 dB
3000 HZ @ 12 dB
82,2 cm 85 W 150 W
OUT 4
FRONT MD RIGHT BAND PASS Linkwitz
500 Hz @12 dB
3000 HZ @ 12 dB
116,2 cm 85 W 150 W
OUT 5
FRONT WF LEFT BAND PASS Linkwitz
80 Hz @12 dB
500 HZ @ 12 dB
82,2 cm 85 W 150 W
OUT 6
FRONT WF RIGHT BAND PASS Linkwitz
80 Hz @12 dB
500 HZ @ 12 dB
116,2 cm 85 W 150 W
OUT 7
REAR LEFT HI PASS Linkwitz 80 Hz @12 dB 62,3 cm 85 W 150 W
OUT 8
REAR RIGHT HI PASS Linkwitz 80 Hz @12 dB 116,2 cm 85 W 150 W
SUB OUT
SUB WOOFER LO PASS Linkwitz 80 Hz @12 dB 121,8 cm - -
