Audison Thesis TH quattro - Rear Panel; Functions Description; How to Remove the Panel; the Protection Knob

11
OWNER’S MANUAL / TH quattro
General
321 4
5
+
- + -
FUSE 100A
B Channels
LEFT RIGHT
A Channels
+
- + -
LEFT RIGHT
- 12V

CAP
mono mono
A Channels B Channels
POWER
12 V
LEFT RIGHT
+
-
+
CAP
+
+
-
-
LEFT RIGHT
+
+
-
-
12 V
mono
mono
A Channels B Channels
POWER
LEFT
RIGHT
+
-
+
CAP
+
+
-
-
LEFT
RIGHT
+
+
-
-
+
-
+
-
FUSE 100A
B Channels
LEFT
RIGHT
A Channels
+
-
+
-
LEFT RIGHT
-
12V
 
CAP
Rear Panel
1 • POWER: Positive and negative terminals for 12 V car voltage supply. Size of connectors is 10 mm diameter
(2 AWG). Warning: connect positive and negative (GND) with polarity as indicated in the terminal. A wrong
connection cause an amplifier damage.
2 • +CAP: Terminal to connect positive pole of external capacitor.
3 • A CHANNELS: Terminals to connect A Channel Left and Right speakers system. Size of connectors is 6
mm (6 AWG). Pay attention to connect speaker with polarity as indicated, wrong polarity causes a phase
problem in the audio system.
4 • B CHANNELS: Terminals to connect B Channel Left and Right speakers system. Size of connectors is 6
mm (6 AWG). Pay attention to connect speaker with polarity as indicated, wrong polarity causes a phase
problem in the audio system.
5 • FUSE: Protection Fuse Connection Audison AFS 100 A.

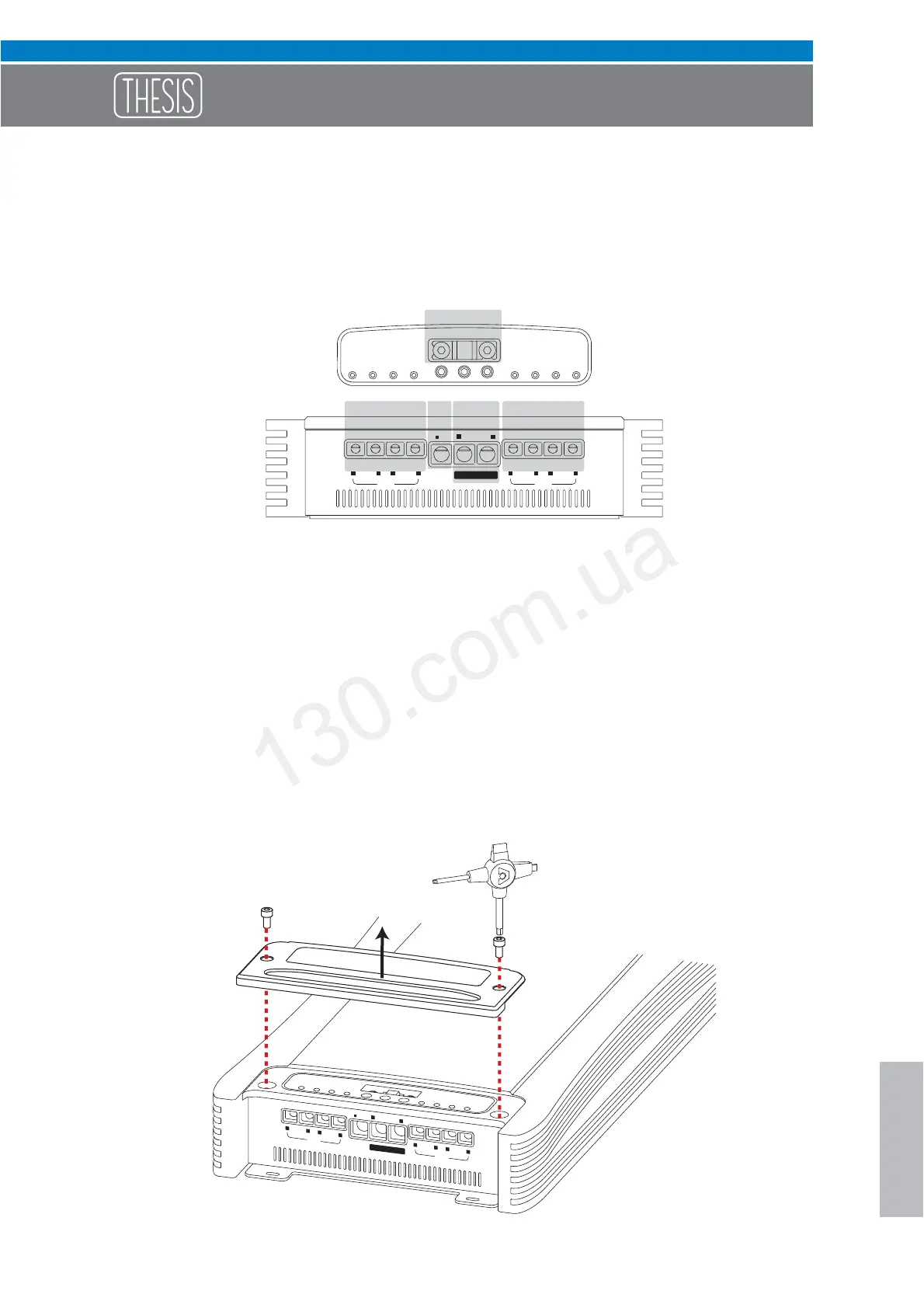

Functions Description
How to remove the panel / the protection knob
