OWNER’S MANUAL / TH quattro
Classic domain
8
8
5
132
97 6 4
0
5
8
7
64
3
2
19
IN A OUT A
IN A
IN B
IN B OUT A
DIGITAL AUDIODC OUT CONTROL BUS
REM
OUTINADRS
IN
OPTICAL
GND
+15
-15
OUT - AD Link - IN
LR LR
LR
LR
LRLR
1 - AC Link - 2
0
5
8
7
64
3
2
19
IN A
OUT A
IN A
IN B
IN B
OUT A
DIGITAL AUDIODC OUT CONTROL BUS
REM
OUTINADRS
IN
OPTICAL
GND
+15
-15
OUT - AD Link - IN
LR LR
LR
LR
LRLR
1 - AC Link - 2

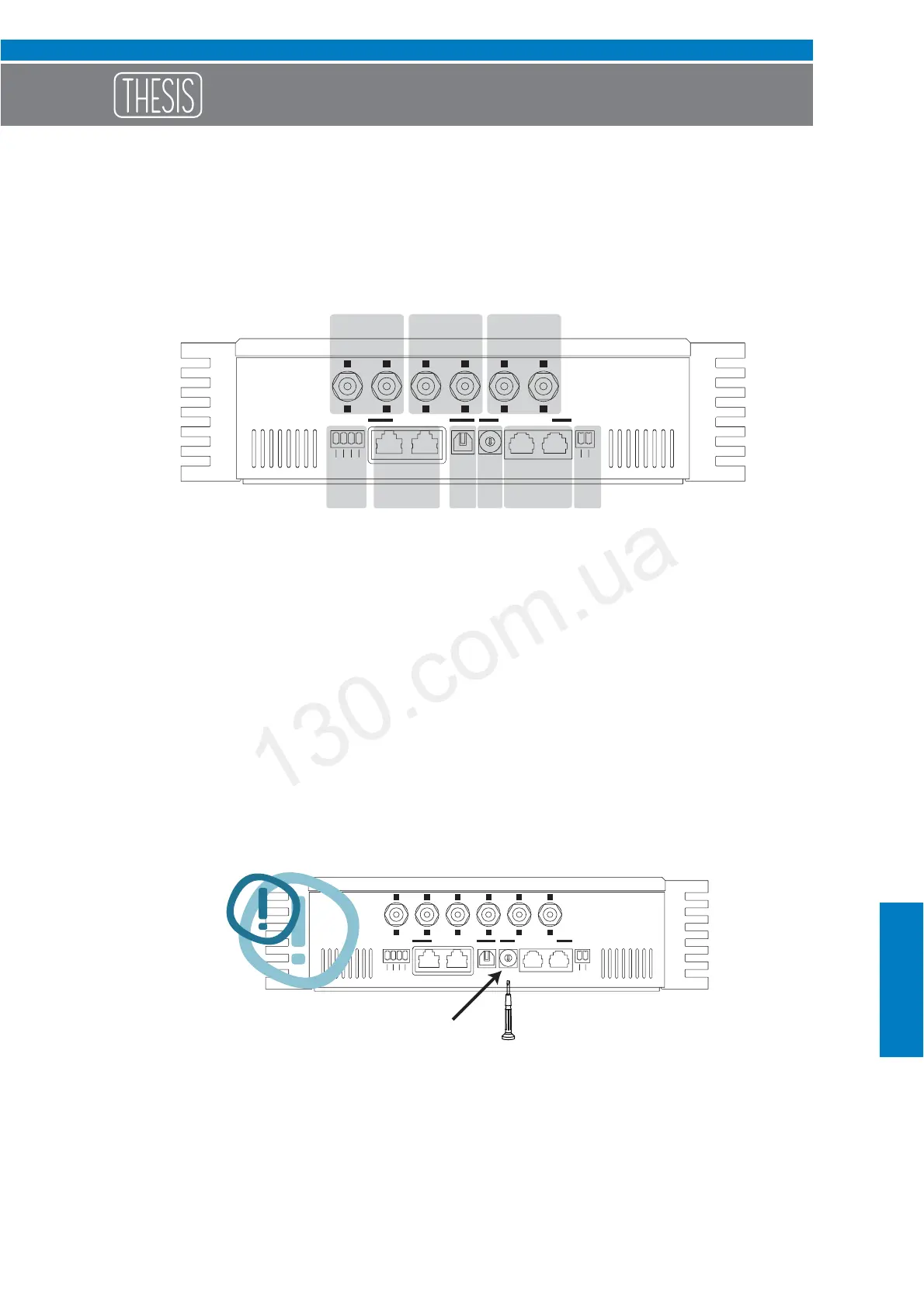

Functions Description
Front Panel
1 • IN A: Analog Left / Right A channels Input
2 • IN B: Analog Left / Right B channels Input
3 • OUT A: Bypass Analog Output Left / Right. It’s the same signal of IN A inputs. To check out how they work
see page 20 w 22 and 37 w 40
4 • REM IN/OUT: Turn On Remote Input and Output for other devices
5 • DC OUT: ±15 V supply for external devices
CONTROL BUS
6 • AC Link 1 and 2: RJ-12 terminals to connect other devices provided with AC Link such as TH amplifiers,
DRC (Digital Remote Control), Audio Digital Processors, AC Link/USB Adapter for Personal Computer
connection. The use of connector 1 or 2 is interchangeable. The RJ-12 connectors provided cable is
normally used for digital telephone connection. It features 6-way connectors. The AC Link connection can
give power supply to the amplifier external devices.
7 • ADRS: It’s the digital address of the amplifier when you want to realize a system with more than one TH.
Switch selector from 0 to 9 to set in a different number on each TH amplifier of the AC Link network.
Maximum allowed chain amplifiers number is 10. Warning: if the same number is set for two or more
amplifiers, the AC Link network does not work. The selected number is shown on Status display.
DIGITAL AUDIO IN/OUT
8 • AD Link: is an Audio Digital Bus that can carry 8 channels. It employs a Class 5 or 6 shielded Ethernet LAN
cable with the provided shielded connectors, normally used in computer networks.
- AD Link IN: RJ-45 terminal input to connect digital audio coming from previous TH amplifier or the
provided external device AD Link such as Digital Audio Processor.
- AD Link OUT: RJ-45 terminal output to connect to the next TH amplifier.
9 • OPTICAL IN: Input to connect the provided optical cable with TOSLINK connectors. The optical audio
digital signal in S/PDIF standard is supplied from provided sources such as CD/DVD players.
It accepts input PCM stereo signals up to 192 kHz / 24 bit.
