Amplifier Status

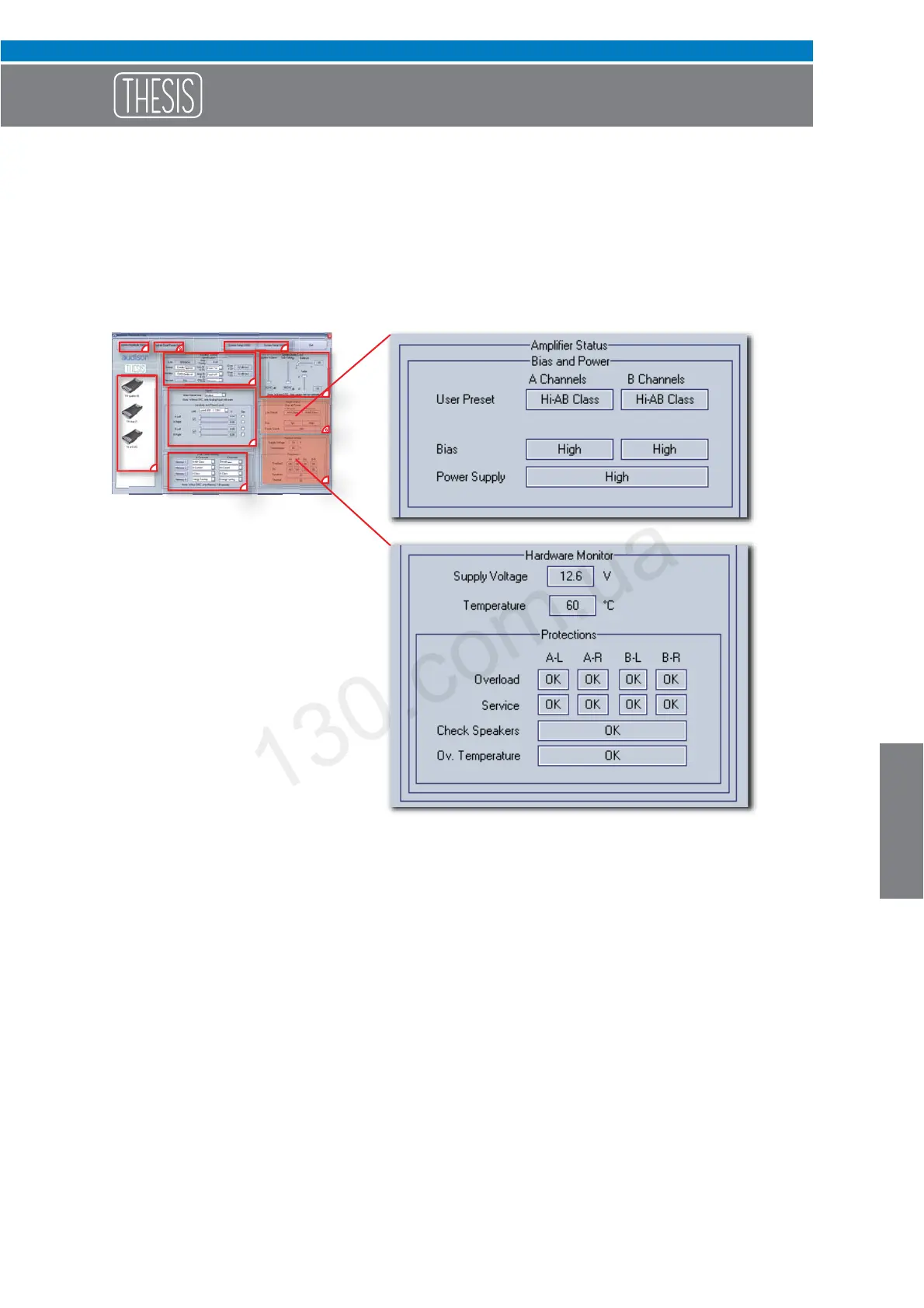

The ACNet software performs a real-time check-up of the amplifiers operating conditions.
Once an amplifier is selected, the parameters monitored by the ASC microprocessor are shown on the specific
boxes.
Bias and Power
- User preset: displays the operating modes selected in the Dual Power Setting. For the TH quattro the
operating modes of both channels A and B are shown.
- Bias: displays the bias current value corresponding to the preset in use.
- Power Supply: displays the power supply value corresponding to the preset in use.
Hardware Monitor
- Supply Voltage: displays the power supply voltage (V) measured on the amplifier terminals.
- Temperature: displays the amplifier working temperature measured in °C.
- Protections: the protection conditions are provided for each channel.
Overload: warns when an extremely low load has been connected to the amplifier speaker terminals
or when a temporary overload has occurred;
Service: warns when DC current is coming out of the speaker terminals;
Speakers: warns when a short-circuit has occurred in the connection between amplifier and speakers;
Ov. Temperature: warns when an operating temperature, dangerous for the amplifier, has been
reached.
