Audison Thesis TH quattro - How to Connect a Source through the Optical Digital Input in a System Featuring more than One TH Amplifier

37
OWNER’S MANUAL / TH quattro
Digital domain
0
5
8
7
64
3
2
19
IN A
OUT A
IN A
IN B
IN B OUT A
DIGITAL AUDIODC OUT CONTROL BUS
REM
OUTINADRS
IN
OPTICAL
GND
+15
-15
OUT - AD Link - IN
LR LR
LR
LR
LRLR
1 - AC Link - 2
REM Out
Digital (Optical) Out
AD Link Digital In
AC Link In
REM In
Front Panel
Input: Digital Optical S/P DIF
Pre Out: Digital AD Link (Repeats the IN OPTICAL signal)
Power Output: 4 / 3 / 2 Ch

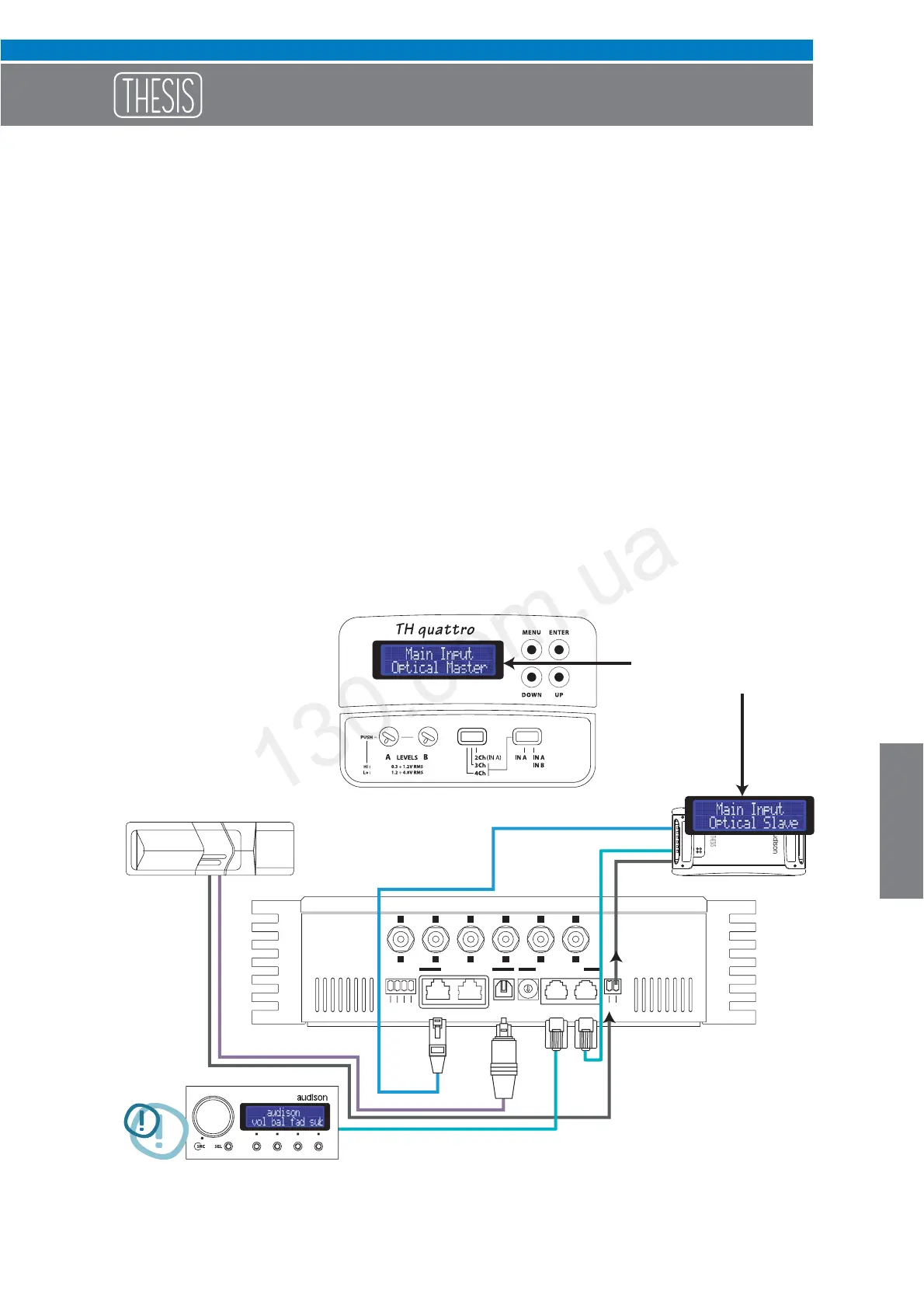

How to connect a source through the optical digital
input in a system featuring more than one TH amplifier
TH configured in 4 / 3 / 2 Ch Mode
In this case the DRC is REQUIRED to:
- Adjust the general volume
- Select the optical input
PRE OUT:
anyway available, see page 38
Setting changed
See page 34
