Audison Thesis TH quattro - Power & Speaker Connections

12
OWNER’S MANUAL / TH quattro
General
L: min 16 mm (5/8”)
L: max 26 mm (1”)
Ø MAX: 2 AWG
12 V
mono
mono
A Channels
B Channels
POWER
LEFT
RIGHT
+
-
+
CAP
+
+
-
-
LEFT
RIGHT
+
+
-
-
+
-
+
-
FUSE 100A
B Channels
LEFT
RIGHT
A Channels
+
-
+
-
LEFT
RIGHT
-
12V
 
CAP
Super
Capacitor
Ground
Battery
Fuse Holder
Ground
Rear Panel

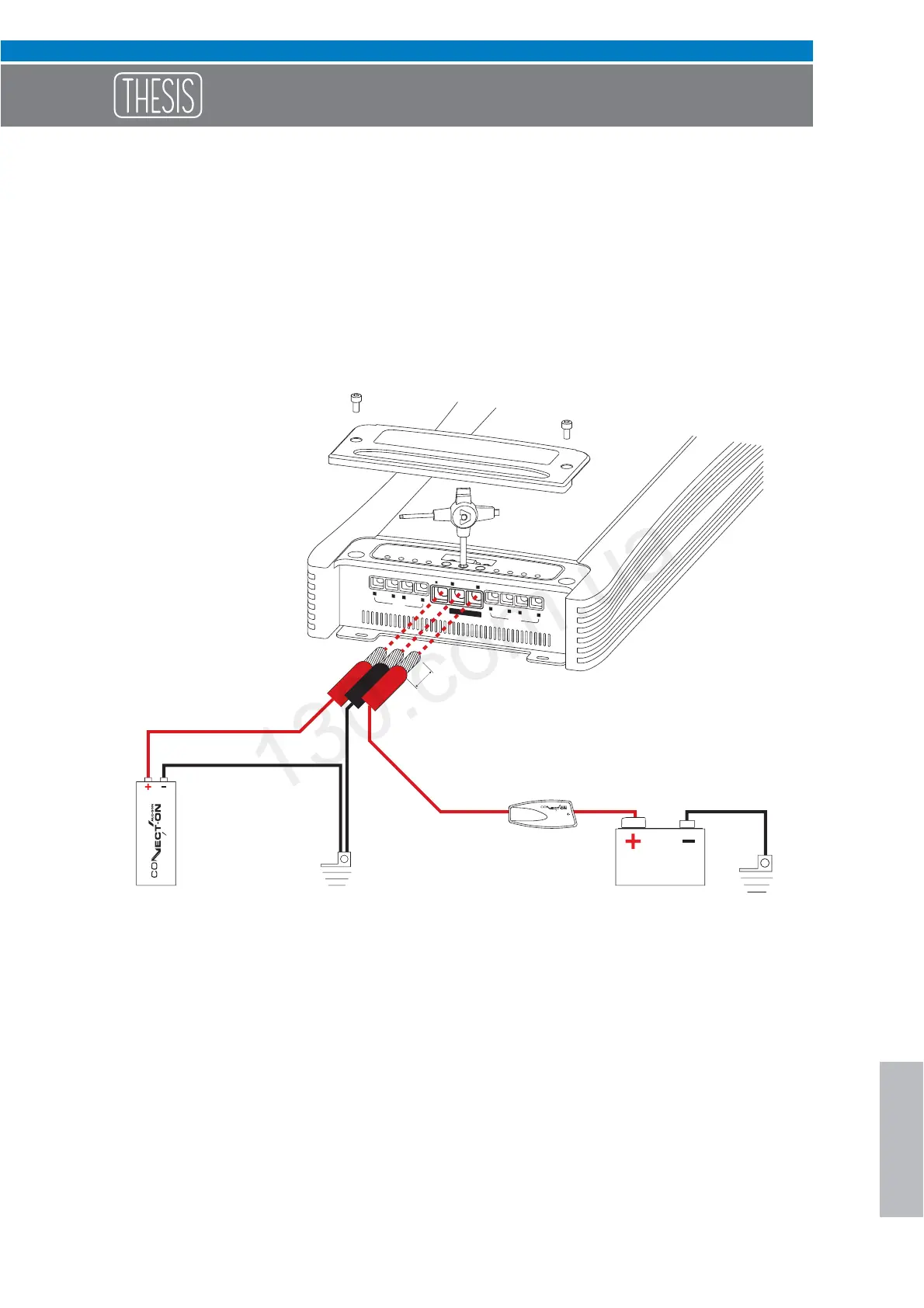

How to connect the power supply
