OWNER’S MANUAL / TH quattro
Digital domain
0
5
8
7
64
3
2
19
IN A
OUT A
IN A IN B
OUT A
DIGITAL AUDIODC OUT CONTROL BUS
REM
OUTINADRS
IN
OPTICAL
GND
+15
-15
OUT - AD Link - IN
LR LR
LRLRLR
1 - AC Link - 2
REM Out
Digital (Optical) Out
AD Link Digital In
AC Link In
REM In
Front Pre Out
Stereo Pre In
Rear Pre Out (Optional)Rear Pre Out (Optional
)
Front Panel
Input: Analog/Digital Optical S/P DIF
Pre Out: Analog/Digital AD Link
Power Output: 4 / 3 / 2 Ch

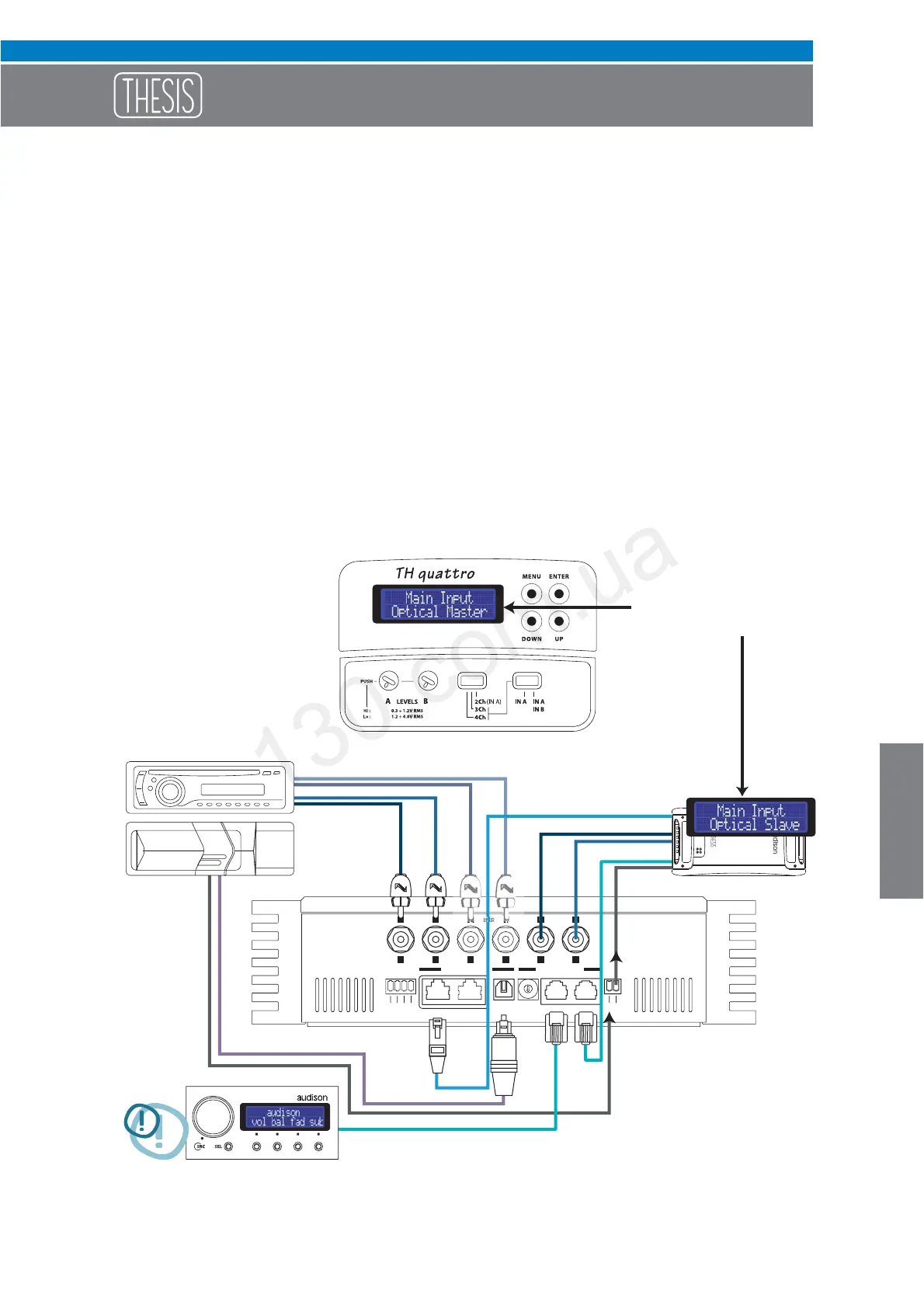

How to connect an analog and a digital source in
a system featuring more than one TH amplifier
TH configured in 4 / 3 / 2 Ch Mode
In this case the DRC is REQUIRED to:
- Adjust general volume
- Select the optical input
PRE OUT:
anyway available, see page 40
Setting changed
See page 34
