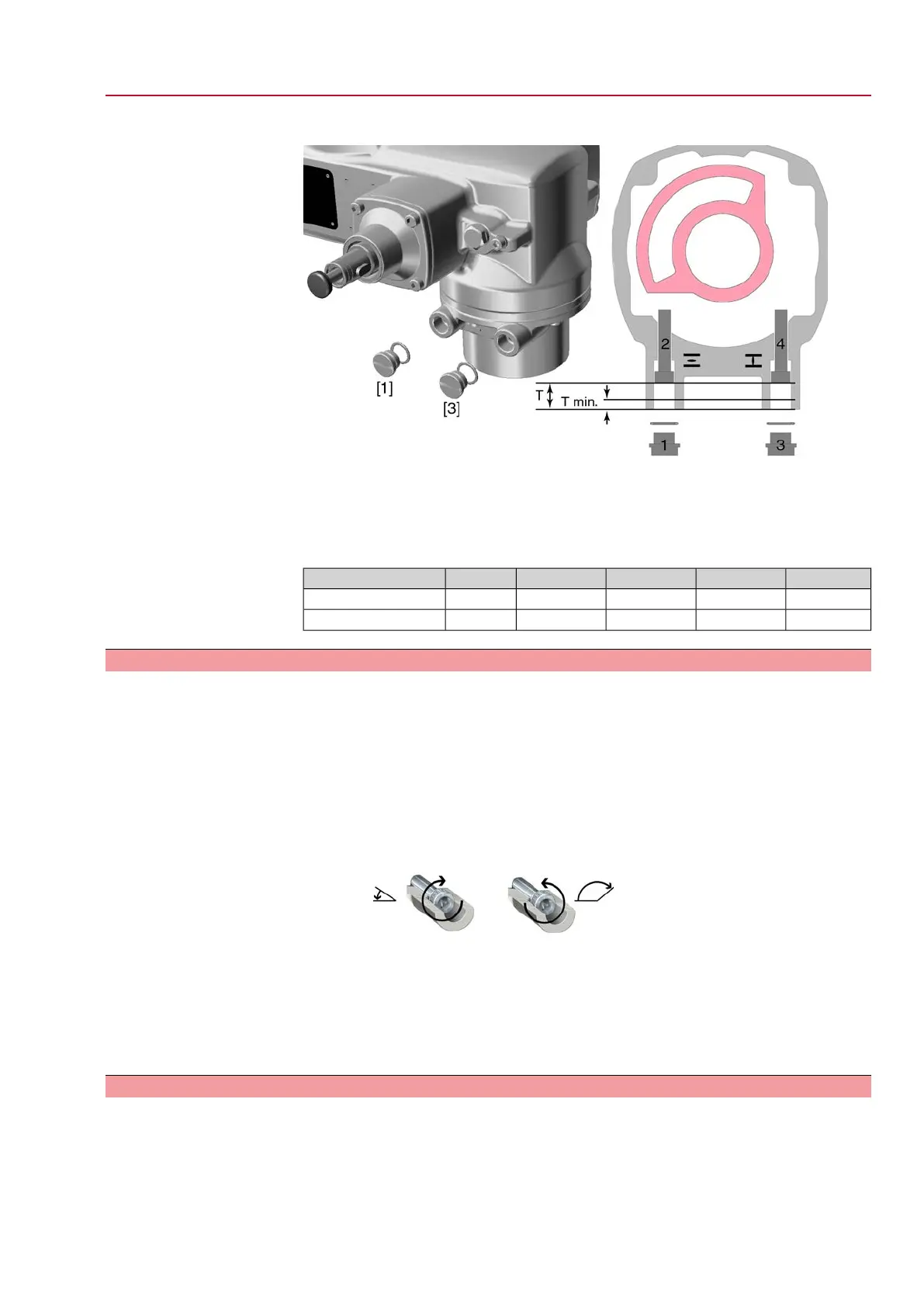

Figure 57: End stop
[1] Screw plug for end stop OPEN
[2] Setting screw for end stop OPEN
[3] Screw plug for end stop CLOSED
[4] Setting screw for end stop CLOSED
14.212.210.207.205.2Dimensions/sizes
2323201717T (for 90°)
1213121111T
min.
10.1.1. Set end stop CLOSED
1. Remove screw plug [3].
2. Move valve to end position CLOSED with handwheel.
3. If the valve end position is not reached:
→
Slightly turn setting screw [4] counterclockwise until valve end position
CLOSED can be safely set.
➥
Turning the setting screw [4] clockwise results in a smaller swing angle.
➥
Turning the setting screw [4] counterclockwise results in a larger swing
angle.
4. Turn setting screw [4] clockwise to the stop.
➥
This completes the setting of end stop CLOSED.
5. Check O-ring of screw plug for seat and condition, replace if damaged.
6. Fasten and tighten screw plug [1].
Having completed this procedure, the end position detection CLOSED can be set
immediately.
10.1.2. Set end stop OPEN
Information In general, the end stop OPEN does not have to be set.
1. Remove screw plug [1].
2. Move valve to end position OPEN with handwheel.
47
SQ 05.2 – SQ 14.2/SQR 05.2 – SQR 14.2 Control unit: electronic (MWG)
AC 01.2 Non-Intrusive Commissioning (basic settings)
