6.3. Accessories for electrical connection
6.3.1. Actuator controls on wall bracket

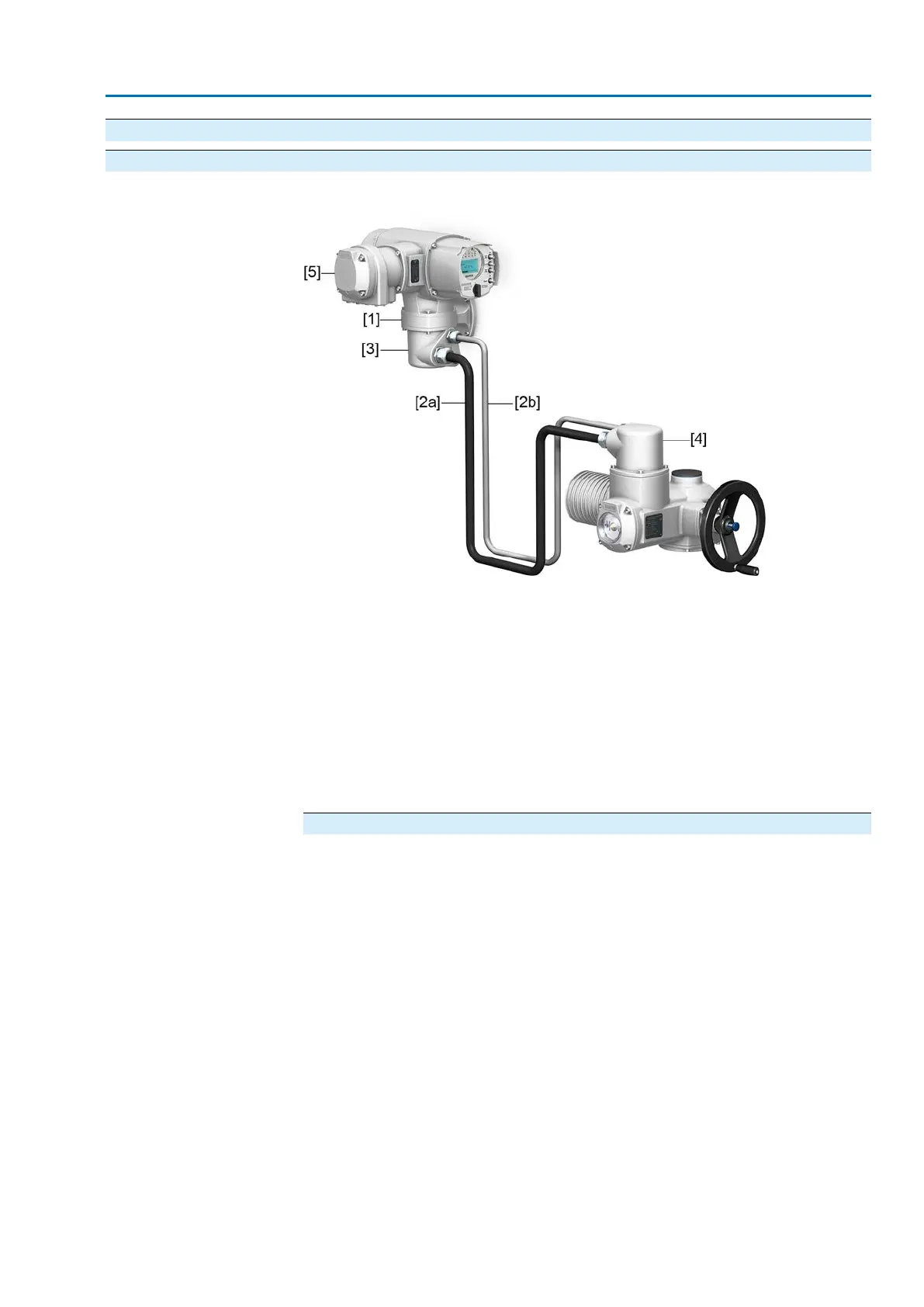

Design Figure 32: Design principle with wall bracket (example)
[1] Wall bracket
[2a] Motor connection/motor control
[2b] Feedback signals from actuator
[3] Electrical connection of wall bracket (XM)
[4] Electrical connection of actuator (XA)
[5] Electrical connection of actuator controls (XK)
Application
The wall bracket allows separate mounting of actuator controls and actuator.
●
If the actuator cannot be accessed safely.
●
If the actuator is subjected to high temperatures.
●
In case of heavy vibration of the valve.
Information on installation with wall bracket
●
The permissible cable length between actuator controls on wall bracket and
the actuator amounts to 100 m maximum.
●
If the actuator is equipped with a position transmitter (EWG, RWG):
- Use suitable flexible and screened connecting cables.
- Earth cable shield at both ends.
- Versions with potentiometer in the actuator are not suitable.
●
We recommend using an AUMA “LSW” cable set .
●
If the AUMA cable set is not used: Use suitable flexible and screened connecting
cables.
●
When using connecting cables, e.g. of the heater or switch, requiring direct
wiring from the actuator to the XK customer plug (XA-XM-XK, refer to wiring
diagram), these connecting cables must be subject to an insulation test in
compliance with EN 50178. Connecting cables of position transmitters (EWG,
RWG, IWG, potentiometer) do not belong to this group. They may not be sub-
jected to an insulation test.
