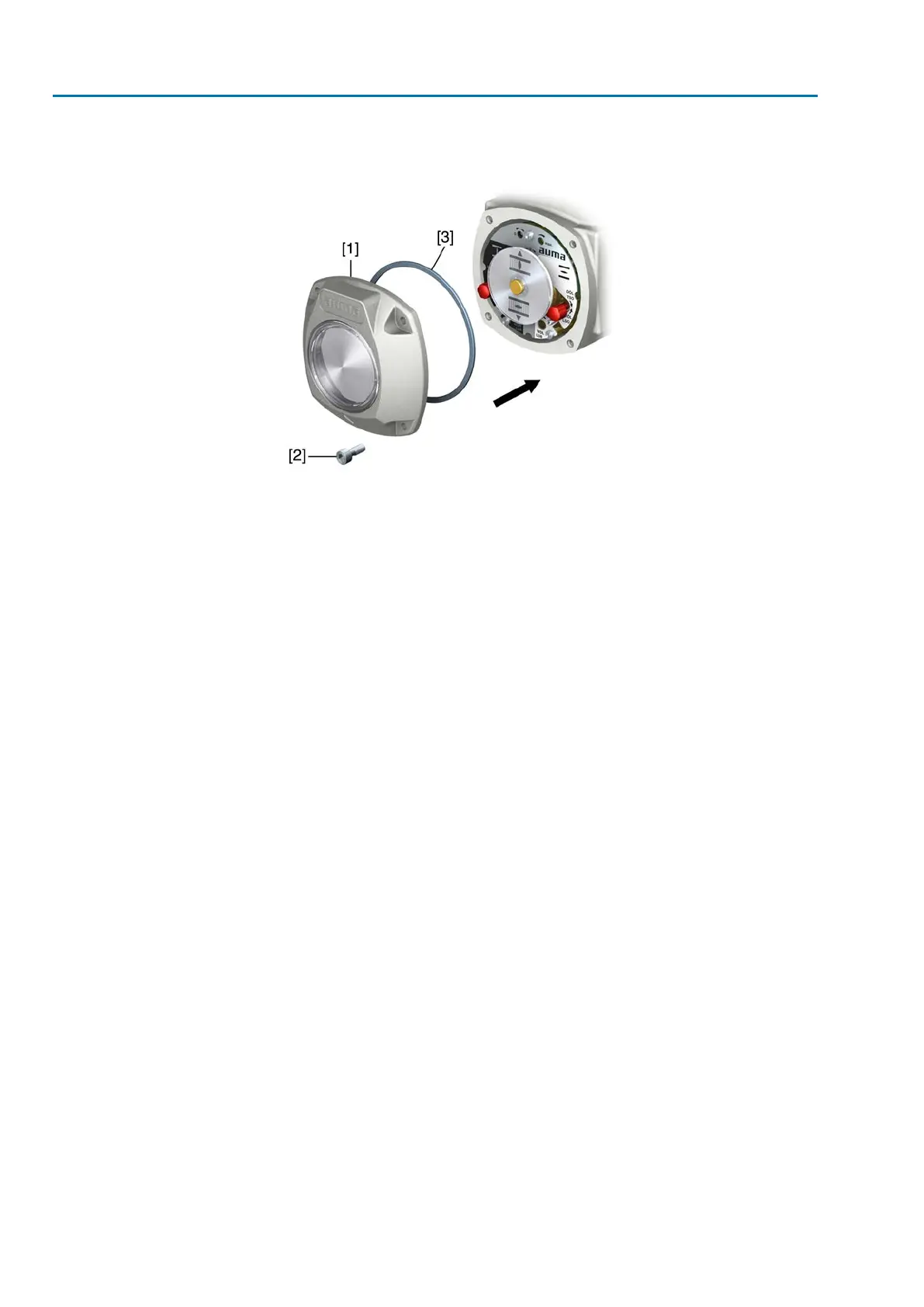

3.
Apply a thin film of non-acidic grease (e.g.
petroleum jelly) to the O-ring and
inser
t it correctly
.
Figure 70:
4.
Place cov
er [1] on s
witch compar
tment.
5.
F
asten screws [2] e
venly cross
wise.
62
SA 07.2
–
SA 16.2/SAR 07.2
–
SAR 16.2 Control unit - electromechanical
Commissioning (basic settings)
A
C 01.2 Intrusive Modbus R
TU
61
63
Table of Contents
Default Chapter
2
Table of Contents
2
1 Safety Instructions
5
Prerequisites for the Safe Handling of the Product
5
Range of Application
5
Warnings and Notes
6
References and Symbols
6
2 Short Description
7
3 Name Plate
9
4 Transport and Storage
13
Transport
13
Storage
15
5 Assembly
16
Mounting Position
16
Handwheel Fitting
16
Mount Actuator to Valve
16
Overview of Output Drive Types
17
Output Drive Type a
17
5.3.2.1. Multi-Turn Actuator with Output Drive Type A: Mount
18
5.3.2.2. Stem Nut for Output Drive Type A: Finish Machining
20
Output Drive Types B/C/D and E
21
5.3.3.1. Multi-Turn Actuator with Output Drive Type B: Mount
22
Accessories for Assembly
23
Stem Protection Tube for Rising Valve Stem
23
Mounting Positions of Local Controls
24
Mounting Positions: Modify
24
6 Electrical Connection
25
Basic Information
25
SD Electrical Connection (AUMA Plug/Socket Connector)
28
Terminal Compartment (for Mains Connection): Open
29
Cable Connection
30
Terminal Compartment (for Mains Connection): Close
31
Fieldbus Terminal Compartment: Open
32
Fieldbus Cables: Connect
33
Fieldbus Terminal Compartment: Close
34
Accessories for Electrical Connection
35
Actuator Controls on Wall Bracket
35
Parking Frame
36
DS Intermediate Frame for Double Sealing
36
External Earth Connection
37
Operation
38
Manual Operation
38
Manual Valve Operation
38
Motor Operation
39
Operating the Actuator from Local Controls
39
Actuator Operation from Remote
40
Menu Navigation Via Push Buttons (for Settings and Indications)
40
Menu Layout and Navigation
41
User Level, Password
42
Password Entry
43
Password Change
43
Timeout for Incorrect Password Entry
44
Language in the Display
44
Language Change
44
Indications
46
Indications During Commissioning
46
Indications in the Display
46
Feedback Signals from Actuator and Valve
47
Status Indications According to AUMA Classification
49
Status Indications According to NAMUR Recommendation
50
Indication Lights of Local Controls
51
Optional Indications
52
Mechanical Position Indication Via Indicator Mark
52
Signals (Output Signals)
53
Status Signals Via Output Contacts (Digital Outputs)
53
Assignment of Outputs
53
Coding the Outputs
53
Analogue Signals (Analogue Outputs)
53
Commissioning (Basic Settings)
54
Type of Seating: Set
54
Fieldbus Address (Slave Address), Baud Rate, Parity and Monitoring Time: Set
55
Open Switch Compartment
55
Torque Switching: Set
56
Limit Switching: Set
57
End Position CLOSED (Black Section): Set
57
End Position OPEN (White Section): Set
57
Intermediate Positions: Set
58
Running Direction CLOSE (Black Section): Set
58
Running Direction OPEN (White Section): Set
59
Test Run
59
Direction of Rotation at Mechanical Position Indicator: Check
59
Direction of Rotation at Hollow Shaft/Stem: Check
60
Limit Switching: Check
61
Reference Operation Position Feedback: Perform
61
Close Switch Compartment
61
Commissioning (Optional Equipment Settings)
63
EWG 01.1 Electronic Position Transmitter
63
Measuring Range: Set
64
Current Values : Adjust
65
LED End Position Signalling: Switch On/Off
65
Potentiometer
65
Potentiometer: Set
66
RWG Electronic Position Transmitter
66
Measuring Range: Set
67
Mechanical Position Indicator: Set
67
Corrective Action
69
Faults During Commissioning
69
Fault Indications and Warning Indications
69
Fuses
74
Fuses Within the Actuator Controls
74
Fuse Replacement
74
Replace Fuses
74
Test/Replace Fuses
75
Motor Protection (Thermal Monitoring)
75
Servicing and Maintenance
77
Preventive Measures for Servicing and Safe Operation
77
Maintenance
78
Disposal and Recycling
78
Technical Data
79
Technical Data Multi-Turn Actuators
79
Technical Data Actuator Controls
81
Tightening Torques for Screws
87
Spare Parts
88
Multi-Turn Actuators SA
88
Sa 16.2/Sar 07.2
88
AC 01.2 Actuator Controls with SD Electrical Connection
90
Index
92
Other manuals for AUMA SA 07.2
Operation Manual
108 pages
Manual
24 pages
Assembly Instructions
3 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the AUMA SA 07.2 and is the answer not in the manual?
Ask a question
