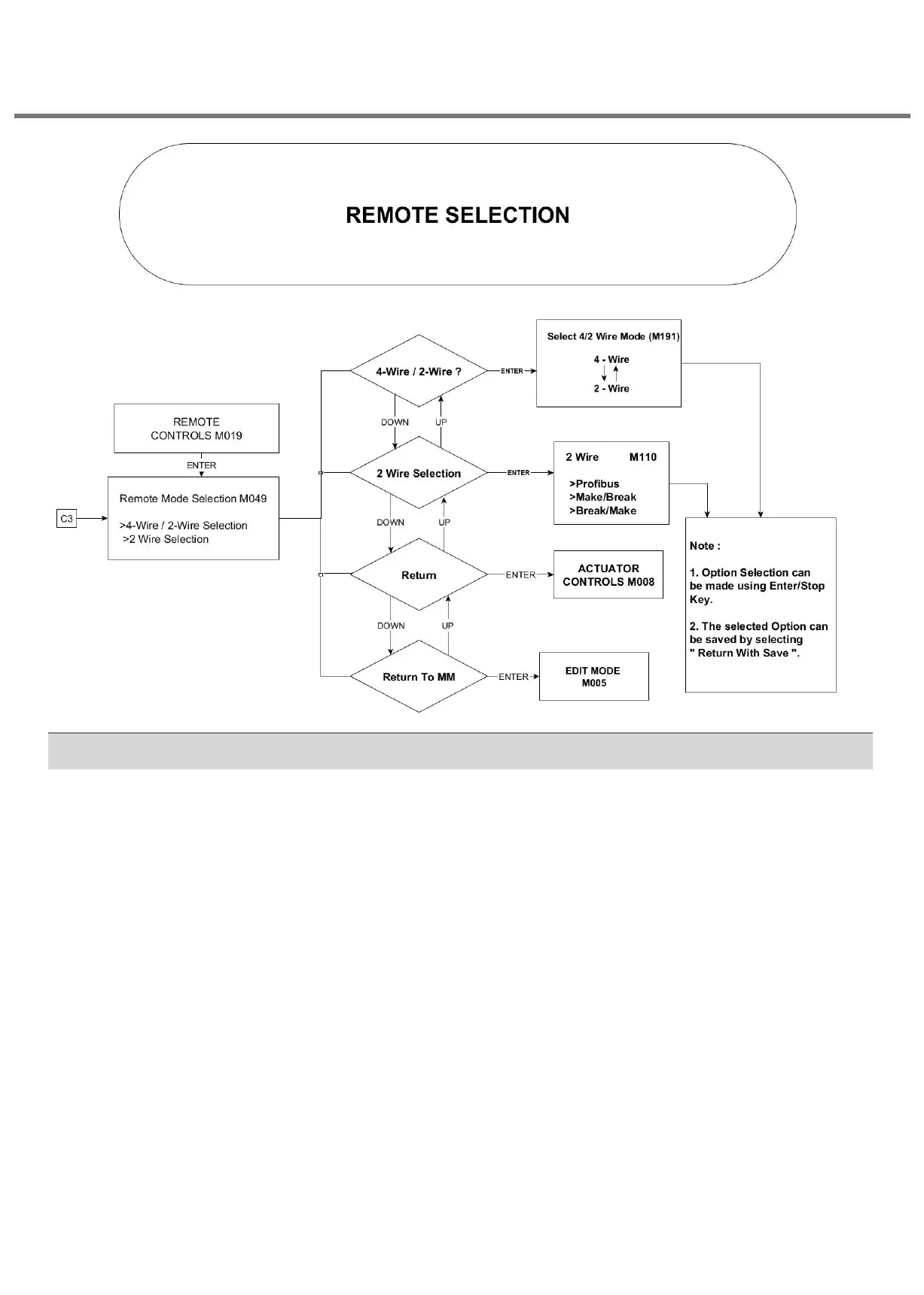

There are two main relays available for setting different faults/ actuator status. These are
Fault relay and Optional Relay.
The default configurations for Fault relay are:
1. 24V supply fail Enable /Disable
2. Control supply fail Enable /Disable
3. Single phasing
4. Open Torque Trip
5. Close Torque Trip
6. Jammed Valve
7. Thermal Switch Trip
Note: The default configurations for Optional relay are: TOLR Trip
There are about 25 features/ conditions available as shown below which the user can
choose set for either of the relays. Note that during the relay setting selection, one or
multiple option can be selected for the same relay.
1. Opened (Open Limit Trip)
2. Closed (Close Limit Trip)
3. Remote Local stop
4. Local Stop
