AUMA SAEx 07.2 Operation Instructions

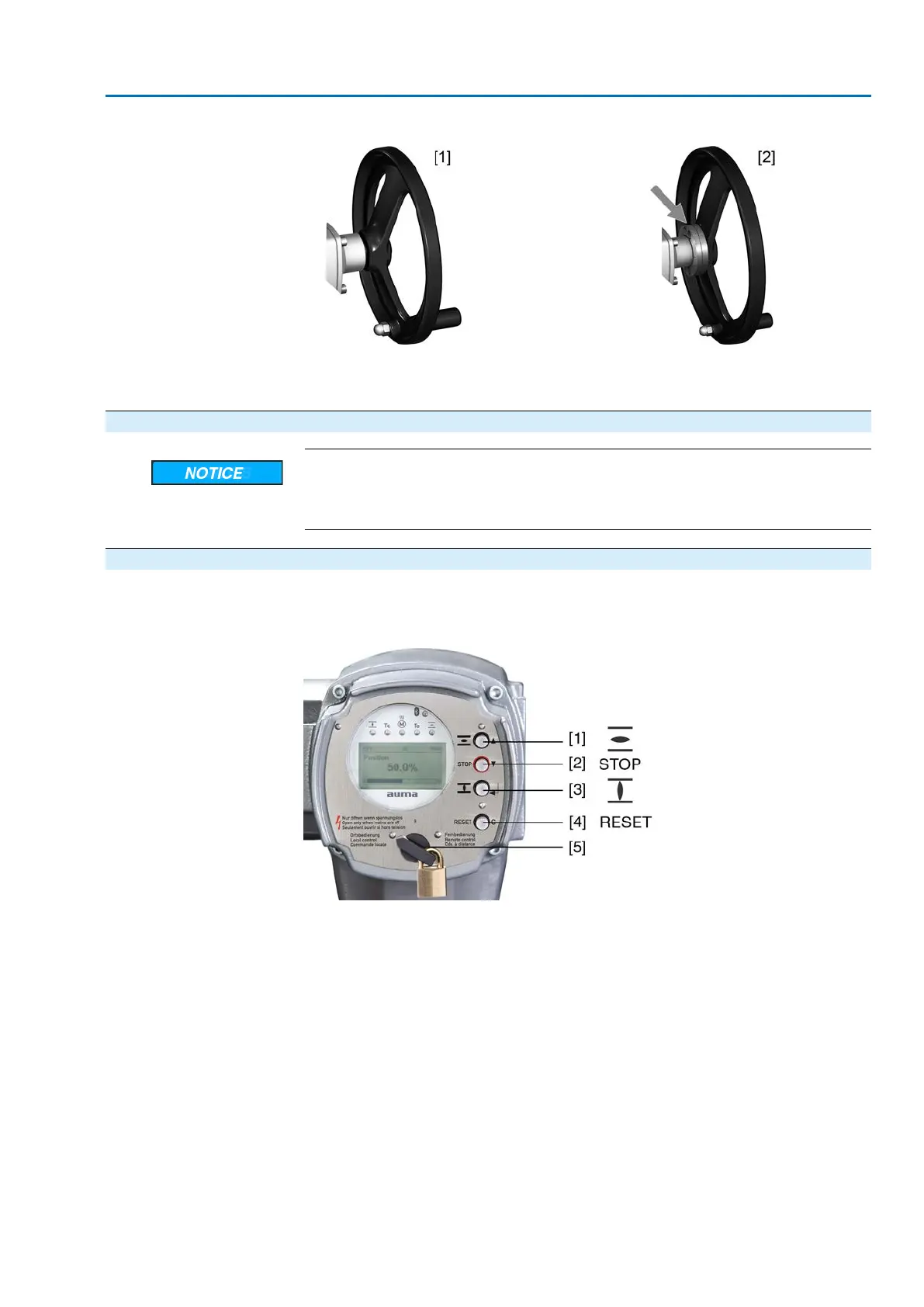

Figure 36: Handwheel without/with overload protection
[1] Handwheel without overload protection (standard)
[2] Handwheel with overload protection/safety hub (option)
7.2. Motor operation
Valve damage due to incorrect basic setting!
→
Prior to electric actuator operation, perform the basic settings for “type of seating”
and “torque switching”.
7.2.1. Operating the actuator from local controls
Local actuator operation is performed using the local controls push buttons of actuator
controls.
Figure 37: Local controls
[1] Push button for operation command in direction OPEN
[2] Push button STOP
[3] Push button for operation command in direction CLOSE
[4] Push button RESET
[5] Selector switch
41
SAEx 07.2 – SAEx 16.2/SAREx 07.2 – SAREx 16.2 Control unit - electromechanical
