Descriptions referring to name plate indications

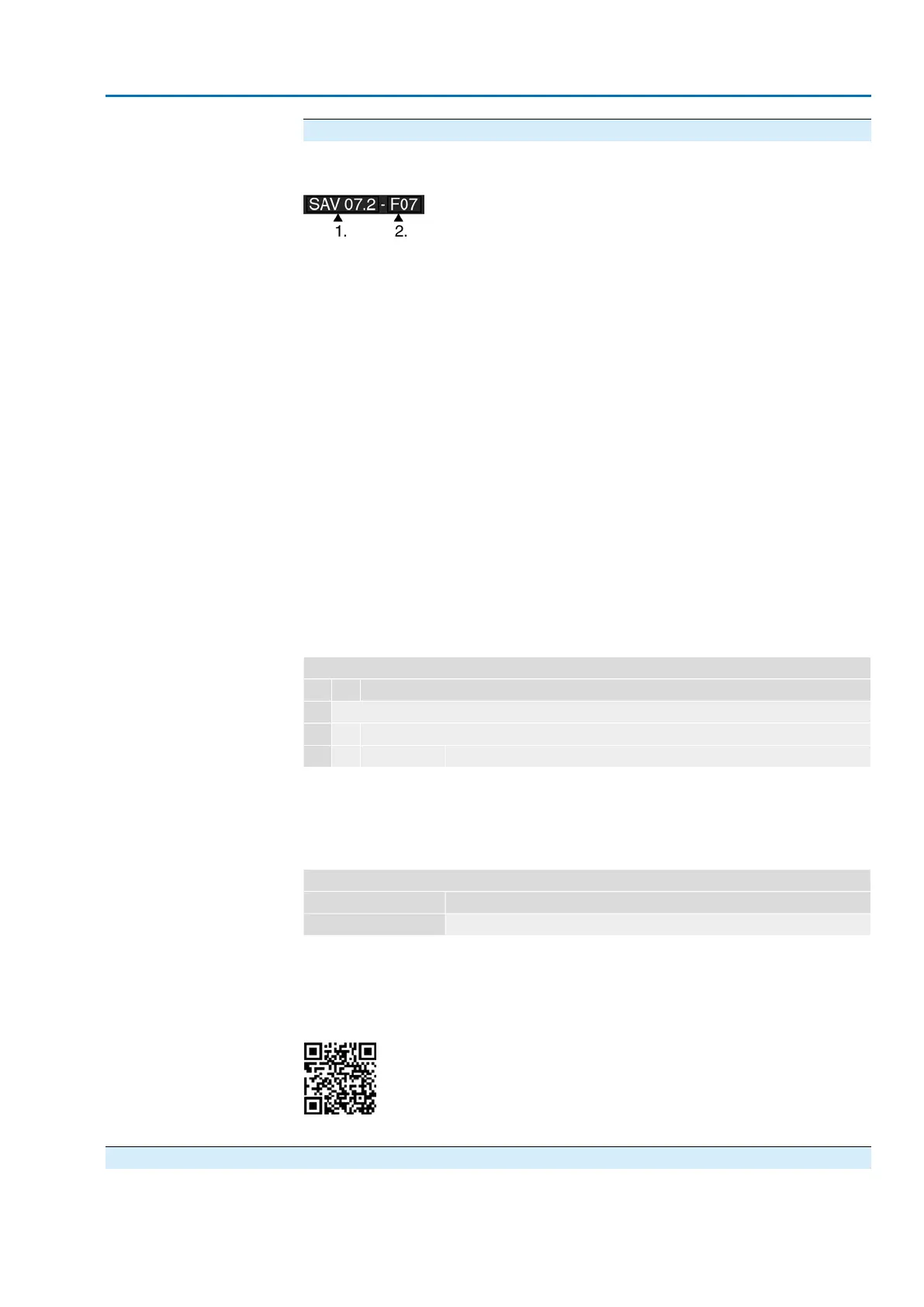

Type designation Figure 5: Type designation (example)
1. Type and size of actuator
2. Flange size
Type and size
These instructions apply to the following devices types and sizes:
●
SA..... = Type = Multi-turn actuators for open-close duty
.....V... = Variable speed
Sizes and generation: 07.2, 07.6, 10.2, 14.2, 14.6, 16.2
●
SAR.... = Type = Multi-turn actuators for modulating duty
......V.... = Variable speed
Sizes and generation: 07.2, 07.6, 10.2, 14.2, 14.6, 16.2
●
AC..... = Type = AC actuator controls
.....V... = For variable speed actuators
Size and generation: 01.2
Order number
The product can be identified using this number and the technical data as well as
order-related data pertaining to the device can be requested.
Please always state this number for any product inquiries.
On the Internet at http://www.auma.com > Service & Support > myAUMA, we offer
a service allowing authorised users to download order-related documents such as
wiring diagrams and technical data (both in German and English), inspection certificate
and the operation instructions when entering the order number.
Actuator serial number
Table 2:
Description of serial number (with example 0516MD12345)
MD123451605
Positions 1+2: Assembly in week = week 0505
Positions 3+4:Year of manufacture = 201616
Internal number for unambiguous product identificationMD12345
Actuator terminal plan
Position 9 after TPA: Position transmitter version
I = MWG (magnetic limit and torque transmitter)
Control
Table 3:
Control examples (indications on actuator controls name plate)
DescriptionInput signal
Control via Modbus TCP/IP interfaceModbus TCP/IP
Control via Modbus TCP/IP interface and control voltage for OPEN-CLOSE
control via digital inputs (OPEN, STOP, CLOSE)
Modbus TCP/IP/24 V DC
Data Matrix code
When registered as authorised user, you may use our AUMA Assistant App to scan
the Data Matrix code and directly access the order-related product documents without
having to enter order number or serial number.
Figure 6: Link to AUMA Assistant App:
For further Service & Support, software/apps/... refer to www.auma.com.
11
SAV 07.2 – SAV 16.2 / SARV 07.2 – SARV 16.2 Control unit: electronic (MWG)
ACV 01.2 Modbus TCP/IP Identification
