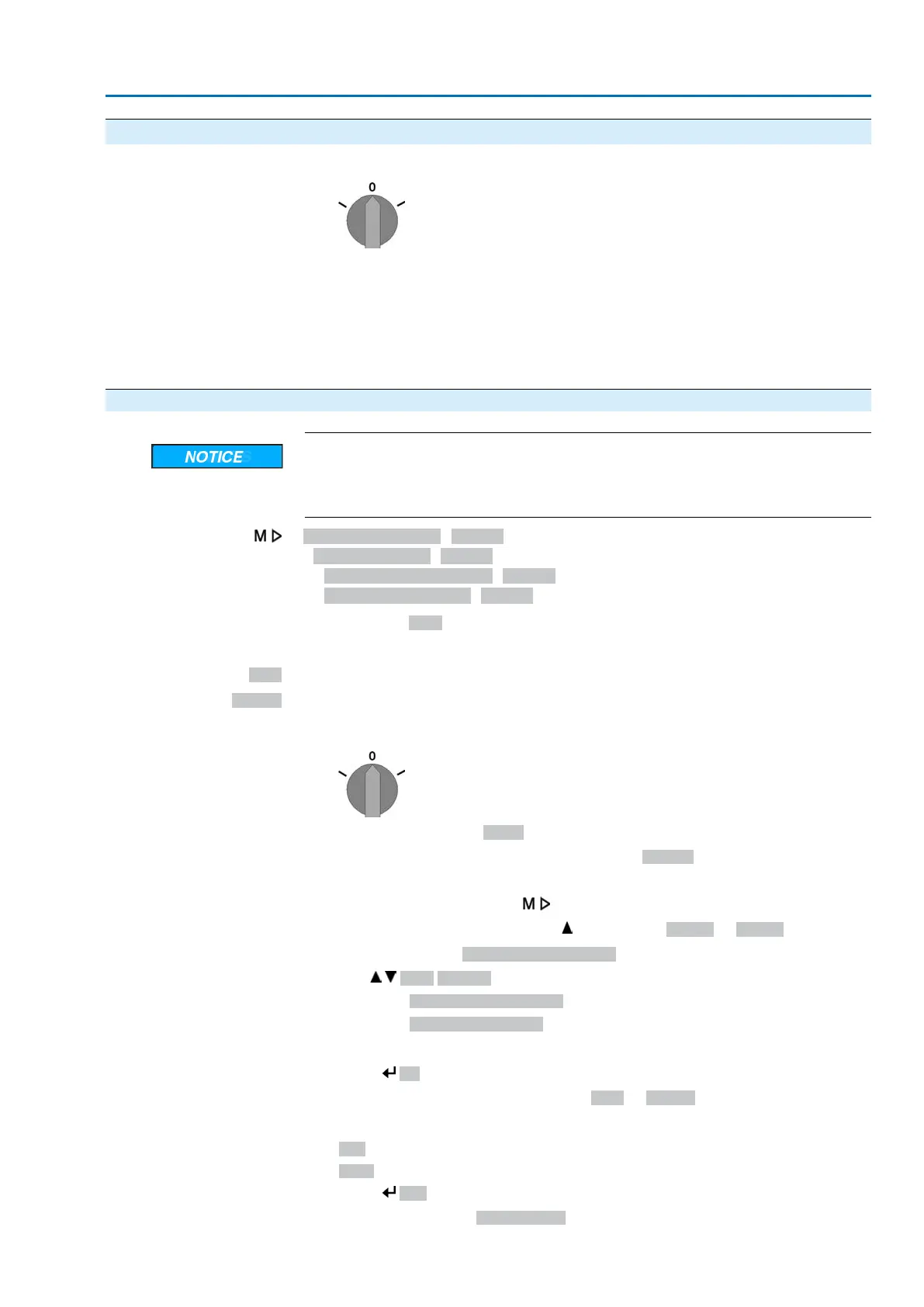

9. Commissioning (basic settings)
1. Set selector switch to position 0 (OFF).
Information: The selector switch is not a mains switch.When positioned to 0
(OFF), the actuator cannot be operated.The controls' power supply is
maintained.
2. Switch on the power supply.
Information: Observe heat-up time for ambient temperatures below –30 °C.
3. Perform basic settings.
9.1. Type of seating: set
Valve damage due to incorrect setting!
→
The type of seating must suit the valve.
→
Only change the setting with the consent of the valve manufacturer.
Customer settings M0041
Type of seating M0012
End position CLOSED M0086
End position OPEN M0087
Default value: Limit
Setting values:
Limit
Seating in end positions via limit switching.
Torque
Seating in end positions via torque switching.
Select main menu
1. Set selector switch to position 0 (OFF).
2.
Press push button C Setup and hold it down for approx. 3 seconds.
➥
Display goes to main menu and indicates: ▶ Display
Select parameter
3. Select parameter either:
→
click via the menu to parameter, or
→
via direct display: Press and enter ID M0086 or M0087
➥
Display indicates: End position CLOSED
CLOSE or OPEN
4.
Use Up ▲ Down ▼ to select:
→
▶ End position CLOSED
→
▶ End position OPEN
➥
The black triangle ▶ indicates the current selection.
5.
Press Ok.
➥
Display indicates the current setting: Limit or Torque
➥
The bottom row of the display indicates either:
-
Edit → continue with step 6
-
Save → continue with step 10
6.
Press Edit.
➥
Display indicates: ▶ Specialist (4)
51
SAV 07.2 – SAV 16.2 / SARV 07.2 – SARV 16.2 Control unit: electronic (MWG)
ACV 01.2 Modbus TCP/IP Commissioning (basic settings)
