10.
Press Yes to accept new end position setting.
➥
Display indicates: End pos. CLOSED set!
➥

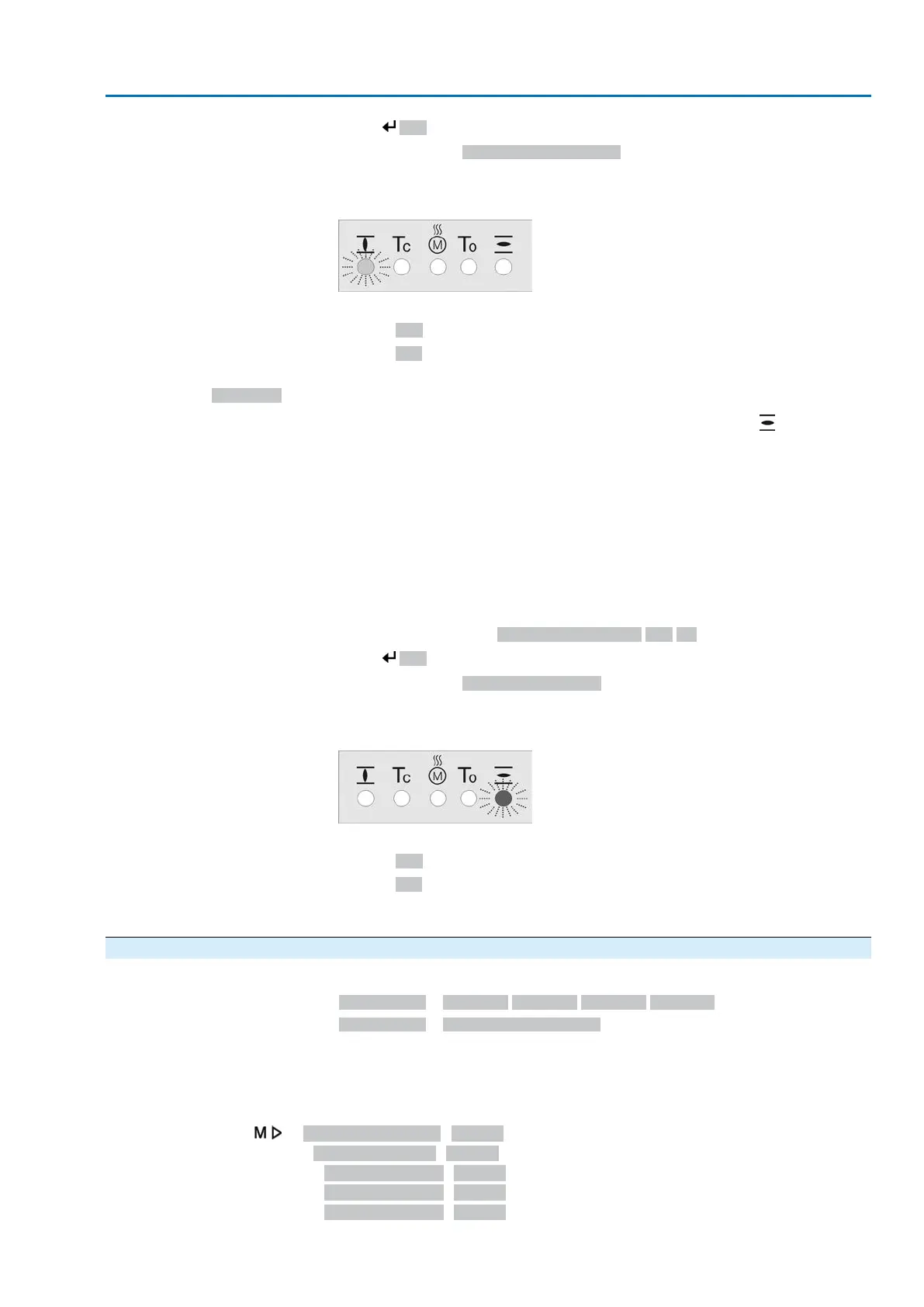

The left LED is illuminated (standard version) and thus indicates that the end
position CLOSED setting is complete.
11. Make selection:
→
Edit → back to step 9: Set end position CLOSED "once again"
→
Esc → back to step 4; either set end position OPEN or exit the menu.
Set end position OPEN
CMD0010
12. Re-set end position OPEN:
12.1 For large strokes: Set selector switch in position Local control (LOCAL)
and operate actuator in motor operation via push button (OPEN) in
direction of the end position.
Information: Stop actuator before reaching end of travel (press STOP
push button to avoid damage.
12.2 Engage manual operation.
12.3 Turn handwheel until valve is open.
12.4 Turn handwheel by approximately half a turn (overrun) in the opposite
direction of end position.
12.5 Set selector switch to position 0 (OFF).
➥
Display indicates: Set end pos. OPEN? Yes No
13.
Press Yes to accept new end position setting.
➥
Display indicates: End pos. OPEN set!
➥
The right LED is illuminated (standard version) and thus indicates that the end
position OPEN setting is complete.
14. Make selection:
→
Edit → back to step 12: Set end position OPEN "once again"
→
Esc → back to step 4; either set end position CLOSED or exit the menu.
Information
If an end position cannot be set: Check the type of control unit in actuator.
9.4. Output speed (internal): set
This setting is only required if a speed source is set to an internally specified speed
(Sp. source ... parameter = Internal 1/Internal 2/Internal 3/Internal 4/2 DigIn: "Internal
(1-4)"). If the actuator is only controlled via an external speed source, the internal
speed values described here will have no impact on the operation behaviour.
The adjustable speed range is indicated on the actuator name plate.
Customer settings M0041
Speed functions M1699
Speed internal1 M1930
Speed internal2 M1931
Speed internal3 M1932
Speed internal 4 M1933
Speed rem. min. M1936
Speed rem. max M1937
55
SAV 07.2 – SAV 16.2 / SARV 07.2 – SARV 16.2 Control unit: electronic (MWG)
ACV 01.2 Modbus RTU Commissioning (basic settings)
