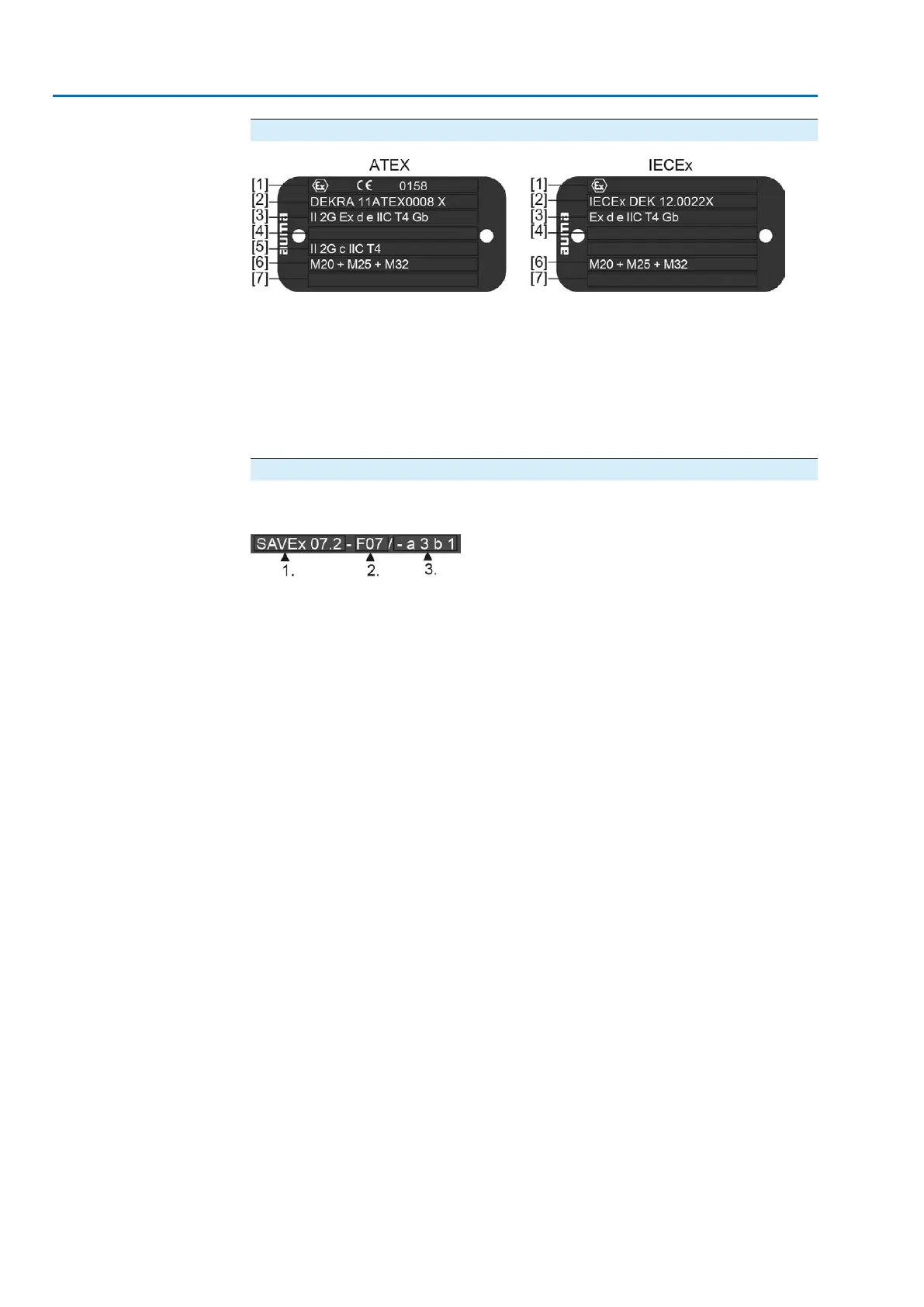

Approval plate in explosion-proof version
[1] Ex symbol, CE mark, number of test authority
[2] Ex certificate (number)
Classification:
[4] Not used
[5] Non-electrical explosion protection
[6] Threads for line bushings at electrical connection
[7] Not used
Descriptions referring to name plate indications
Type designation Figure 5: Type designation (example)
1. Type and size of actuator
2. Flange size
3. Ex marking
Type and size
These instructions apply to the following devices types and sizes:
●
SA..... = Type = Multi-turn actuator for open-close duty
.....V... = Variable speed
......Ex = Explosion-proof version
Sizes and generation: 07.2, 07.6, 10.2, 14.2, 14.6, 16.2
●
SAR.... = Type = Multi-turn actuator for modulating duty
......V.... = Variable speed
.......Ex = Explosion-proof version
Sizes and generation: 07.2, 07.6, 10.2, 14.2, 14.6, 16.2
●
AC..... = Type = AC actuator controls
.....V... = For variable speed actuators
......Ex = Explosion-proof version
Size and generation: 01.2
10
SAVEx 07.2 – SAVEx 16.2 / SARVEx 07.2 – SARVEx 16.2 Control unit: electronic (MWG)
Identification ACVExC 01.2 Non-Intrusive Modbus RTU
