10. Commissioning (settings/options in the actuator)
For actuators without mechanical position indicator (cover without indicator glass),
no settings are required within the actuator when commissioning.
When equipped with the self-adjusting mechanical position indicator [A], the position
indicator automatically adjusts upon the initial operation (e.g. from CLOSED to
OPEN).This self-adjustment is generally performed when setting the limit switches
(approaching the end positions). Manual setting and consequently opening the switch
compartment is not necessary when commissioning.
In case the mechanical position indicator integrated within the actuator is NOT
self-adjusting [B], the switch compartment must be opened for mechanical position
indication adjustment when commissioning.

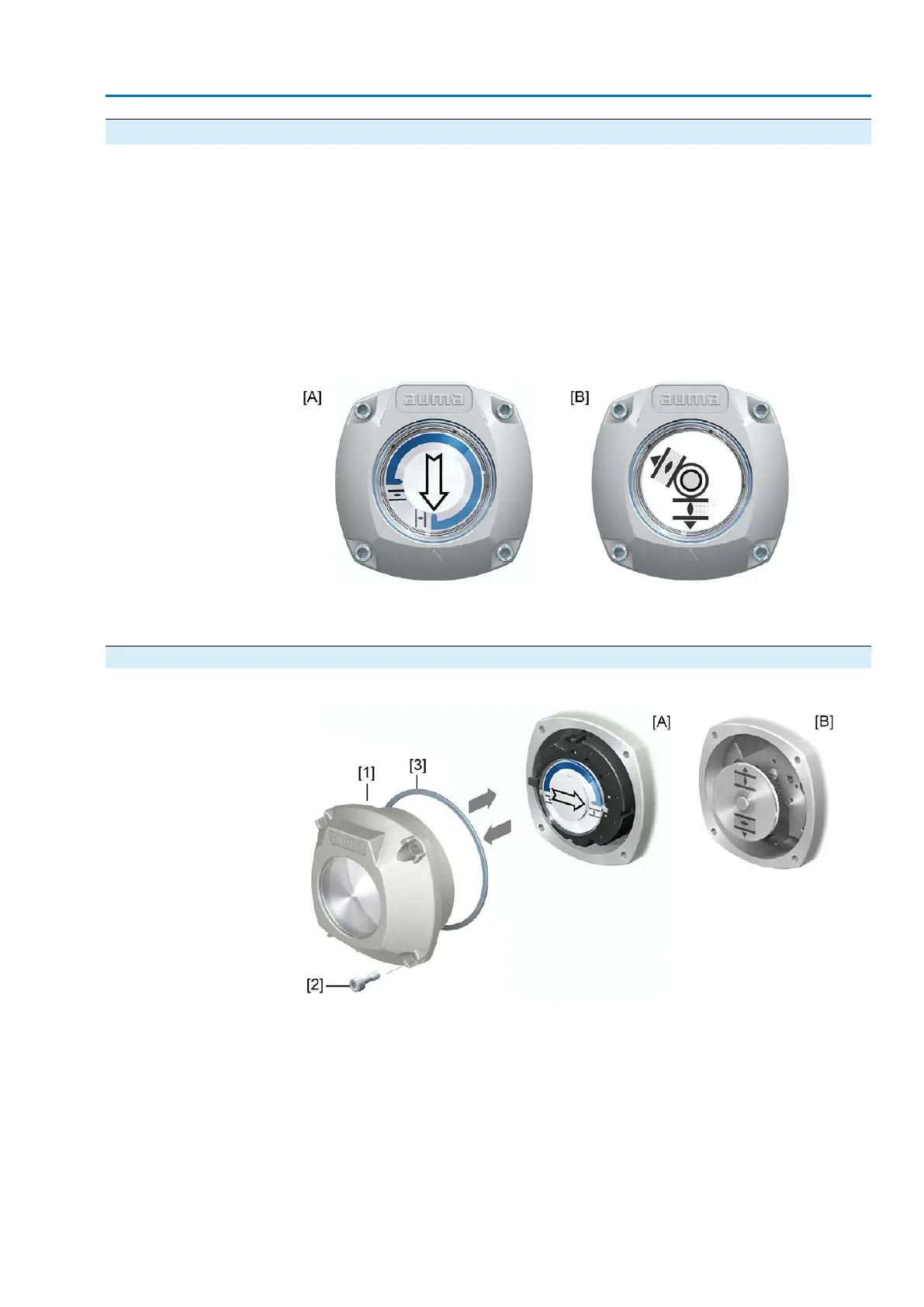

Figure 79: Mechanical position indicators
[A] Mechanical position indicator (self-adjusting)
[B] Mechanical position indicator via indicator mark (not self-adjusting)
10.1. Switch compartment: open/close
Figure 80: Open/close switch compartment
[A] Mechanical position indication (self-adjusting)
[B] Mechanical position indication via indicator mark
