5.6. Accessories for electrical connection
5.6.1. Actuator controls on wall bracket

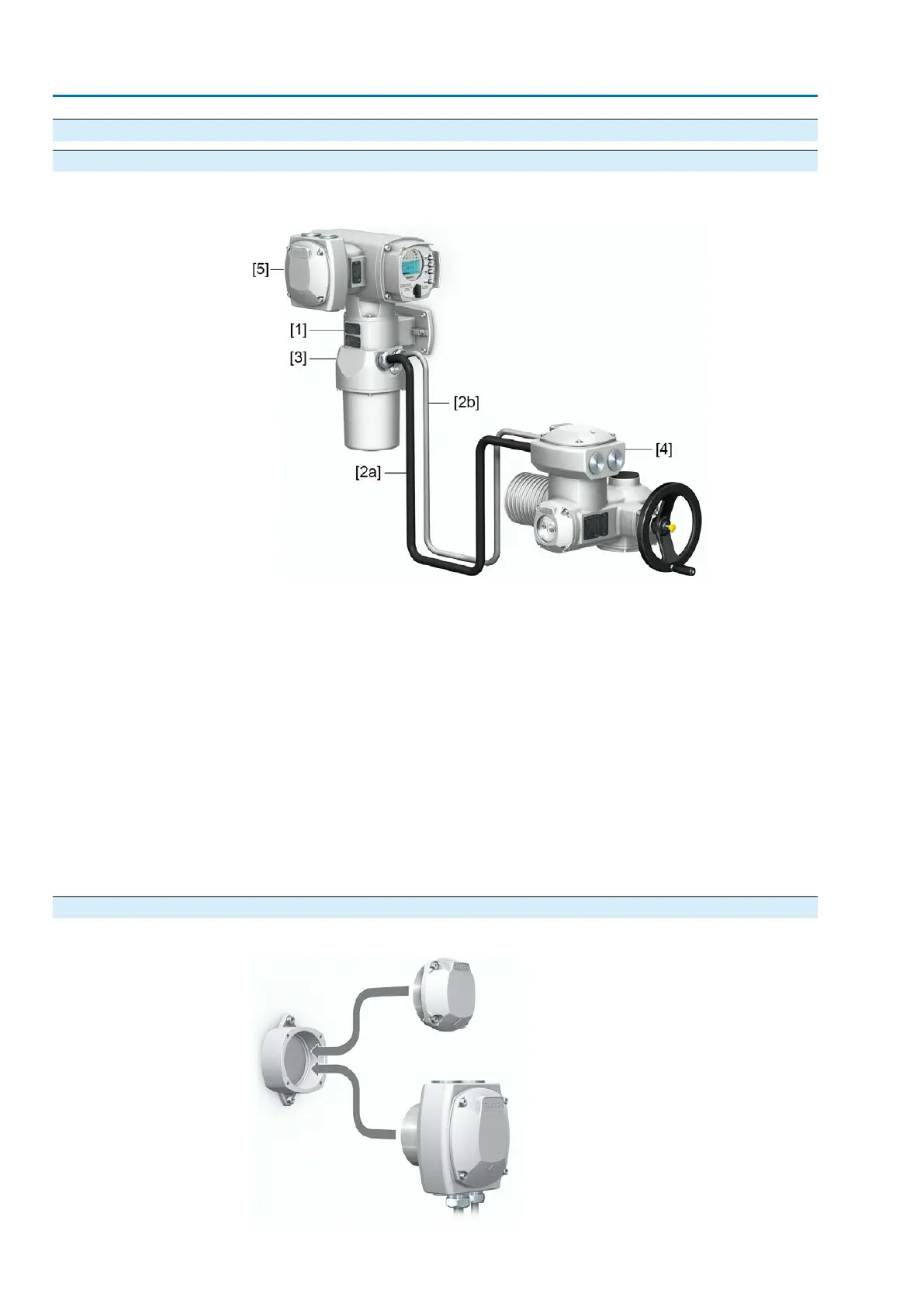

Design principle Figure 42: Design principle with wall bracket
[1] Wall bracket
[2] Connecting cables
[3] Electrical connection of wall bracket
[4] Electrical connection of actuator (XA)
[5] Electrical connection of actuator controls (XK) - customer plug
Application
The wall bracket allows separate mounting of actuator controls and actuator.
●
If the actuator cannot be accessed safely.
●
If the actuator is subjected to high temperatures.
●
In case of heavy vibration of the valve.
Observe prior to connec-
tion
●
Permissible length of connecting cables: max. 16 m.
Longer cables require an external filter (available on request)
●
We recommend using an AUMA “LSW” cable set.
5.6.2. Parking frame
Figure 43: Parking frame, example with Ex plug/socket connector and cover
