Table 12:Transmission rate/cable length for line topology
Possible cable length with repeater
(total network cable length)
Max. cable length (segment length)
without repeater
Baud rate (kbit/s)
Approx. 10 km1,200 m9.6 – 115.2
Table 13:Transmission rate/cable length for loop topology
Max. possible cable length of redund-
ant loop
Max. cable length between actuators
(without repeater)
Baud rate (kbit/s)
Approx. 290 km1,200 m9.6 – 115.2
5.2. KP/KPH electrical connection

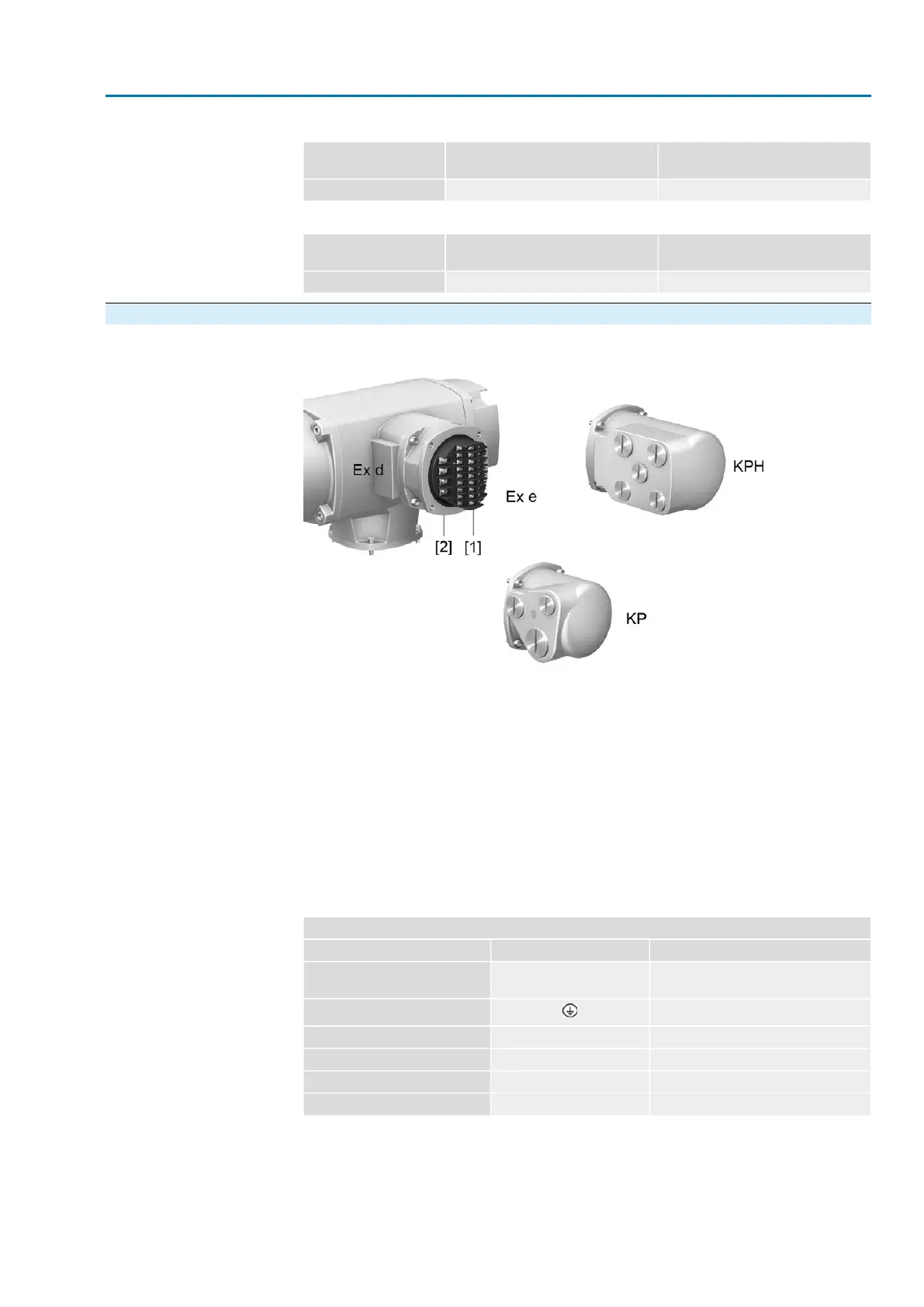

Figure 19: KP and KPH electrical connection
[1] Screw-type terminals
[2] Plug-in frame (flameproof)
Short description
KP/KPH plug-in electrical connection with screw-type terminals for power and control
contacts.
KP version (standard) with three cable entries. KPH version (enlarged) with additional
cable entries. Cable entries via the cover.
The terminal compartment (with screw-type terminals) is designed in protection type
Ex e (increased safety). Plug-in connection is made via the frame. Removing the
cover is sufficient for connecting the cables.The flameproof frame remains connected
to the device.The flameproof interior of the connected device remains sealed.
Technical data
Table 14:
KP/KPH electrical connection
Control contactsPower contacts
38 pins/sockets + protective earth con-
ductor (PE)
3 + protective earth conduct-
or (PE)
No. of contacts max.
1 to 24, 31 to 40, 47 to 50, PE
U1, V1, W1, (PE)
Designations
250 V525 VConnection voltage max.
10 A25 ARated current max.
Screw connectionScrew connectionType of customer connection
1.5 mm
2
6 mm
2
Connection diameter max.
27
SAVEx 07.2 – SAVEx 16.2 / SARVEx 07.2 – SARVEx 16.2 Control unit: electronic (MWG)
ACVExC 01.2 Non-Intrusive Modbus RTU Electrical connection
