Operating manual Ruby EN 9 | Installation
25

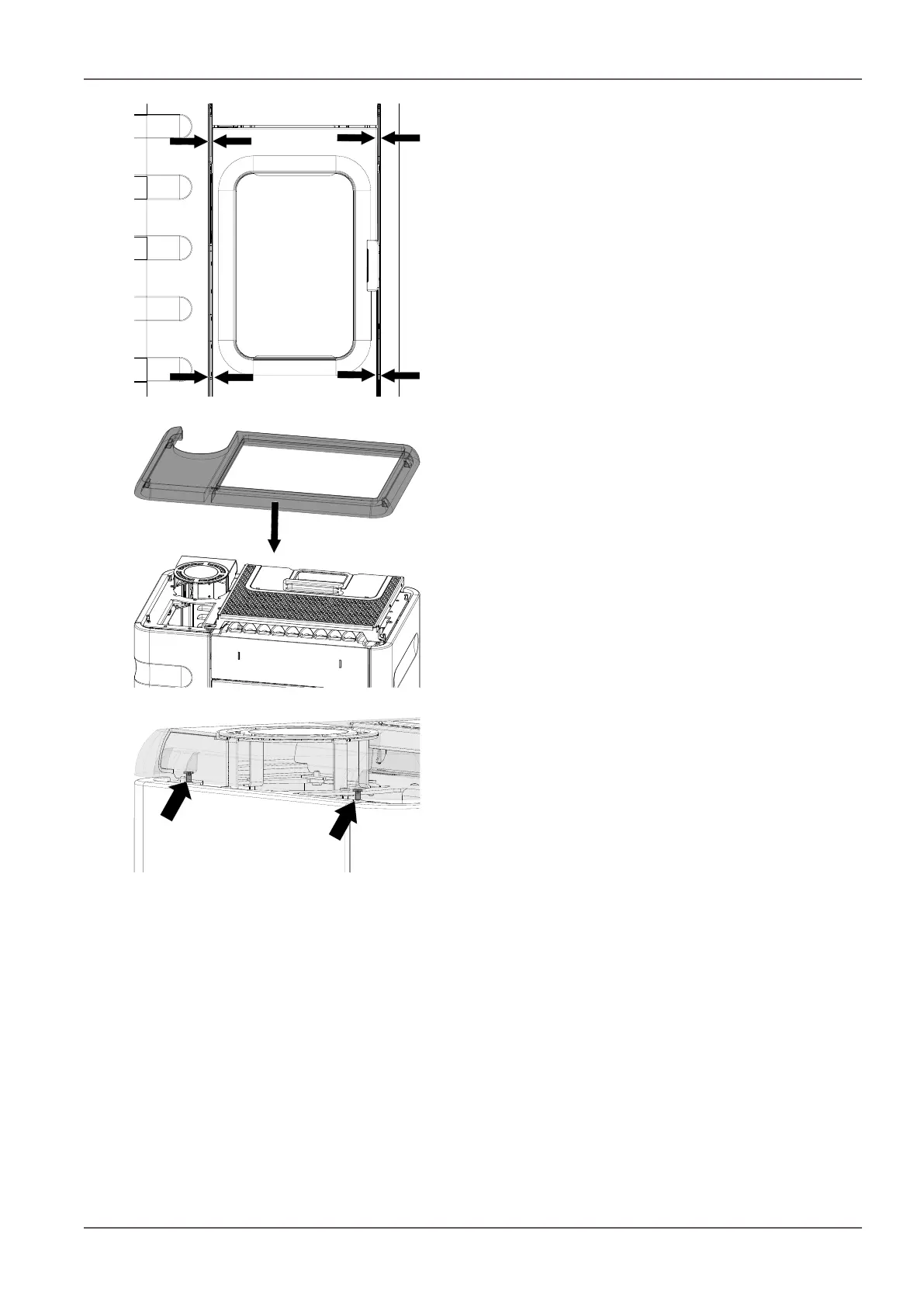

Fig.15: Adjusting the distance
14) The ceramic cladding should be at the same distance
on all sides. Otherwise it must be adjusted with the
grub screw.
Fig.16: Attaching the cover
15) Attach cover.
Fig.17: Adjusting the lid
16) These screws (left and right) can be used to adjust the
distance from the lid.
