Operating manual Ruby EN 13 | Adjustments
51

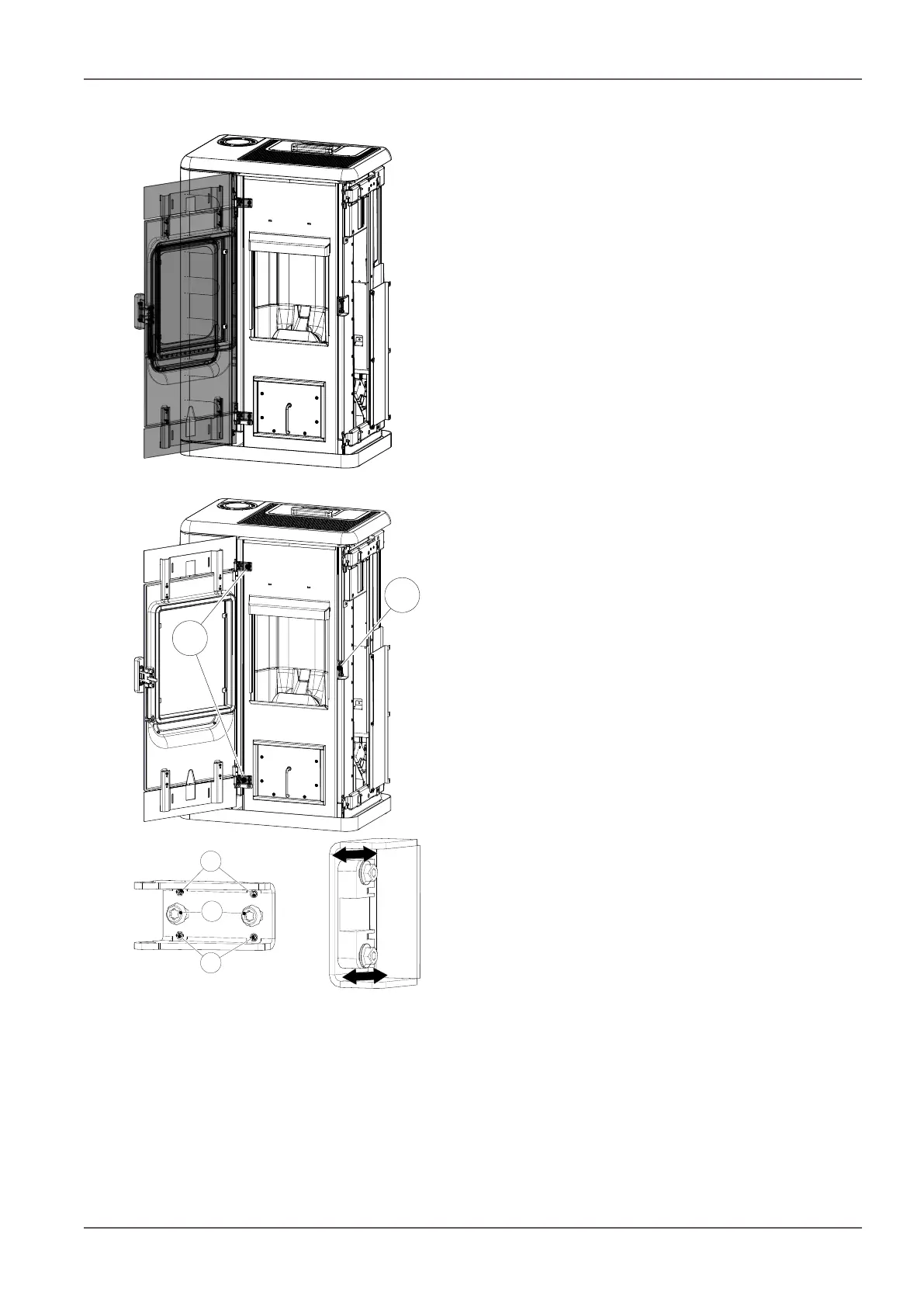

13.19 Adjusting the firebox door
Fig.66: Opening the door
1) Open the door.
1
2
B
B
A
Fig.67: Adjusting the firebox door
2) The hinges (1) can be adjusted with the marked
screws A + B.
ð A: left/right
ð B: forwards/backwards
3) The snap (2) can be adjusted forwards and backwards
at the springs.
